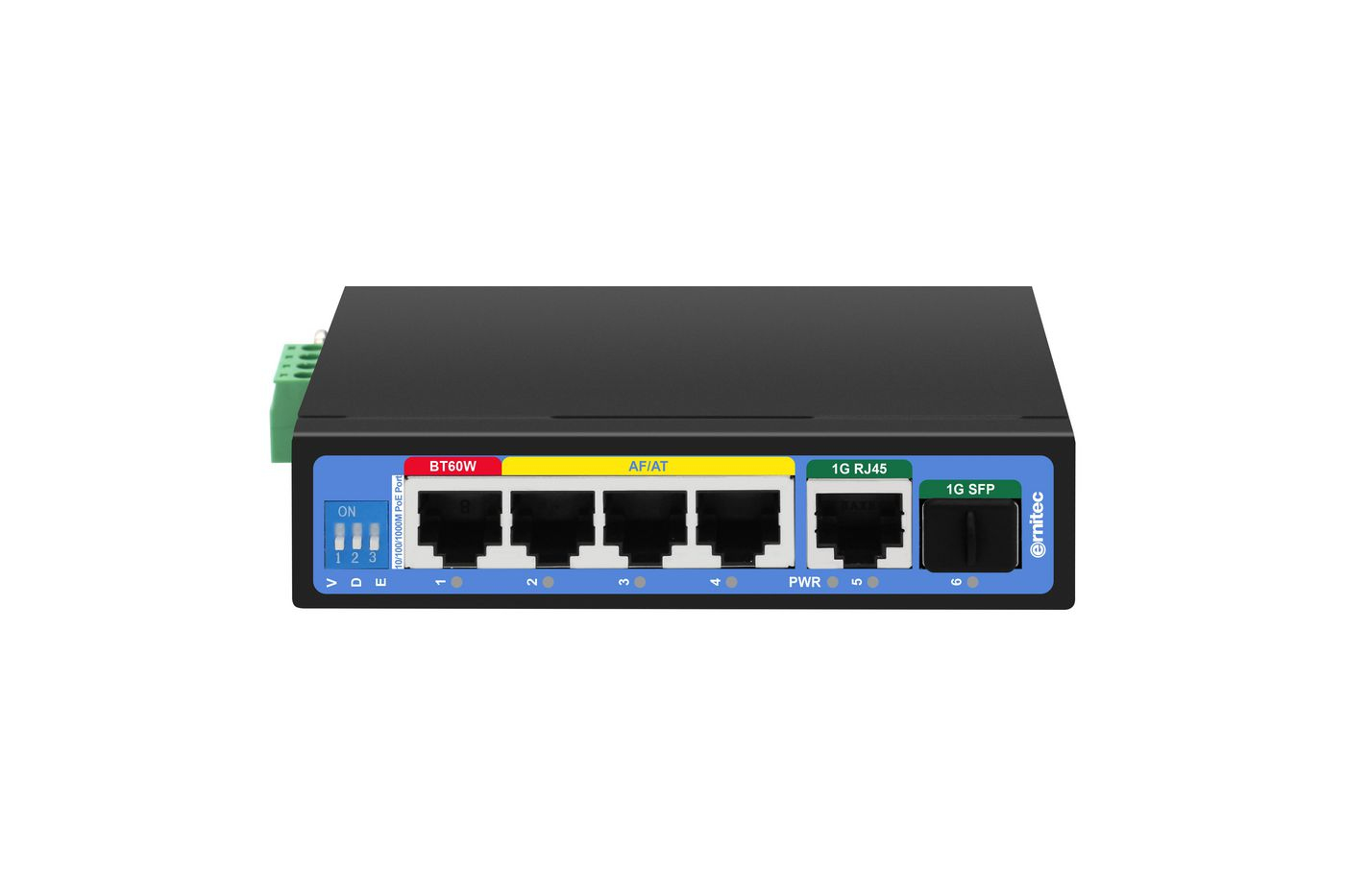

ELECTRA-U06-1GB network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
Model ELECTRA-U06-1GBEAN 5715063544204
37 specifications
- Weight441 g
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity4
- Networking standardsIEEE 802.3u
- MAC address table2000 entries
- Housing materialMetal
Overview
- Weight
- 441 g
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 4
- Networking standards
- IEEE 802.3u
- MAC address table
- 2000 entries
- Housing material
- Metal
- Brand
- Ernitec
- Category
- Network Switch
- Model
- ELECTRA-U06-1GB
- Part number
- ELECTRA-U06-1GB
- EAN / UPC
- 5715063544204
- Also known as
- Ernitec ELECTRA-U06-1GB network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
Specifications
37 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 1 |
| SFP module slots quantity | 1 |
| Uplink ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3u |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 12 Gbit/s |
| Forwarding rate | 8.928 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Packet forwarding | Yes |
Design
| Specification | Value |
|---|---|
| Housing material | Metal |
| Reset button | Yes |
| LED indicators | PoE |
| On/off switch | Yes |
Performance
| Specification | Value |
|---|---|
| Fanless | Yes |
Power
| Specification | Value |
|---|---|
| Surge protection | Yes |
| Surge protection voltage | 4 kV |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Total Power over Ethernet (PoE) budget | 120 W |
Other features
| Specification | Value |
|---|---|
| Material | Metal |
| Warranty period | 5 year(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 175 mm |
| Depth | 130 mm |
| Height | 55 mm |
| Weight | 441 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Package width | 175 mm |
| Package depth | 130 mm |
| Package height | 55 mm |
| Package weight | 530 g |
