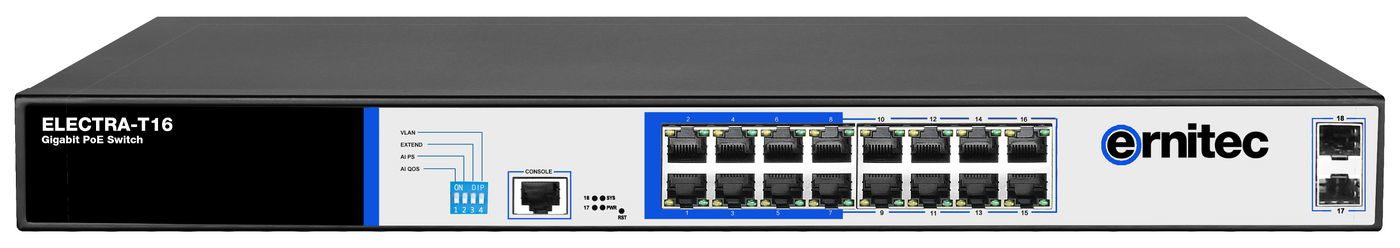

ELECTRA-T16 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Model ELECTRA-T16EAN 5704174017493
81 specifications
- Type1U
- Weight6.2 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity16
- 10G supportNo
Overview
- Type
- 1U
- Weight
- 6.2 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 16
- 10G support
- No
- Brand
- Ernitec
- Category
- Network Switch
- Model
- ELECTRA-T16
- Part number
- ELECTRA-T16
- EAN / UPC
- 5704174017493
- Also known as
- Ernitec ELECTRA-T16 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Specifications
81 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Installed SFP modules quantity | 2 |
| Installed SFP+ modules quantity | 0 |
| Console port | RJ-45 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Auto-sensing | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Fast leave | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | IP subnet–based VLAN, MAC address-based VLAN, Voice VLAN |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 36 Gbit/s |
| Forwarding rate | 23.8 Mpps |
| Store-and-forward | Yes |
| Static route | Yes |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
| Loop protection | Yes |
| MAC address entries | Dynamic MAC address entries, Static MAC address entries |
| Password protection | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IPv4 & IPv6 features | IPv6 Telnet, IPv6 ping, IPv6 tracert |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | No |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| Reset button | Yes |
| LED indicators | Activity, Link, PoE, System |
| Wall mountable | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Surge protection voltage | 6 kV |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 46 W |
| Total Power over Ethernet (PoE) budget | 250 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 440 mm |
| Height | 44 mm |
| Weight | 6.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 486 mm |
| Package depth | 265 mm |
| Package height | 82 mm |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, IC |
