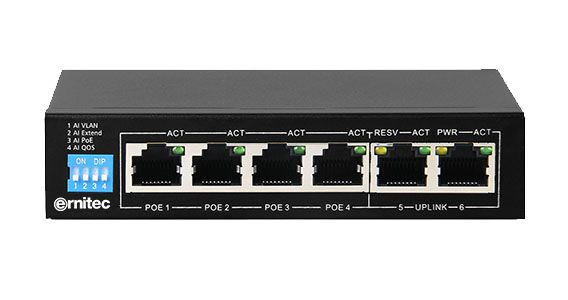

ELECTRA T04
Model ELECTRA T04Part no. ELECTRA-T04EAN 5704174017479
47 specifications
- ConnectivityWired
- Type1U
- Weight200 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity6
Overview
- Connectivity
- Wired
- Type
- 1U
- Weight
- 200 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 6
- Brand
- Ernitec
- Category
- Network Switch
- Model
- ELECTRA T04
- Part number
- ELECTRA-T04
- EAN / UPC
- 5704174017479
- Also known as
- Ernitec ELECTRA T04 Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Specifications
47 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3 |
| 10G support | No |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 12 Gbit/s |
| Forwarding rate | 1000 Mpps |
| Store-and-forward | Yes |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (10 Mbps) | 14800 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | Yes |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 60 W |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 75 x 125 x 27 mm |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 6 |
| Ethernet interface type | Gigabit Ethernet |
| Interface | RJ45 |
| Warranty period | 2 year(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 70 mm |
| Height | 30 mm |
| Weight | 200 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 221 mm |
| Package depth | 208 mm |
| Package height | 53 mm |
| Package weight | 738 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CCC, CE, Federal Communications Commission (FCC), RoHS |
