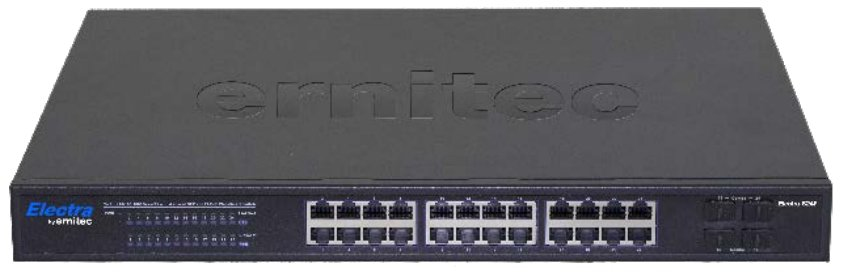

Ernitec ELECTRA-S-24F Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Model ELECTRA-S-24FPart no. ELECTRA-S24FEAN 5711783194187
31 specifications
- Type1U
- Weight4.5 kg
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
Overview
- Type
- 1U
- Weight
- 4.5 kg
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- Brand
- Ernitec
- Category
- Network Switch
- Model
- ELECTRA-S-24F
- Part number
- ELECTRA-S24F
- EAN / UPC
- 5711783194187
- Also known as
- Ernitec ELECTRA-S-24F Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Specifications
31 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| Fiber optic connector | SFP |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-TX |
| Cable types supported | Cat5, Cat5e |
| Full duplex | Yes |
| Flow control support | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Transmission distance (max) | 20 km |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 52 Gbit/s |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 48 V |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 500 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 20 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE |
