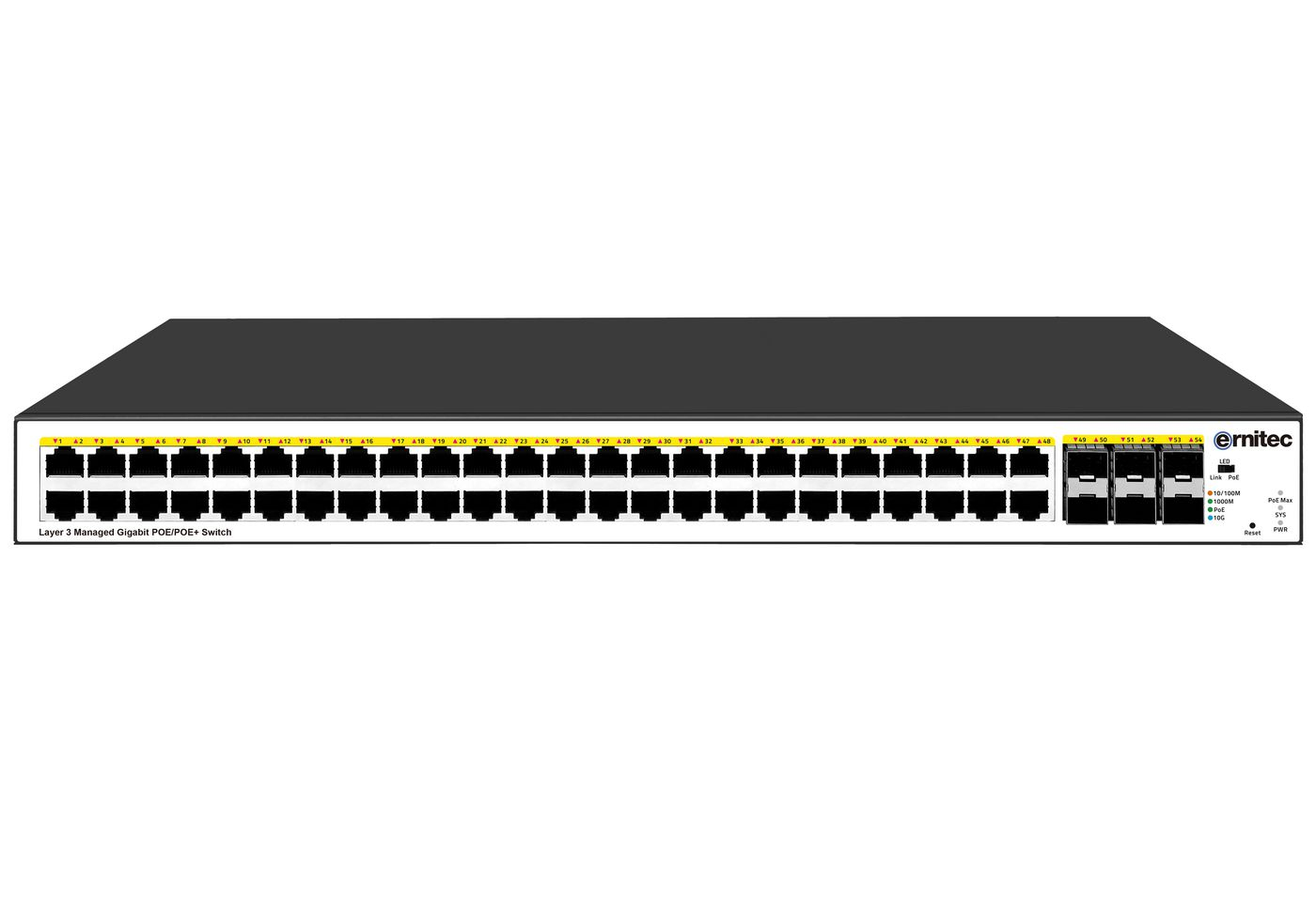

ELECTRA-M248-1GB-900W network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Model ELECTRA-M248-1GB-900WEAN 5715328213227
54 specifications
- Weight5.9 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
- Networking standardsIEEE 802.3
- MAC address table32000 entries
Overview
- Weight
- 5.9 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Networking standards
- IEEE 802.3
- MAC address table
- 32000 entries
- Brand
- Ernitec
- Category
- Network Switch
- Model
- ELECTRA-M248-1GB-900W
- Part number
- ELECTRA-M248-1GB-900W
- EAN / UPC
- 5715328213227
- Also known as
- Ernitec ELECTRA-M248-1GB-900W network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Specifications
54 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 6 |
| Installed SFP+ modules quantity | 6 |
| SFP/SFP+ slots quantity | 6 |
| Number of management ports | 54 pc(s) |
| Console port | RJ-45 |
| Power connector | AC/DC |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3 |
| 10G support | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 216 Gbit/s |
| Forwarding rate | 160.76 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
Security
| Specification | Value |
|---|---|
| MAC address entries | Dynamic MAC address entries |
| MAC address filtering | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| Reset button | Yes |
| LED indicators | Power |
| Number of fans | 4 fan(s) |
Performance
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
| Telnet | Yes |
| Fanless | No |
Power
| Specification | Value |
|---|---|
| AC input frequency | 50/60 Hz |
| Surge protection | Yes |
| Surge protection voltage | 6 kV |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 48 |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Total Power over Ethernet (PoE) budget | 900 W |
Other features
| Specification | Value |
|---|---|
| Material | Metal |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 580 mm |
| Depth | 440 mm |
| Height | 120 mm |
| Weight | 5.9 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Package width | 580 mm |
| Package depth | 440 mm |
| Package height | 120 mm |
| Package weight | 7.19 kg |
