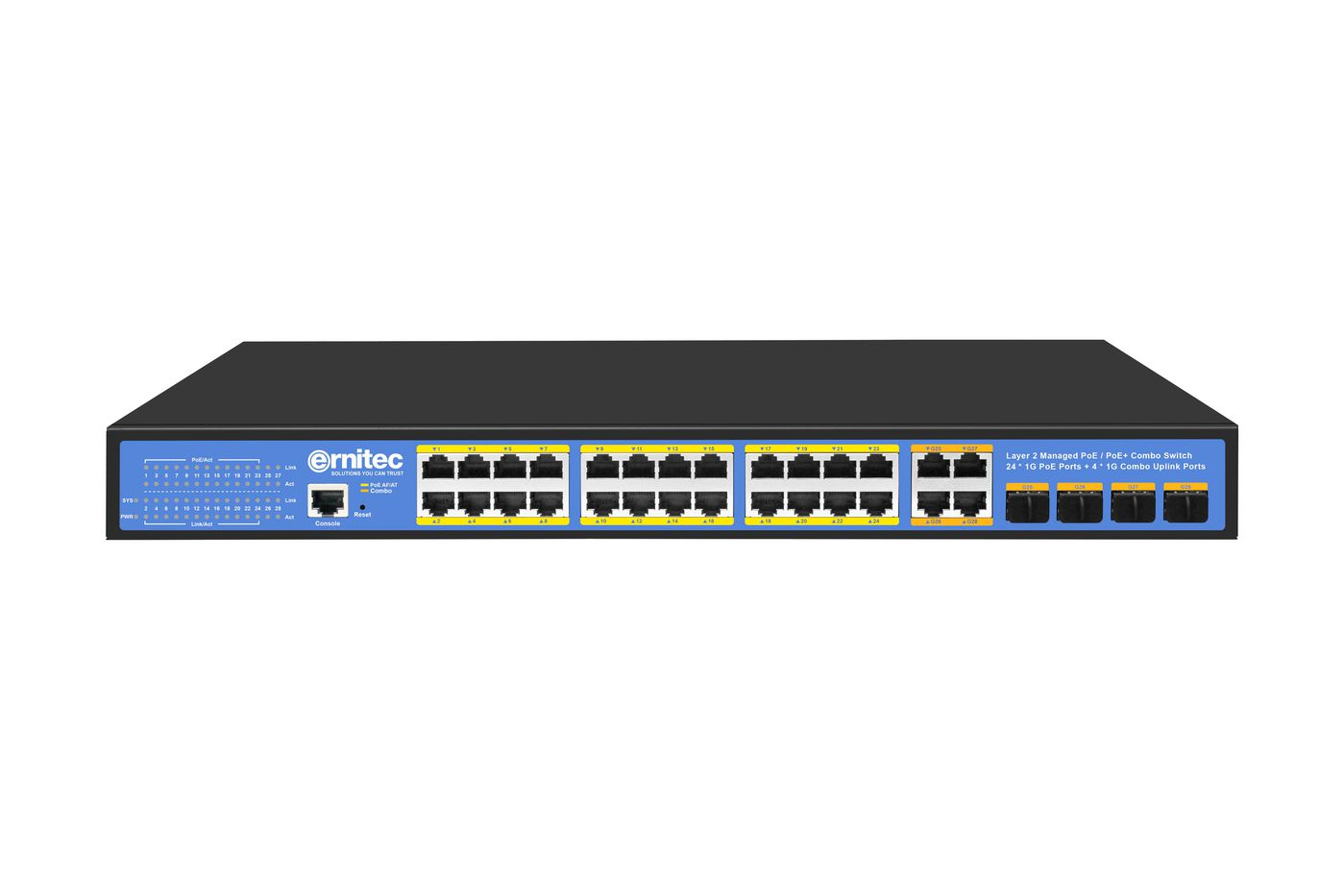

ELECTRA-M224-1GB-370W network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
Model ELECTRA-M224-1GB-370WEAN 5715063507773
47 specifications
- Weight3.65 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- Networking standardsIEEE 802.3u
- MAC address table8000 entries
- Rack mountingYes
Overview
- Weight
- 3.65 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Networking standards
- IEEE 802.3u
- MAC address table
- 8000 entries
- Rack mounting
- Yes
- Brand
- Ernitec
- Category
- Network Switch
- Model
- ELECTRA-M224-1GB-370W
- Part number
- ELECTRA-M224-1GB-370W
- EAN / UPC
- 5715063507773
- Also known as
- Ernitec ELECTRA-M224-1GB-370W network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
Specifications
47 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L2+ |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| Number of management ports | 32 pc(s) |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3u |
| Full duplex | Yes |
| Half duplex | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Number of VLANs | 256 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 56 Gbit/s |
| Jumbo frames support | Yes |
| Packet forwarding | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Housing material | Metal |
| Reset button | Yes |
| LED indicators | Data |
| Number of fans | 0 fan(s) |
| On/off switch | No |
Performance
| Specification | Value |
|---|---|
| Telnet | Yes |
| Fanless | Yes |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet plus (PoE+) ports quantity | 15 |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Total Power over Ethernet (PoE) budget | 370 W |
Other features
| Specification | Value |
|---|---|
| Material | Metal |
| Warranty period | 5 year(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 500 mm |
| Depth | 365 mm |
| Height | 85 mm |
| Weight | 3.65 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Screws included | Yes |
| Package width | 500 mm |
| Package depth | 365 mm |
| Package height | 85 mm |
| Package weight | 4.72 kg |
