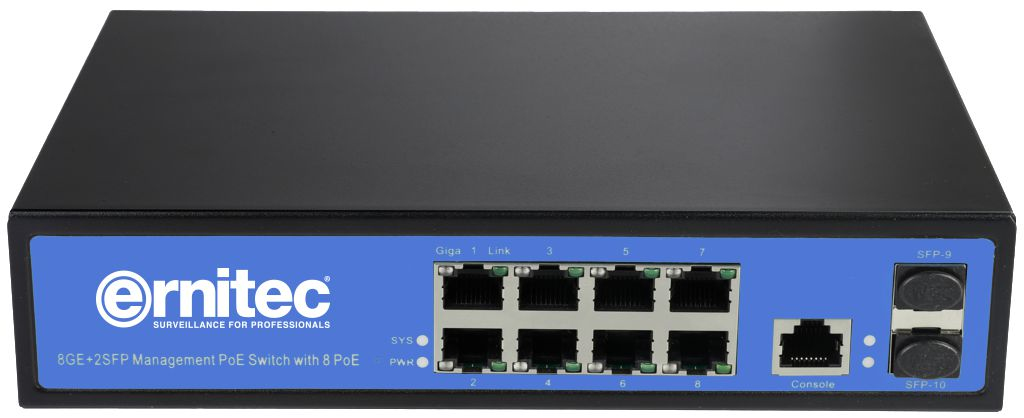

Ernitec Managed Layer 2, 8 Gigabit RJ45 ports, 2 Gigabit SFP ports

Managed Layer 2, 8 Gigabit RJ45 ports, 2 Gigabit SFP ports

Model ELECTRA-M08EAN 5715063037041

77 specifications

Weight400 g
ColourBlack, Blue
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity8
10G supportNo
Fiber ethernet cabling technology1000BASE-X

See all specifications

Overview

Weight: 400 g
Colour: Black, Blue
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 8
10G support: No
Fiber ethernet cabling technology: 1000BASE-X

Brand: Ernitec
Category: Network Switch
Model: ELECTRA-M08
Part number: ELECTRA-M08
EAN / UPC: 5715063037041
Also known as: Ernitec Managed Layer 2, 8 Gigabit RJ45 ports, 2 Gigabit SFP ports

Specifications

77 specifications in 19 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Cloud-managed	Yes
Web-based management	Yes
ARP inspection	Yes
System event log	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Fiber ports quantity	2
Fiber optic connector	SFP
Console port	RJ-45
Power connector	AC/DC

Network

Specification	Value
Networking standards	IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3af, IEEE 802.1p, IEEE 802.1s, IEEE 802.3u, IEEE 802.3at, IEEE 802.1D, IEEE 802.3z, IEEE 802.1w, IEEE 802.1x
10G support	No
Copper ethernet cabling technology	1000BASE-T
Port mirroring	Yes
Broadcast storm control	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Protocol-based VLAN, MAC address-based VLAN, Voice VLAN, Tagged VLAN
Number of VLANs	4000

Optical fiber

Specification	Value
Fiber ethernet cabling technology	1000BASE-X

Data transmission

Specification	Value
MAC address table	8000 entries
Switching capacity	20 Gbit/s
Forwarding rate	14.9 Mpps
Store-and-forward	Yes
Jumbo frames support	No
Packet buffer memory	4 MB

Security

Specification	Value
DHCP features	DHCP client, DHCP snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication	Port-based authentication
Authentication type	AAA, RADIUS, IEEE 802.1x, TACACS+
IP-MAC-Port binding	Yes
Loop protection	Yes
MAC address filtering	Yes
Password protection	Yes
Queue scheduling algorithms	SP, WFQ, Weighted Round Robin (WRR)
Security algorithms	SSH, SSH-2, 802.1x RADIUS, SNMP, SNMPv2, SNMPv3

Multicast features

Specification	Value
Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	Yes

Protocols

Specification	Value
Management protocols	Command Line Interface (CLI) through console port, telnet and SSH; Trap/Inform RMON (1, 2, 3, 9) groups; SNTP; Traceroute; Ping; BOOTP Client
IPv4 & IPv6 features	Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 tracert

Design

Specification	Value
Rack mounting	Yes
Product colour	Black, Blue
LED indicators	Yes

Performance

Specification	Value
Firmware upgradeable	Yes
Fanless	Yes

Power

Specification	Value
Power source	AC/DC/PoE
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
DC input voltage	48 - 55 V

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	8
Power over Ethernet plus (PoE+) ports quantity	5
Power over Ethernet (PoE) power per port	18.75 W
Total Power over Ethernet (PoE) budget	150 W

Other features

Specification	Value
Warranty period	5 year(s)

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Specification	Value
Width	210 mm
Depth	140 mm
Height	45 mm
Weight	400 g

Packaging content

Specification	Value
Cables included	AC
Rack mount kit	Yes
User guide	Yes

Packaging data

Specification	Value
Package weight	800 g

Sustainability

Specification	Value
Sustainability compliance	Yes

Certificates

Specification	Value
Compliance certificates	UKCA, CE, RoHS, Federal Communications Commission (FCC)
