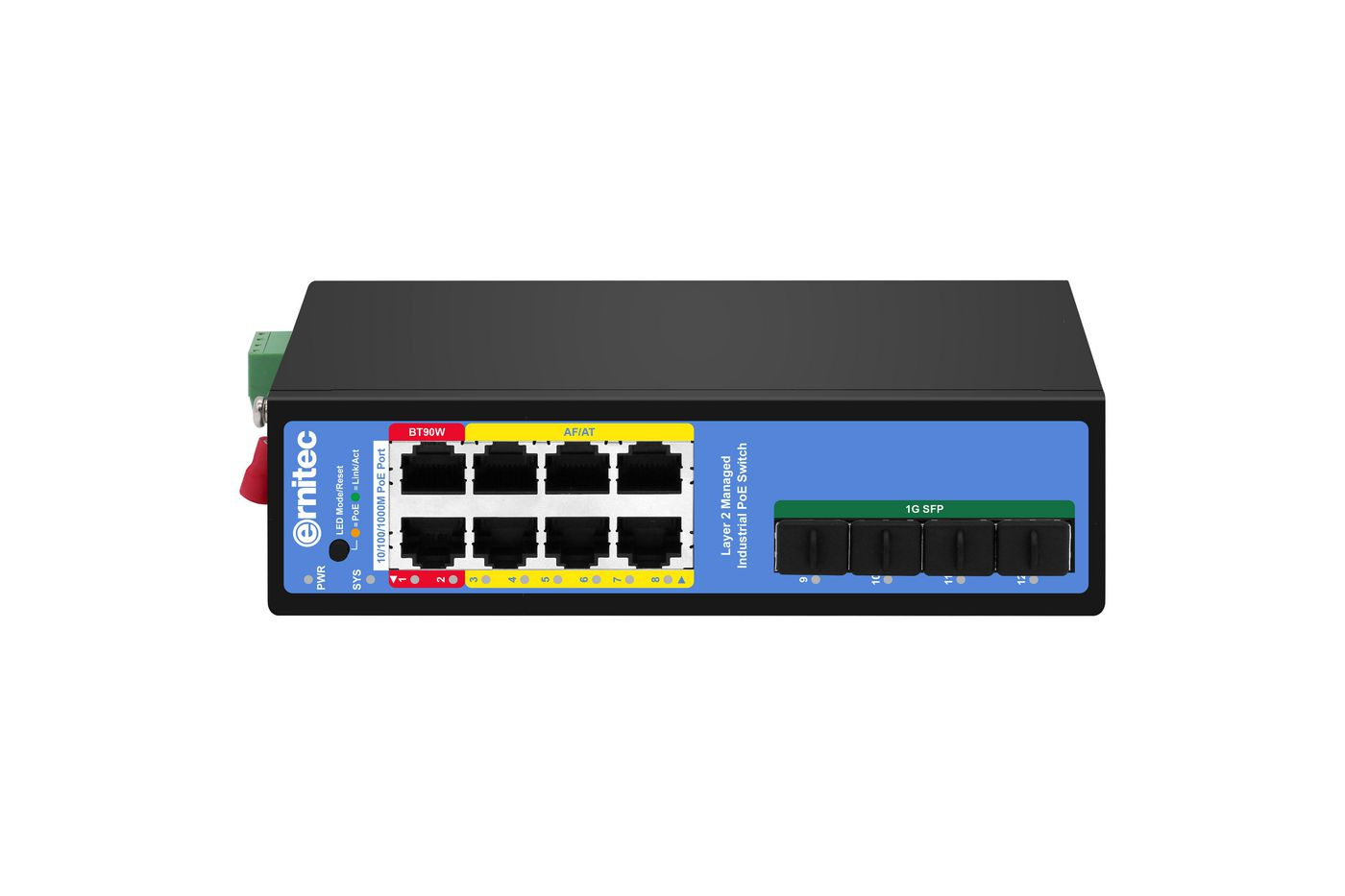

ELECTRA-IM08-1GB network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
Model ELECTRA-IM08-1GBEAN 5715063543818
47 specifications
- Weight880 g
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- Networking standardsIEEE 802.3u
- MAC address table8000 entries
- Housing materialMetal
Overview
- Weight
- 880 g
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Networking standards
- IEEE 802.3u
- MAC address table
- 8000 entries
- Housing material
- Metal
- Brand
- Ernitec
- Category
- Network Switch
- Model
- ELECTRA-IM08-1GB
- Part number
- ELECTRA-IM08-1GB
- EAN / UPC
- 5715063543818
- Also known as
- Ernitec ELECTRA-IM08-1GB network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
Specifications
47 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L2+ |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| Uplink ports quantity | 4 |
| Fiber uplink ports quantity | 4 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3u |
| Port mirroring | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Number of VLANs | 256 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 24 Gbit/s |
| Forwarding rate | 17.85 Mpps |
| Store-and-forward | Yes |
| Static route | Yes |
| Jumbo frames support | Yes |
Design
| Specification | Value |
|---|---|
| Housing material | Metal |
| Reset button | Yes |
| LED indicators | PoE |
| On/off switch | Yes |
Performance
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
| Telnet | Yes |
| Fanless | Yes |
Power
| Specification | Value |
|---|---|
| Surge protection | Yes |
| Surge protection voltage | 6 kV |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 15.4 W |
Other features
| Specification | Value |
|---|---|
| Material | Metal |
| Warranty period | 5 year(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 190 mm |
| Depth | 245 mm |
| Height | 60 mm |
| Weight | 880 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Package width | 190 mm |
| Package depth | 245 mm |
| Package height | 60 mm |
| Package weight | 1.06 kg |
