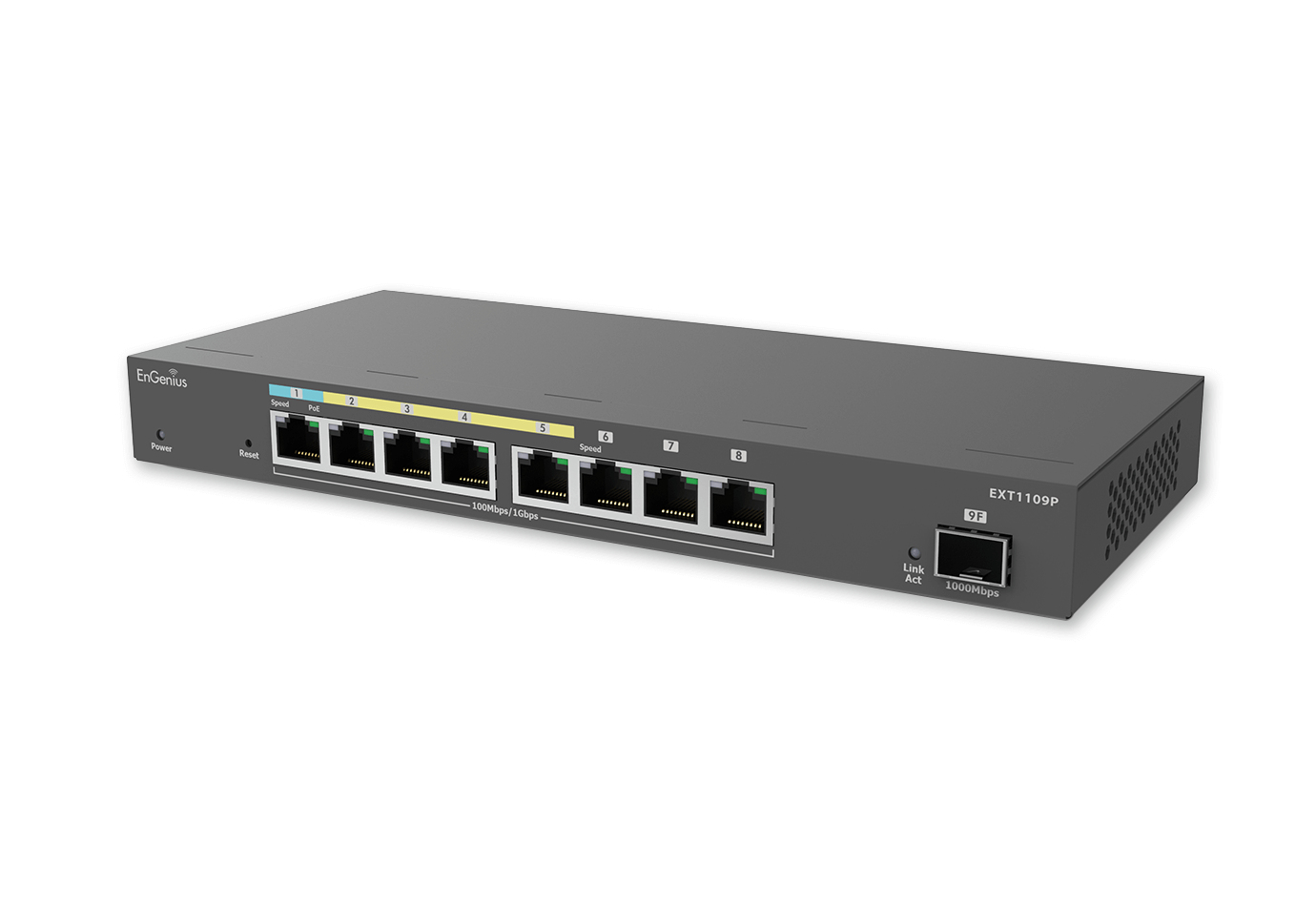

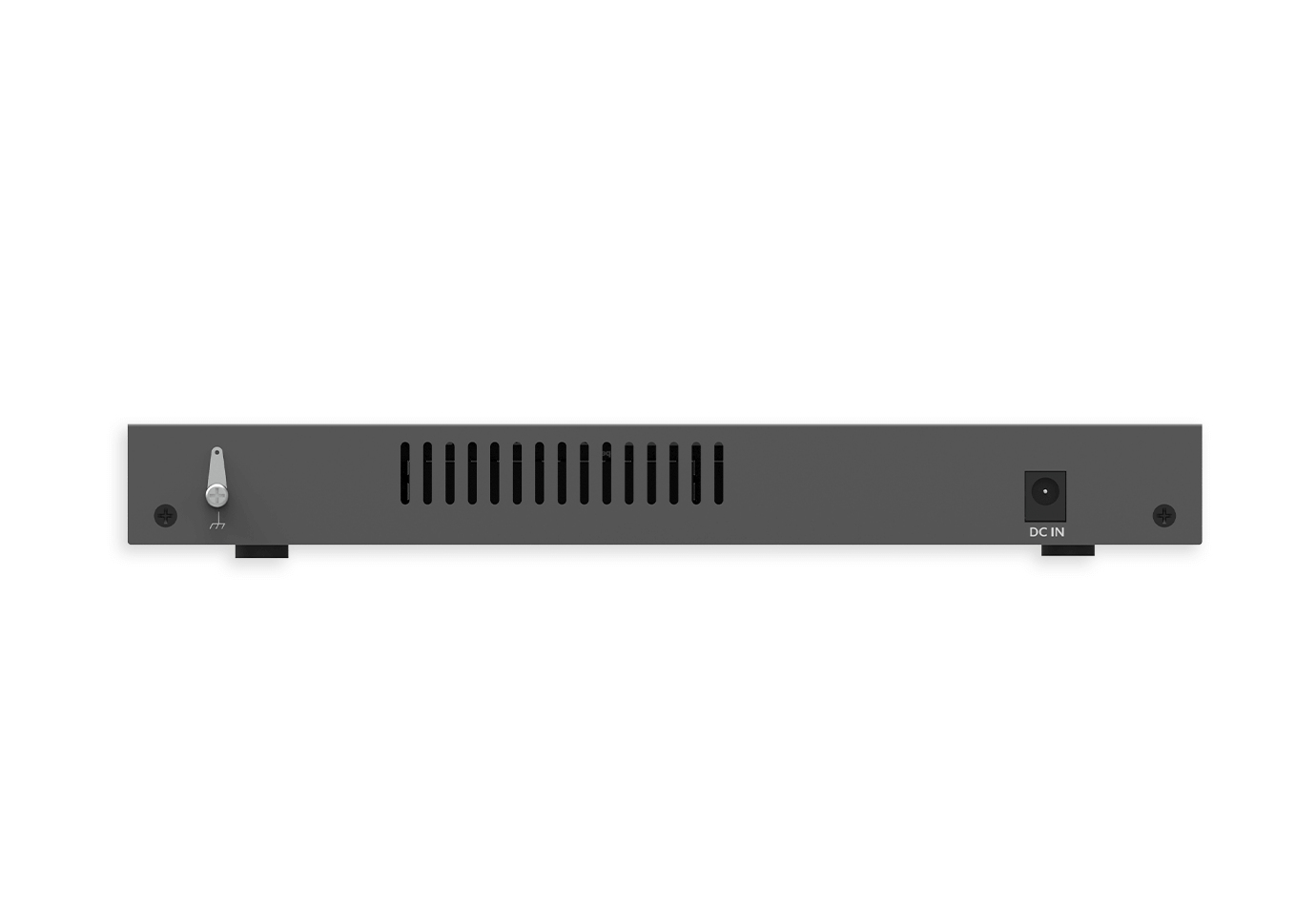

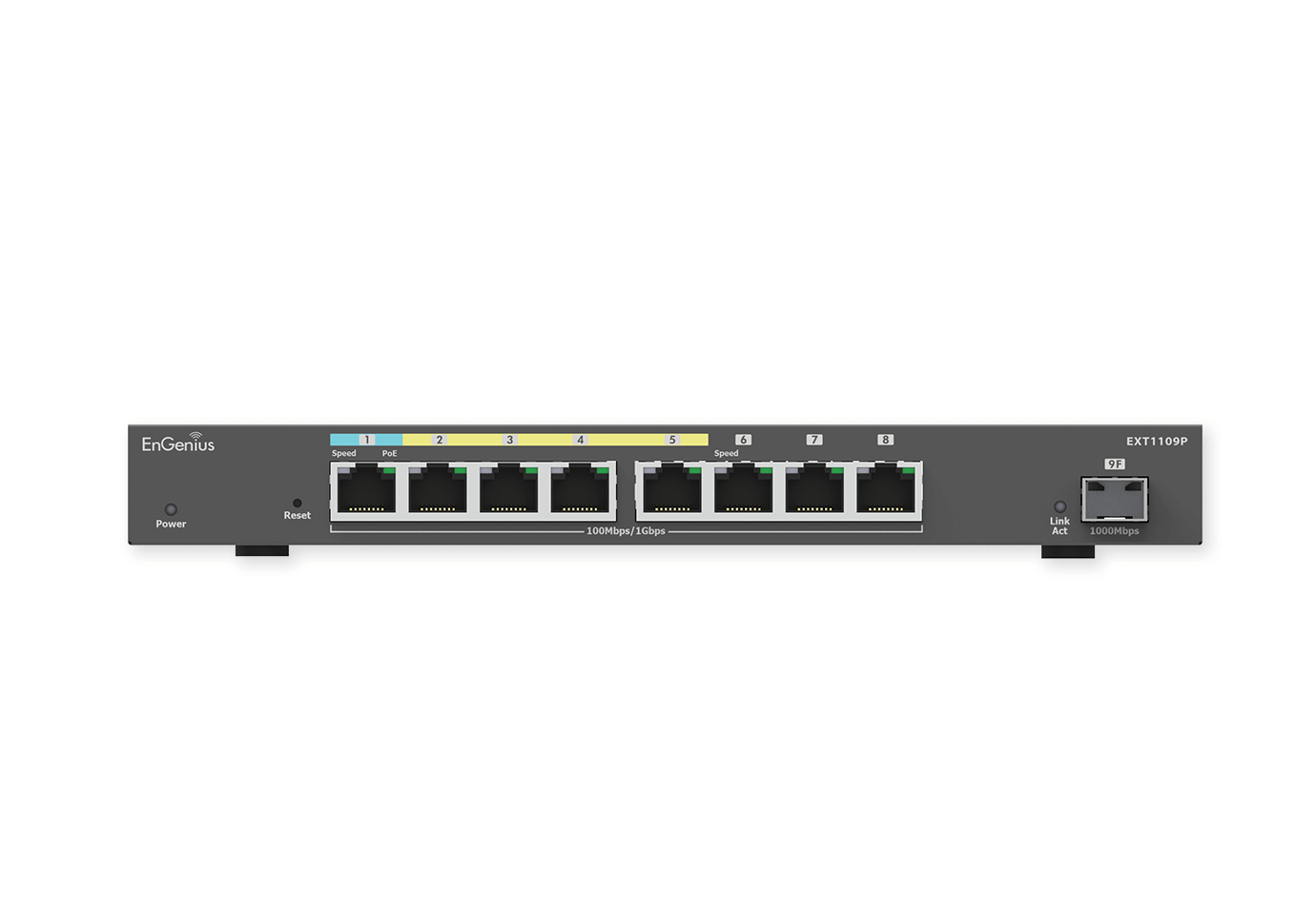

Managed Switch extender, smart , 9-port GbE , af/at/bt, PoE power depends on PD port power
Model EXT1109PEAN 655216011335
51 specifications
- Weight620 g
- ColourGrey
- Switch layerL2
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table8000 entries
Overview
- Weight
- 620 g
- Colour
- Grey
- Switch layer
- L2
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 8000 entries
- Brand
- EnGenius
- Category
- Network Switch
- Model
- EXT1109P
- Part number
- EXT1109P
- EAN / UPC
- 655216011335, 4711488350100
- Also known as
- EnGenius Managed Switch extender, smart , 9-port GbE , af/at/bt, PoE power depends on PD port power
Specifications
51 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 1000BASE-T |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Voice VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 18 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Grey |
| LED indicators | Activity, Link, PoE, Power |
Performance
| Specification | Value |
|---|---|
| Flash memory | 32 MB |
Power
| Specification | Value |
|---|---|
| Power source | DC/PoE |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 5 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 90 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 105 mm |
| Depth | 240 mm |
| Height | 27 mm |
| Weight | 620 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 270 mm |
| Package depth | 166 mm |
| Package height | 84 mm |
| Package weight | 1.1 kg |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case net weight | 11 kg |
| Master (outer) case width | 357 mm |
| Master (outer) case length | 452 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 271 mm |
| Master (outer) case gross weight | 11.8 kg |
| Products per master (outer) case | 10 pc(s) |
