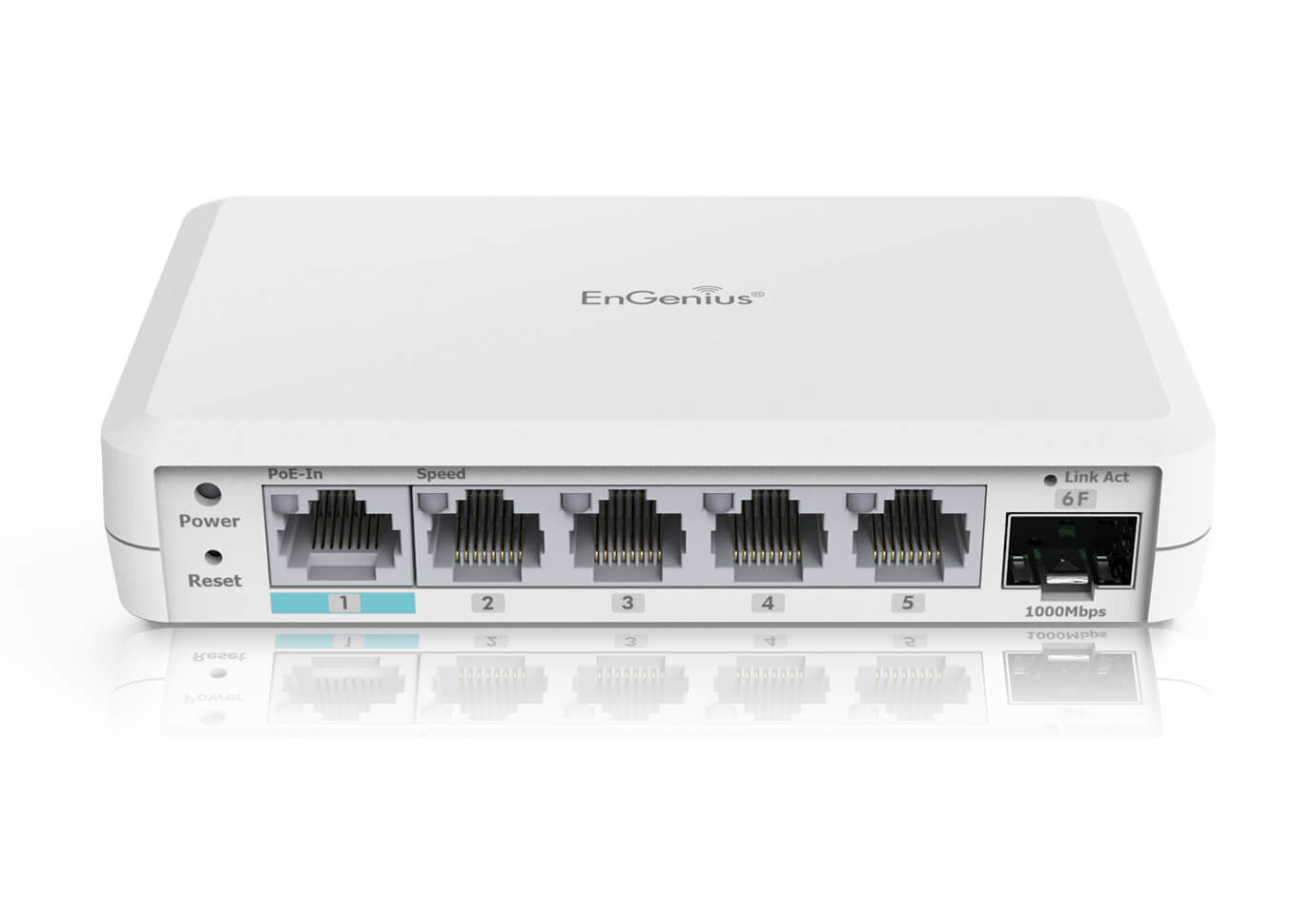

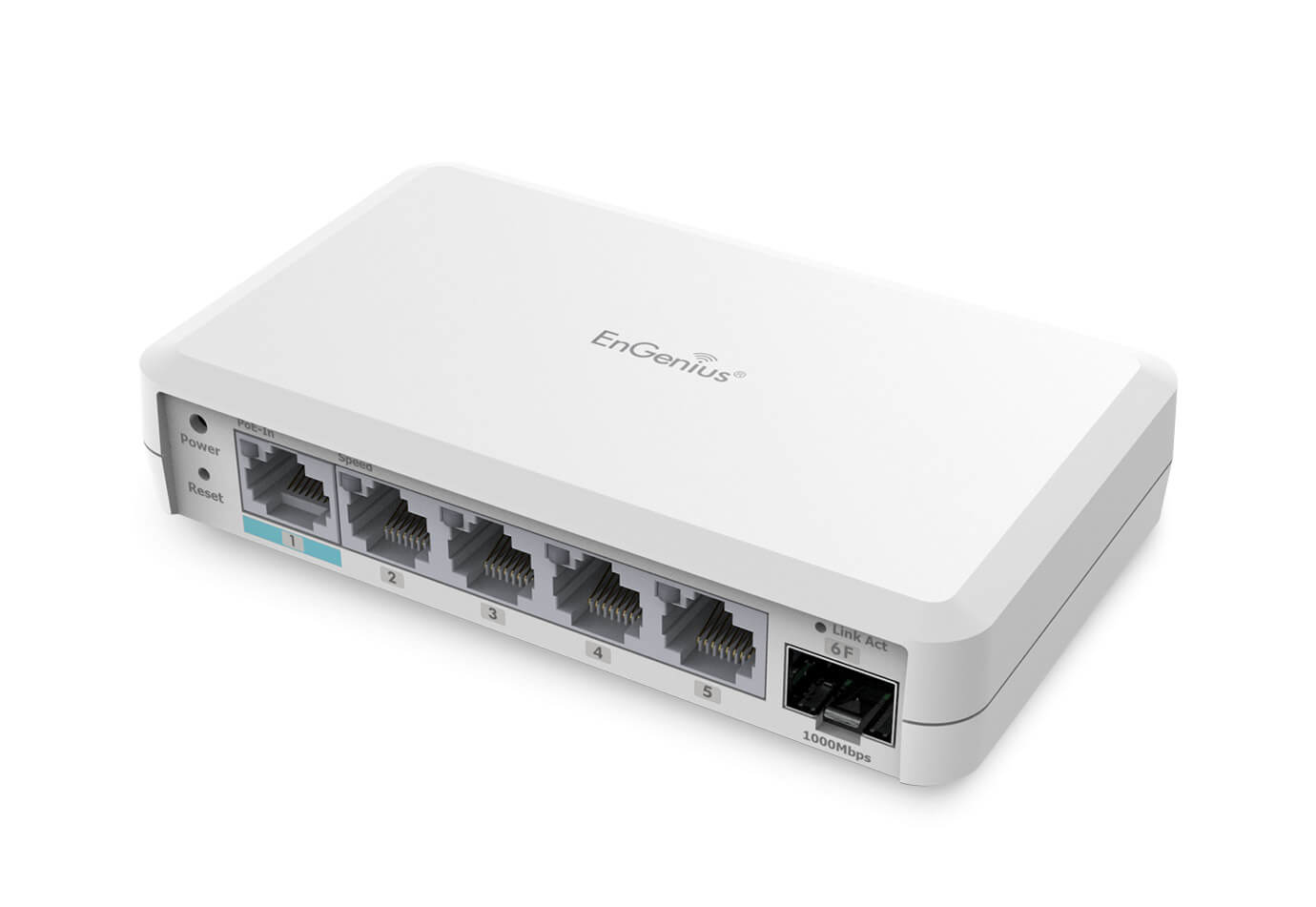

Managed Switch extender, smart , 6-port GbE
Model EXT1106EAN 655216011359
43 specifications
- ColourWhite
- Switch layerL2
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table8000 entries
- Access Control List (ACL)Yes
Overview
- Colour
- White
- Switch layer
- L2
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 8000 entries
- Access Control List (ACL)
- Yes
- Brand
- EnGenius
- Category
- Network Switch
- Model
- EXT1106
- Part number
- EXT1106
- EAN / UPC
- 655216011359, 4711488350070
- Also known as
- EnGenius Managed Switch extender, smart , 6-port GbE
Specifications
43 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
Ports & interfaces
| Specification | Value |
|---|---|

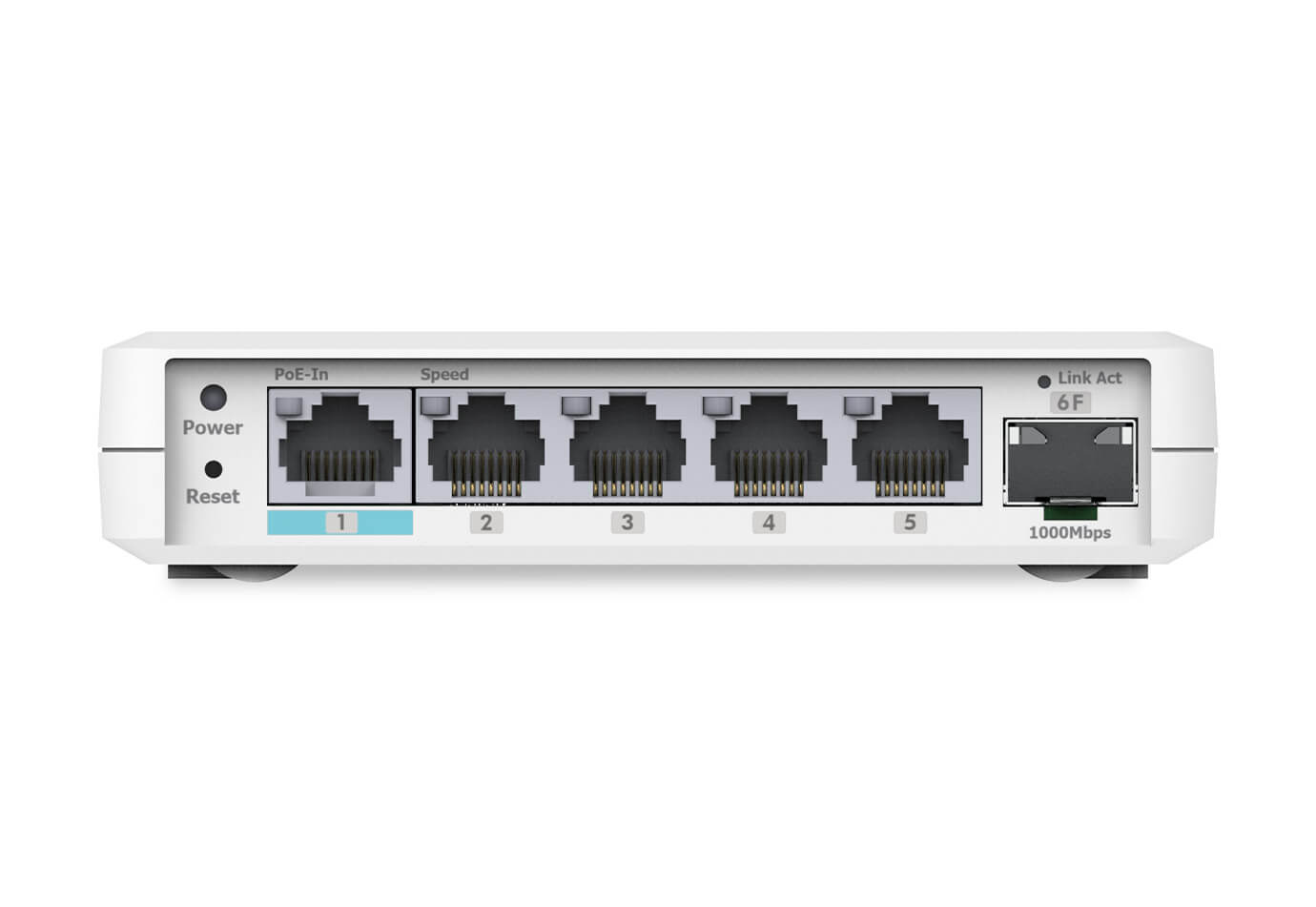

| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 1 |

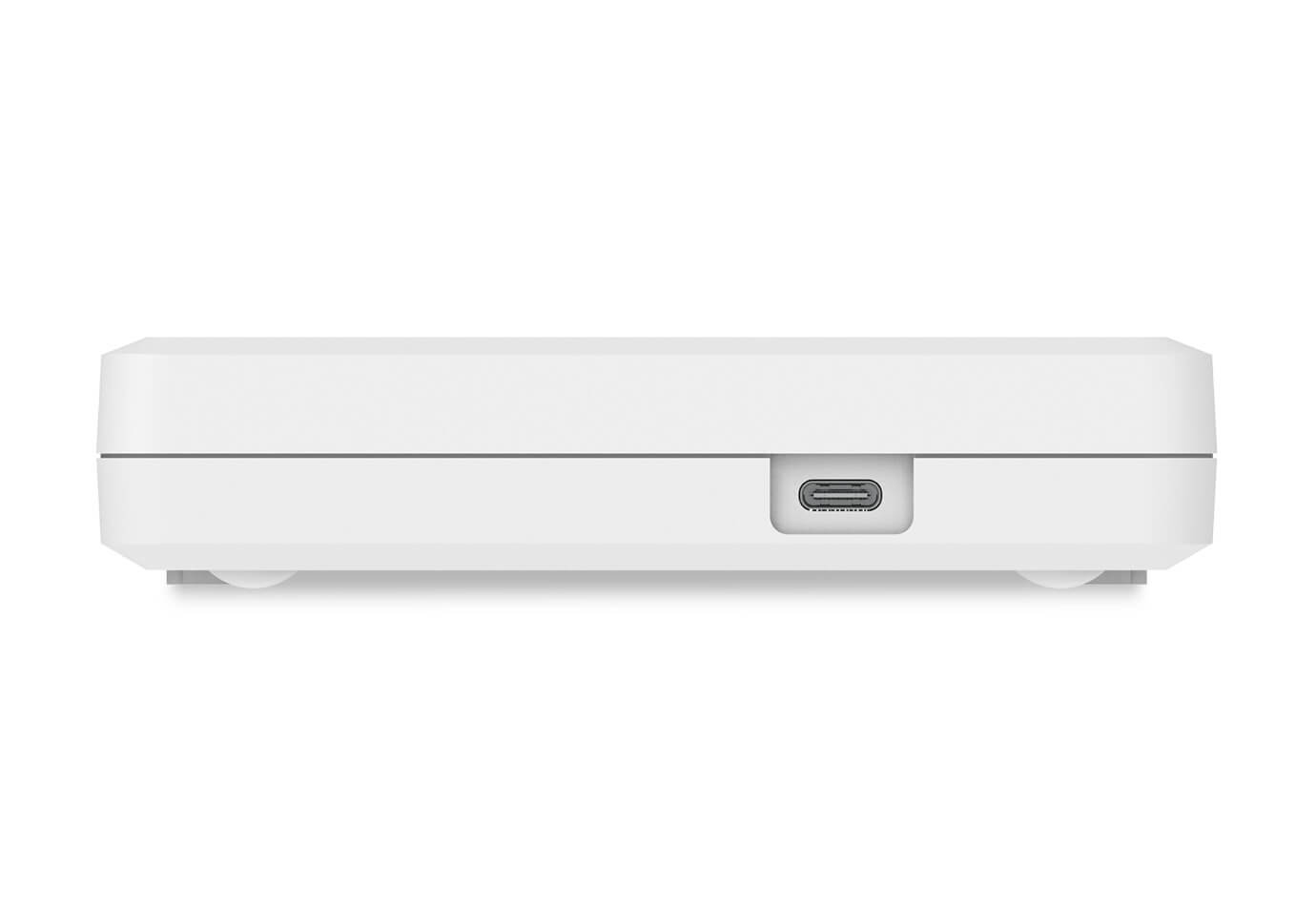

| USB Type-C ports quantity | 1 |
| Power connector | USB |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.1w, IEEE 802.3az, IEEE 802.3u |
| 10G support | No |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 12 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 15000 |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Number of multicast groups filtered | 8 |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Reset button | Yes |
| LED indicators | Power |
Performance
| Specification | Value |
|---|---|
| Flash memory | 32 MB |
Power
| Specification | Value |
|---|---|
| Power source | DC/PoE |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 73.9 mm |
| Depth | 125 mm |
| Height | 28 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 83 mm |
| Package depth | 74 mm |
| Package height | 137 mm |
| Package weight | 240 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case net weight | 5.76 kg |
| Master (outer) case width | 462 mm |
| Master (outer) case length | 348 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 156 mm |
| Master (outer) case gross weight | 6.39 kg |
| Products per master (outer) case | 24 pc(s) |
