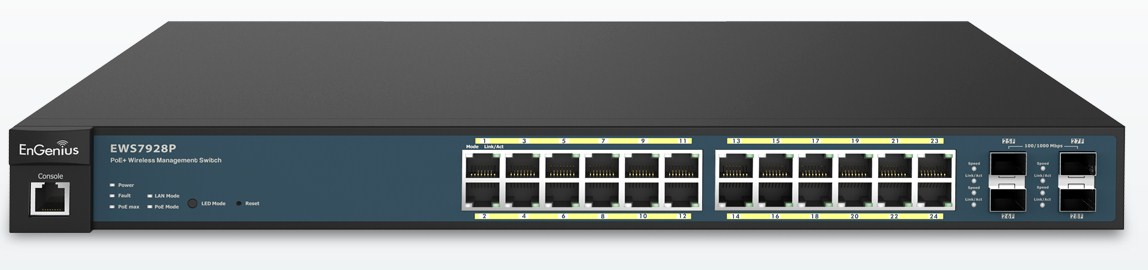

EnGenius EWS7928P Wireless Managed L2 switch 24-port GbE PoE+ Switch 4 x SFP
185W manage up to 50 x AP
Model EWS7928PEAN 655216006867
50 specifications
- Memory256 MB
- Type1U
- Weight3.55 kg
- ColourBlack, Blue
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Memory
- 256 MB
- Type
- 1U
- Weight
- 3.55 kg
- Colour
- Black, Blue
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- EnGenius
- Category
- Network Switch
- Model
- EWS7928P
- Part number
- EWS7928P
- EAN / UPC
- 655216006867, 4713361931673, 6552160068672
- Also known as
- EnGenius EWS7928P Wireless Managed L2 switch 24-port GbE PoE+ Switch 4 x SFP 185W manage up to 50 x AP
Specifications
50 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | RFC1213, RFC1493, RFC1757, RFC2674 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at |
| 10G support | No |
| Port mirroring | Yes |
| IP routing | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 56 Gbit/s |
| Store-and-forward | Yes |
| Number of queues | 4 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Security algorithms | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP v1/v2c/v3, CLI, RMONv1, SYSLOG |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black, Blue |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Internal memory | 256 MB |
| Flash memory | 32 MB |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 185 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 185 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 260 mm |
| Height | 44 mm |
| Weight | 3.55 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, LAN (RJ-45) |
| Quick start guide | Yes |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
