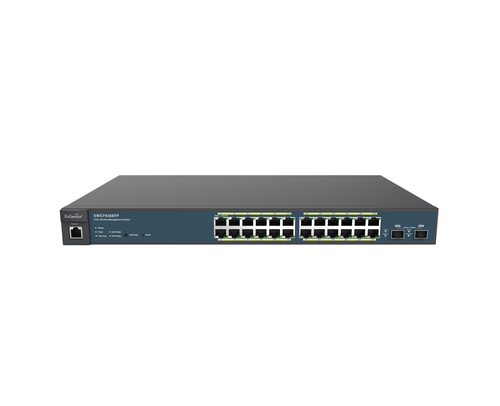

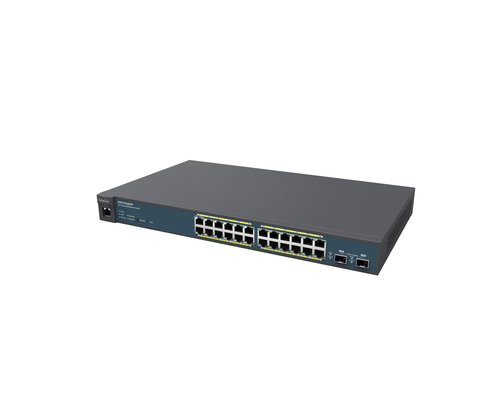

EnGenius EWS7926EFP Wireless Managed L2 switch 24-port GbE PoE+
2 x 10 Gigabit SFP+ 410W manage up to 50 x AP
Model EWS7926EFPEAN 655216008595
39 specifications
- Memory256 MB
- Weight3.5 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportYes
Overview
- Memory
- 256 MB
- Weight
- 3.5 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- Yes
- Brand
- EnGenius
- Category
- Network Switch
- Model
- EWS7926EFP
- Part number
- EWS7926EFP
- EAN / UPC
- 655216008595, 4713361931451
- Also known as
- EnGenius EWS7926EFP Wireless Managed L2 switch 24-port GbE PoE+ 2 x 10 Gigabit SFP+ 410W manage up to 50 x AP
Specifications
39 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 2 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at |
| 10G support | Yes |
| VLAN support | Yes |
| Virtual LAN features | Voice VLAN, Tagged VLAN |
| Number of VLANs | 4094 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 92 Gbit/s |
| Store-and-forward | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WEP, WPA, WPA2-Enterprise, WPA2-PSK |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Black |
| LED indicators | Fault, Power |
Performance
| Specification | Value |
|---|---|
| Internal memory | 256 MB |
| Flash memory | 32 MB |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 410 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 23.2 W |
| Total Power over Ethernet (PoE) budget | 410 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 439 mm |
| Depth | 260 mm |
| Height | 44 mm |
| Weight | 3.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
| Manual | Yes |
| Rack mount kit | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
What people say
Reviews & ratings
EnGenius EWS7926EFP Wireless Managed L2 switch 24-port GbE PoE+
No reviews yet
Be the first to tell others how EnGenius EWS7926EFP Wireless Managed L2 switch 24-port GbE PoE+ works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare EnGenius EWS7926EFP Wireless Managed L2 switch 24-port GbE PoE+

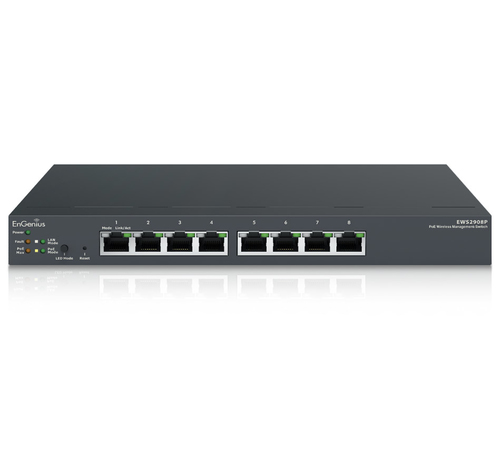

All network switch comparisons- EnGenius EWS7926EFP Wireless Managed L2 switch 24-port GbE PoE+ vsEnGenius EWS2908P Wireless Managed Smart+ switch 8-port GbE PoE.af SwitchCompare specs
