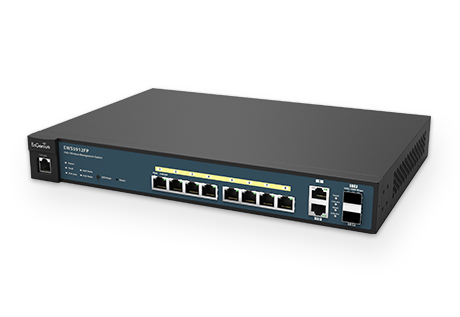

EnGenius EWS5912FP Wireless Managed L2 switch 8-port GbE PoE+ Switch 2 x GbE 2 x SFP
130W manage up to 50 x AP
Model EWS5912FPEAN 597783956179
49 specifications
- Memory256 MB
- Type1U
- Weight2 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
Overview
- Memory
- 256 MB
- Type
- 1U
- Weight
- 2 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Brand
- EnGenius
- Category
- Network Switch
- Model
- EWS5912FP
- Part number
- EWS5912FP
- EAN / UPC
- 597783956179, 655216006904, 4713361931635, 6552160069044
- Also known as
- EnGenius EWS5912FP Wireless Managed L2 switch 8-port GbE PoE+ Switch 2 x GbE 2 x SFP 130W manage up to 50 x AP
Specifications
49 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Traffic shaping | Yes |
| MIB support | RFC1213, RFC1493, RFC1757, RFC2674 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1ab, IEEE 802.3af, IEEE 802.3at |
| 10G support | No |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 24 Gbit/s |
| Store-and-forward | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Security algorithms | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Static port security | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP v1/v2c/v3, CLI, RMONv1, SYSLOG |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Activity, LAN, Link, PoE, Power, Yes |
Performance
| Specification | Value |
|---|---|
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 130 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 130 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 330.2 mm |
| Depth | 228.6 mm |
| Height | 43.9 mm |
| Weight | 2 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, LAN (RJ-45) |
| Quick start guide | Yes |
| Manual | Yes |
