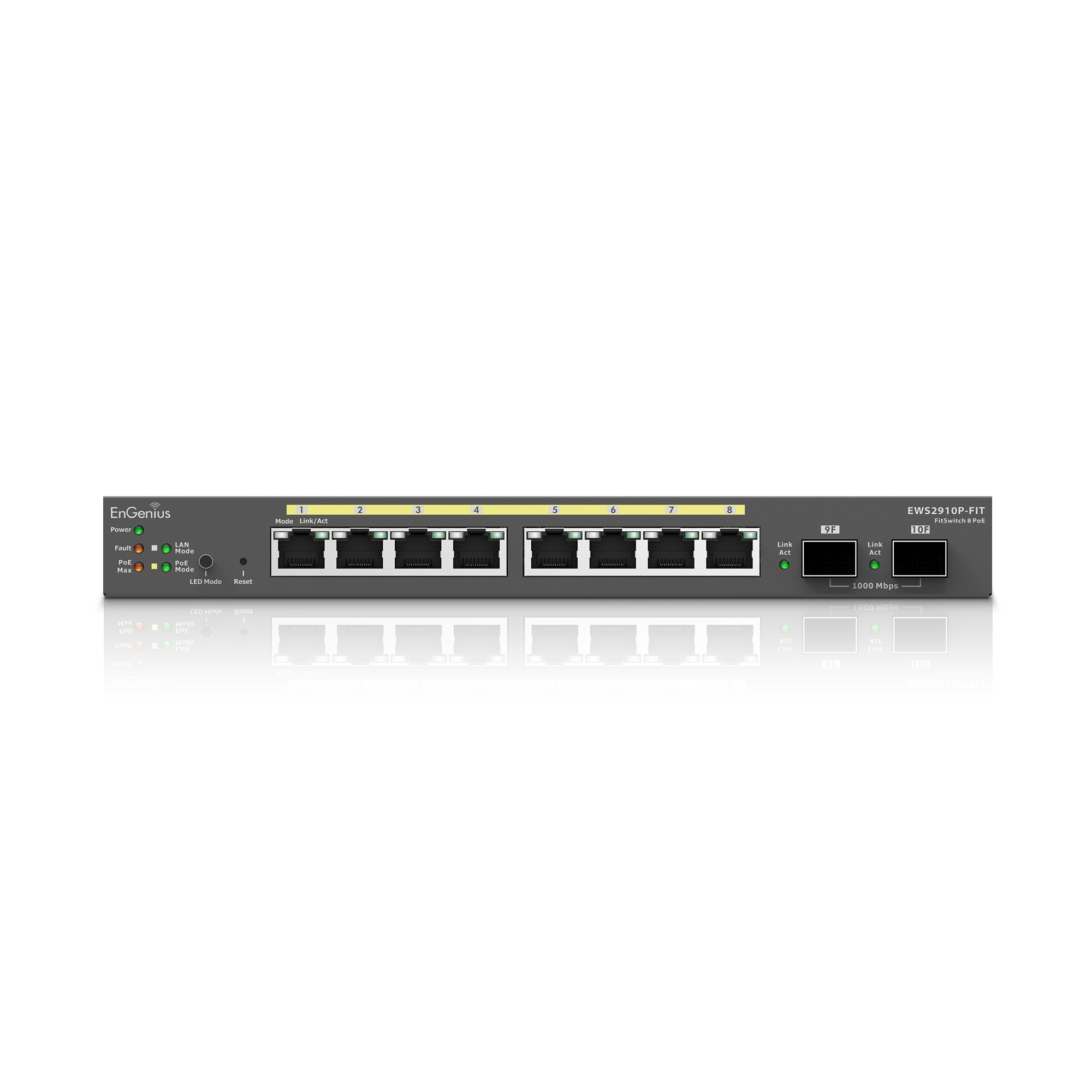

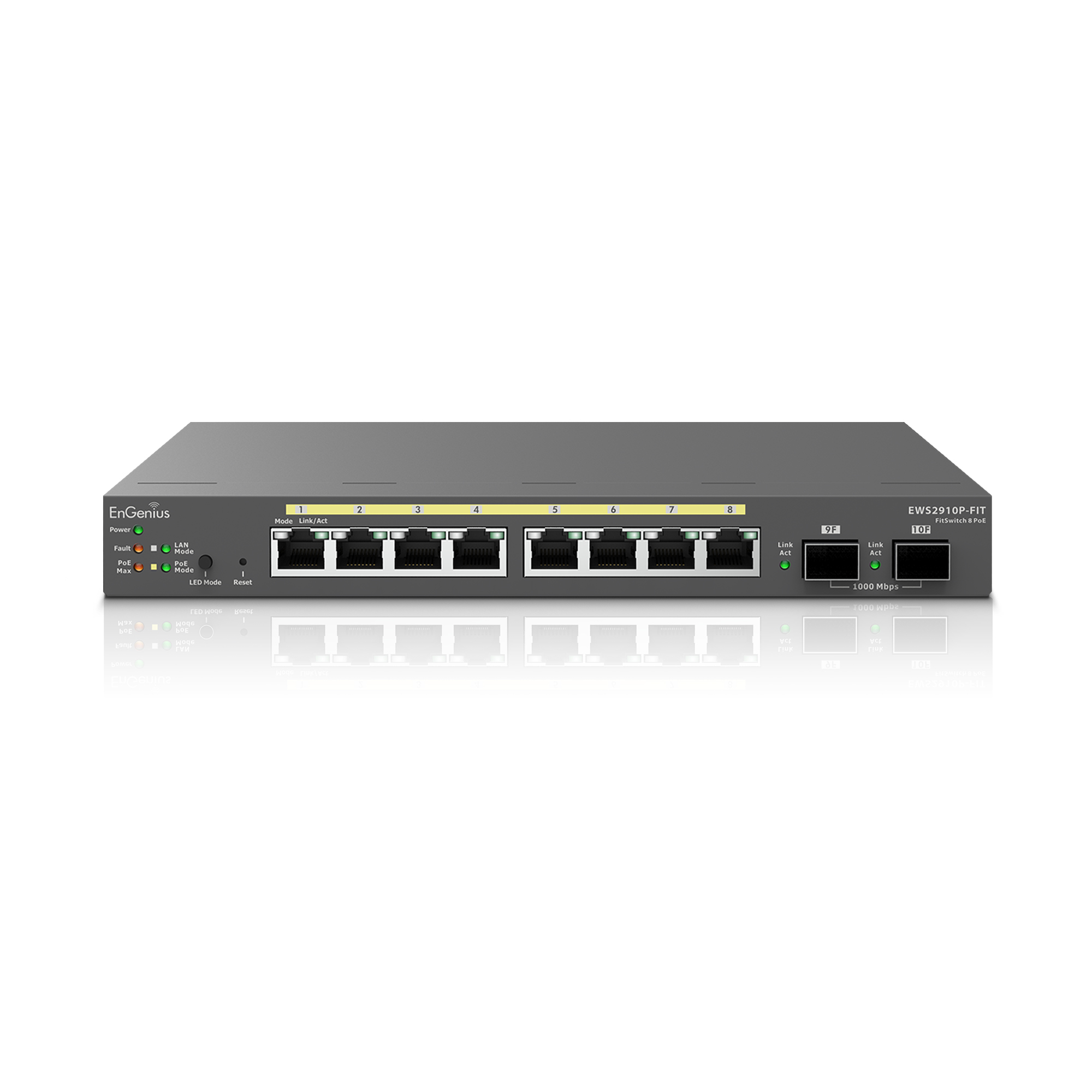

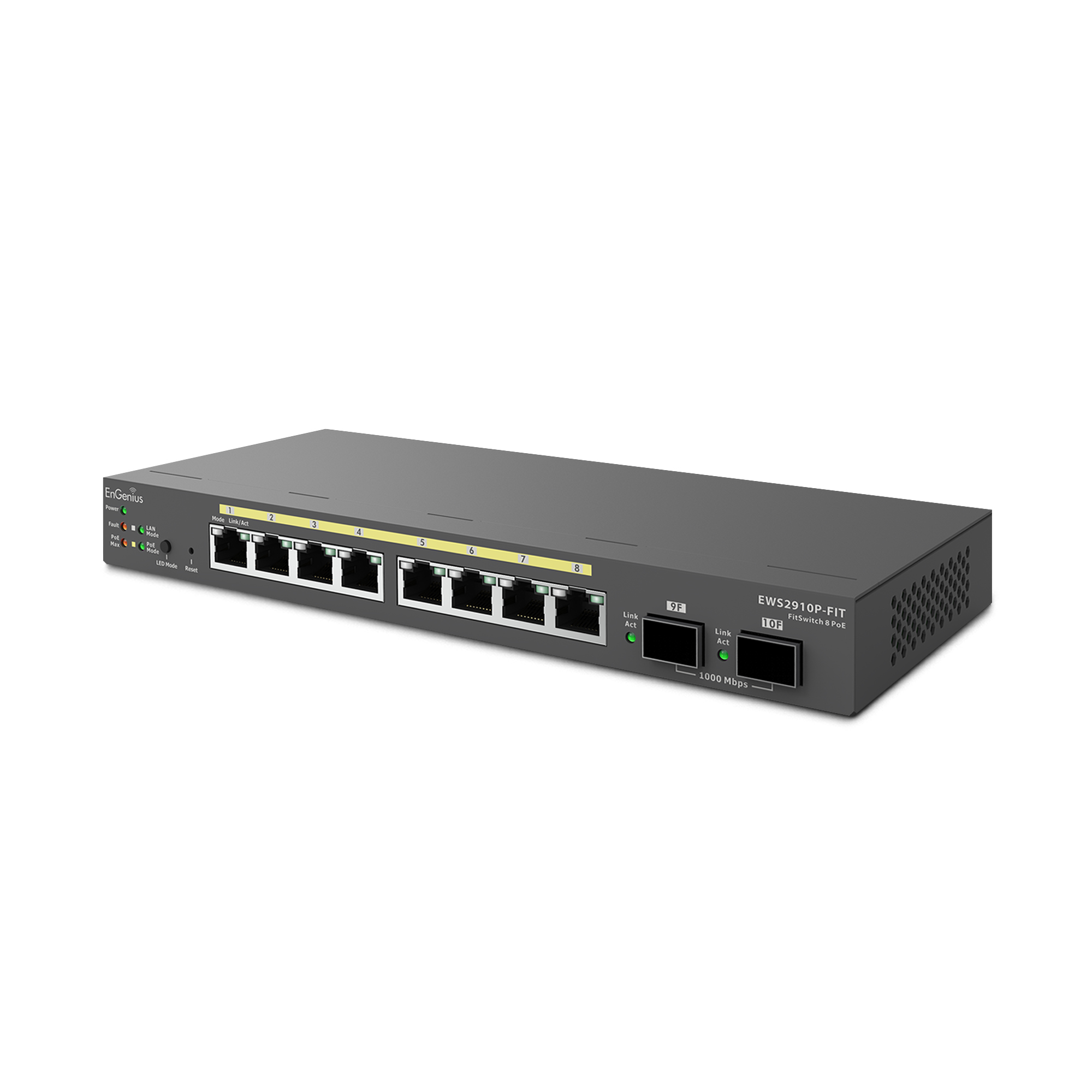

Switch 8-port GbE PoE.af/at(+)
55W, 2xSFP Desktop wall-mountable
Model EWS2910P-FITEAN 655216011007
71 specifications
- Memory256 MB
- Weight620 g
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
Overview
- Memory
- 256 MB
- Weight
- 620 g
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- Brand
- EnGenius
- Category
- Network Switch
- Model
- EWS2910P-FIT
- Part number
- EWS2910P-FIT
- EAN / UPC
- 655216011007, 4713361936272
- Also known as
- EnGenius Switch 8-port GbE PoE.af/at(+) 55W, 2xSFP Desktop wall-mountable
Specifications
71 specifications in 17 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| IPv4 routes | 59 |
| IPv6 routes | 5 |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |

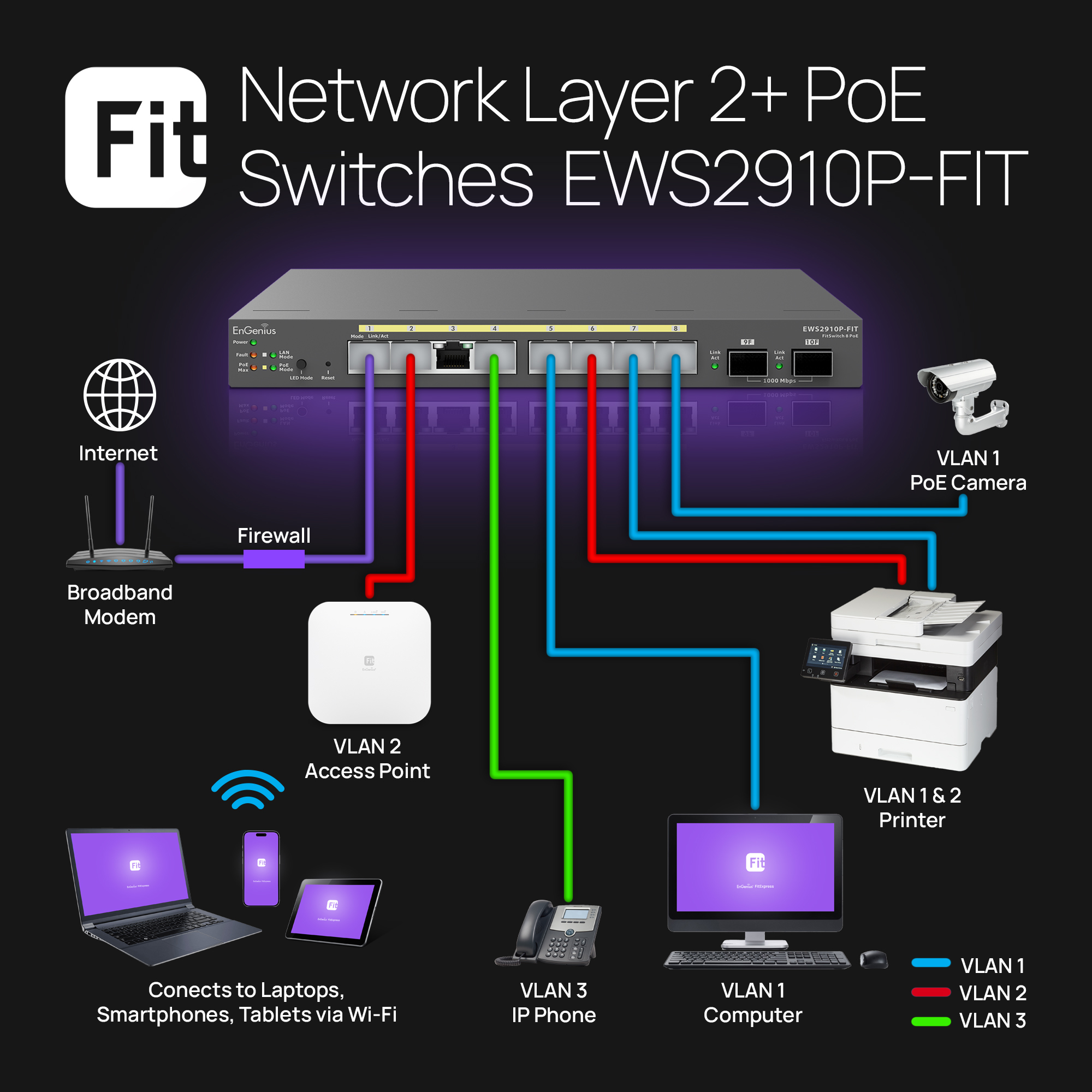

| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Tagged VLAN, Voice VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 20 Gbit/s |
| Static route | Yes |
| Number of static routes | 192 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP relay, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication type | RADIUS |
| SSH/SSL support | Yes |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast MAC address table | 256 entries |
Protocols
| Specification | Value |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL), IPv6 ping |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Fault, LAN, PoE, Power |
Performance
| Specification | Value |
|---|---|
| Memory type | SDRAM |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |

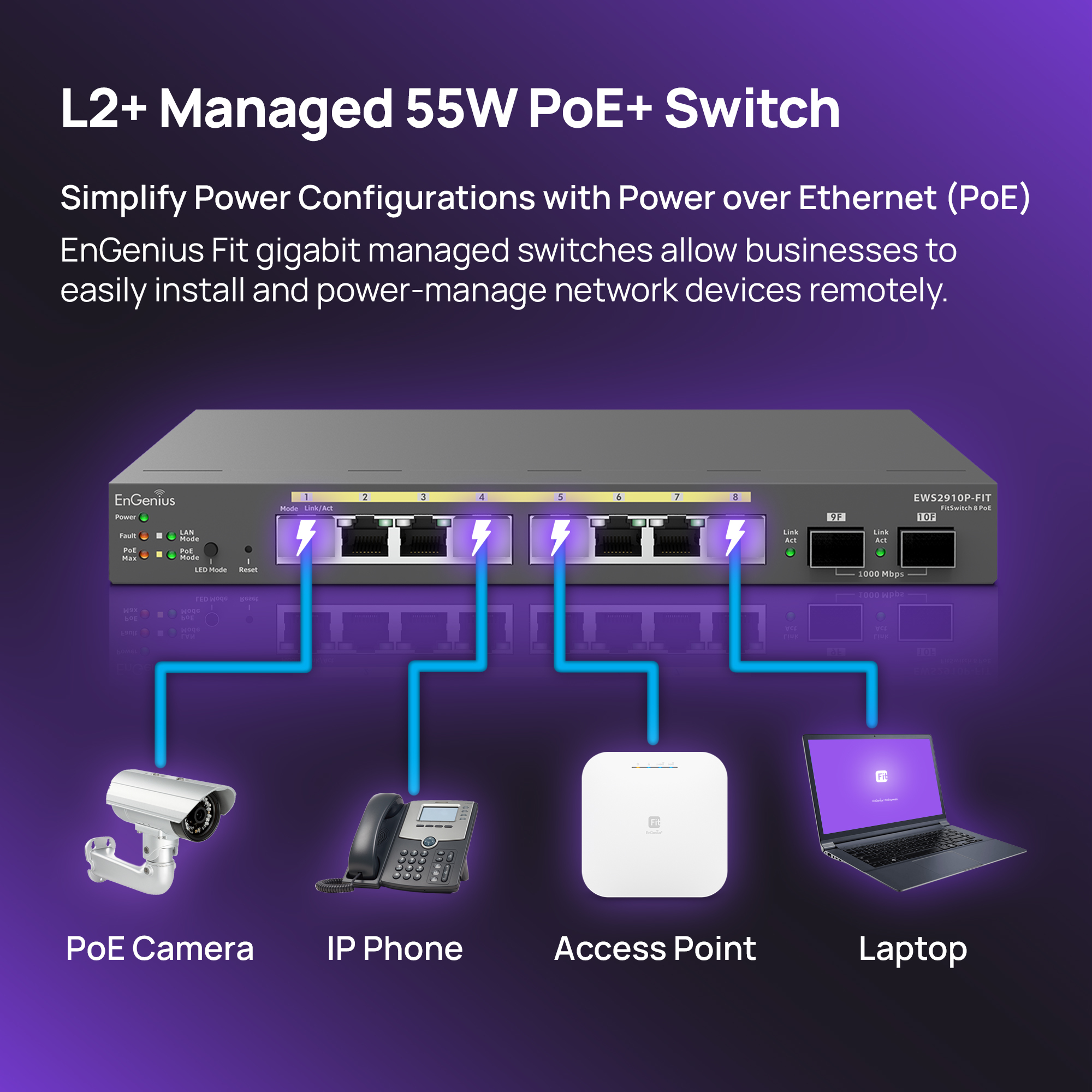

Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 55 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 105 mm |
| Depth | 240 mm |
| Height | 27 mm |
| Weight | 620 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 395 mm |
| Package depth | 310 mm |
| Package height | 102 mm |
| Package weight | 2.75 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, IC |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case net weight | 27.4 kg |
| Master (outer) case width | 357 mm |
| Master (outer) case length | 452 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 271 mm |
| Master (outer) case gross weight | 8.93 kg |
| Products per master (outer) case | 10 pc(s) |
