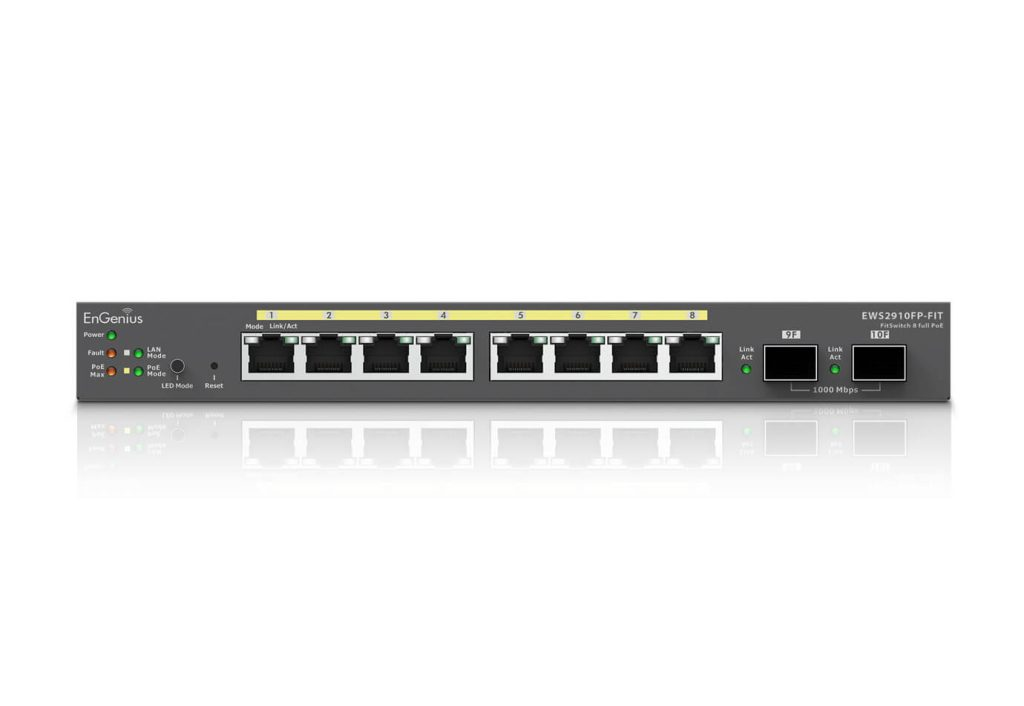

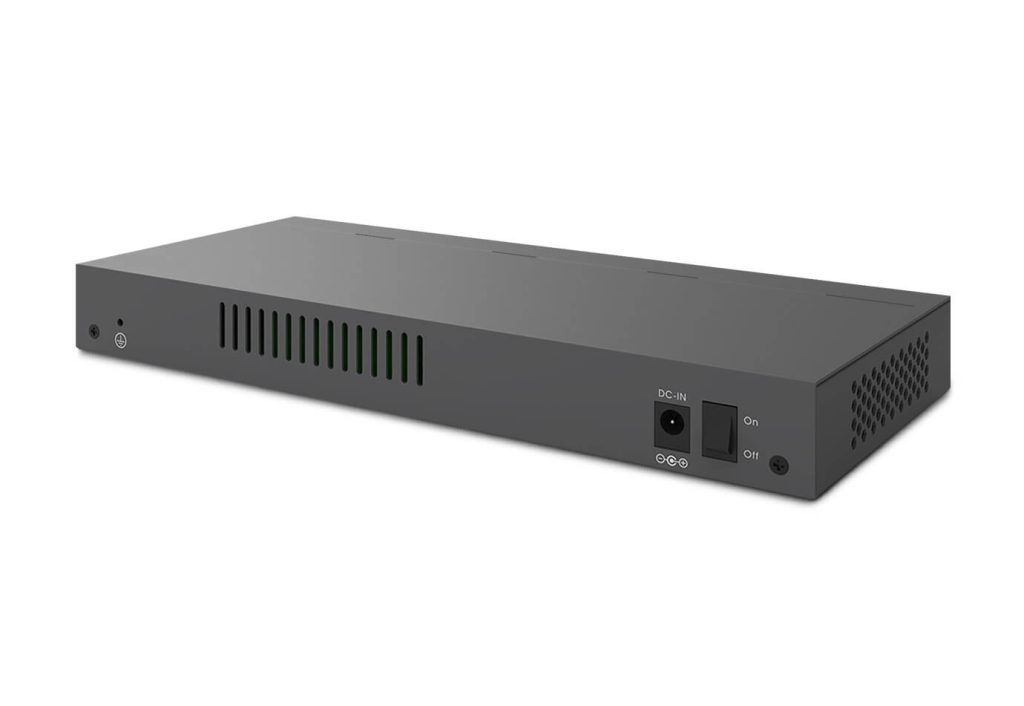

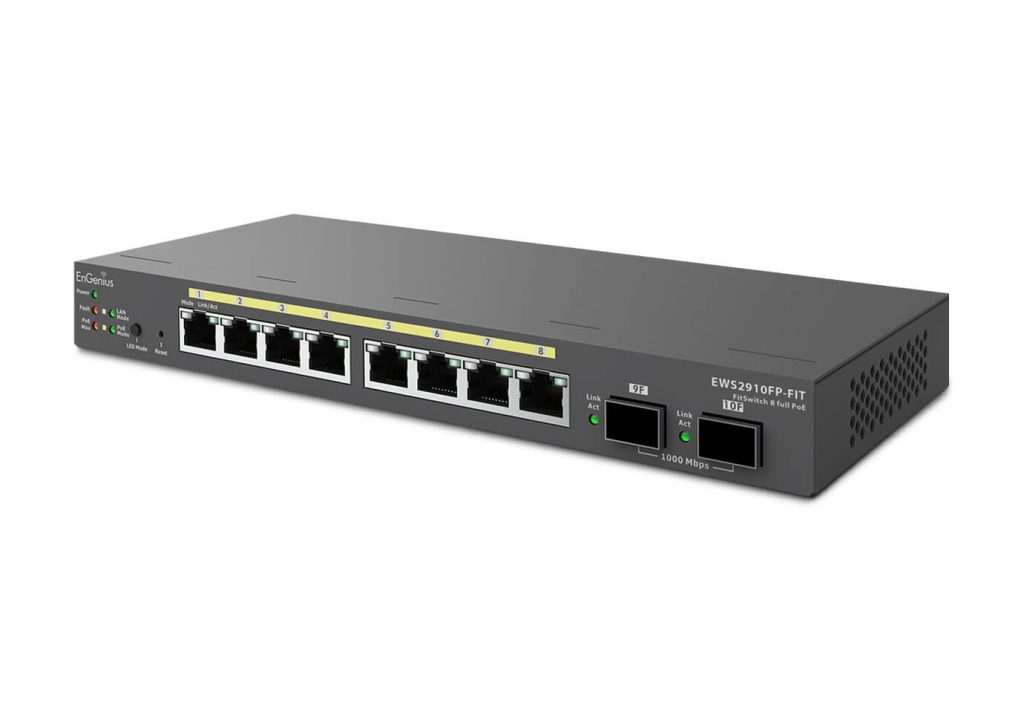

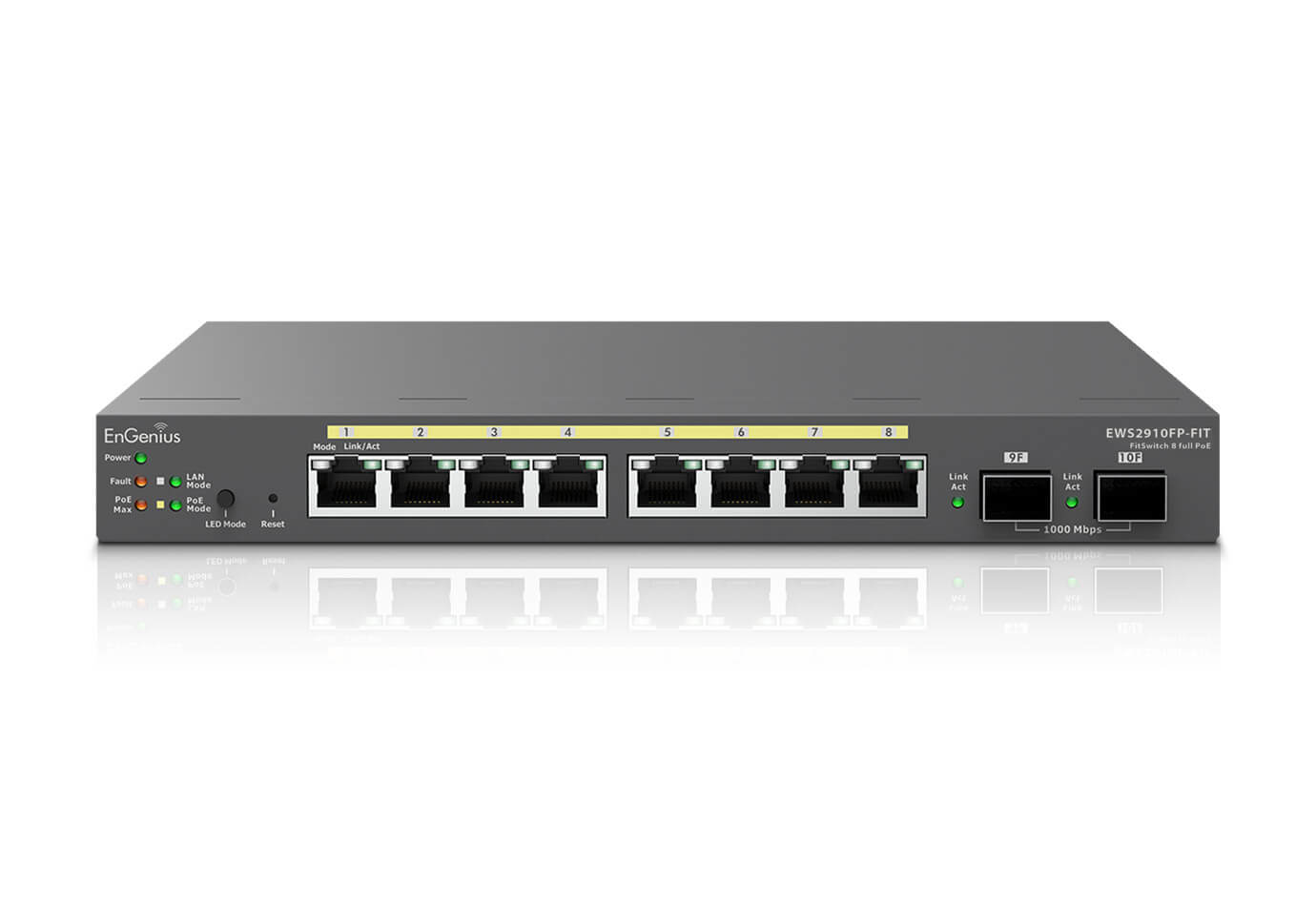

Switch 8-port GbE PoE.af/at(+)
130W, 2xSFP Desktop wall-mountable
Model EWS2910FP-FITEAN 655216011199
49 specifications
- Weight620 g
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- Port mirroringYes
- MAC address table8000 entries
Overview
- Weight
- 620 g
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Port mirroring
- Yes
- MAC address table
- 8000 entries
- Brand
- EnGenius
- Category
- Network Switch
- Model
- EWS2910FP-FIT
- Part number
- EWS2910FP-FIT
- EAN / UPC
- 655216011199, 4713361936289, 4713361936517
- Also known as
- EnGenius Switch 8-port GbE PoE.af/at(+) 130W, 2xSFP Desktop wall-mountable
Specifications
49 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 20 Gbit/s |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP snooping, DHCP relay |
| IGMP snooping | Yes |
| Loop protection | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNTP |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 110 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 105 mm |
| Depth | 240 mm |
| Height | 27 mm |
| Weight | 620 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 395 mm |
| Package depth | 310 mm |
| Package height | 102 mm |
| Package weight | 2.75 kg |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case net weight | 27.4 kg |
| Master (outer) case width | 351 mm |
| Master (outer) case length | 452 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 298 mm |
| Master (outer) case gross weight | 8.93 kg |
| Products per master (outer) case | 10 pc(s) |
