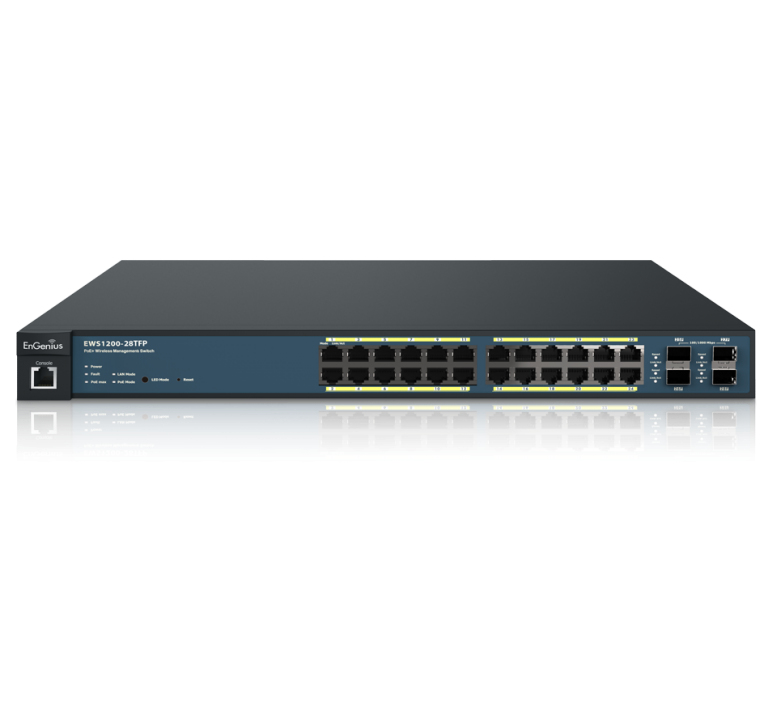

EnGenius EWS1200-28TFP Wireless Managed L2 switch 24-port GbE PoE+ Switch 4 x SFP

410W manage up to 50 x AP

Model EWS1200-28TFPEAN 655216008397

62 specifications

Overview

Brand: EnGenius
Category: Network Switch
Model: EWS1200-28TFP
Part number: EWS1200-28TFP
EAN / UPC: 655216008397, 4713361931406, 6552160083972
Also known as: EnGenius EWS1200-28TFP Wireless Managed L2 switch 24-port GbE PoE+ Switch 4 x SFP 410W manage up to 50 x AP

62 specifications in 14 groups

Specification	Value
Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
System event log	Yes

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	4
Fiber optic connector	SFP
Console port	RJ-45

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring	Yes
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Tagged VLAN
Number of VLANs	4094

Specification	Value
Fiber ethernet cabling technology	1000BASE‑LX, 1000BASE‑SX

Specification	Value
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication	Guest VLAN, Port-based authentication
BPDU filtering/protection	Yes
MAC address filtering	Yes
SSH/SSL support	Yes
Security algorithms	802.1x RADIUS, HTTPS, SNMP, SNMPv3, SSH, SSID, WEP, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK

Specification	Value
Memory type	SDRAM
Internal memory	256 MB
Flash memory	32 MB
Buffer size	512 KB
Compatible operating systems	Windows 7
Minimum system requirements	Intel Core i3 3.6 GHz, 4 GB RAM, 500 GB HDD; Intel Core i5 3.2 GHz, 4 GB RAM, 500 GB HDD

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	410 W

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%

Specification	Value
Certification	CE, FCC, IC

Specification	Value
Harmonized System (HS) code	85176990
