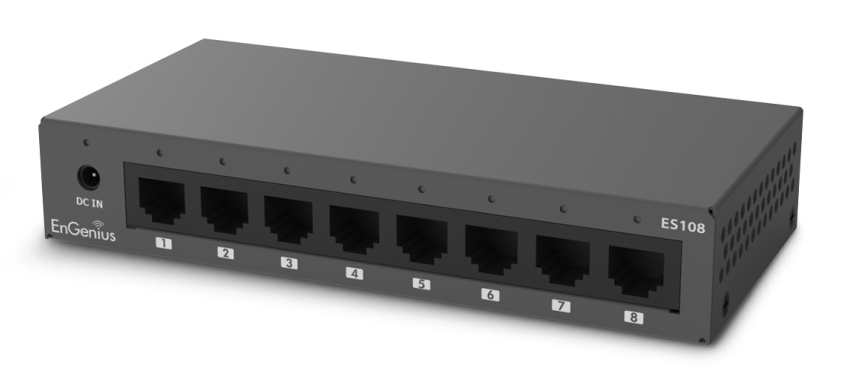

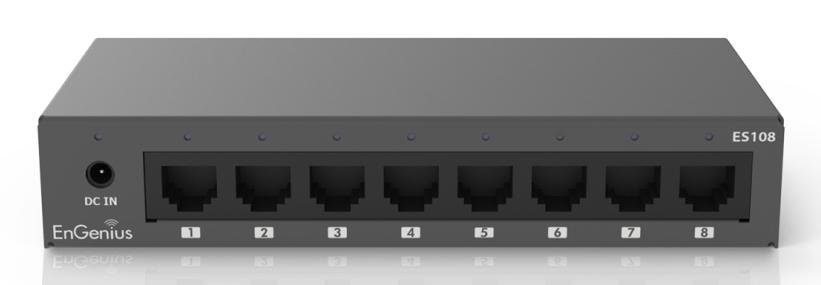

Unmanaged Switch 8-port GbE
Model ES108EAN 4711488350254
35 specifications
- Weight227 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- Switching capacity16 Gbit/s
Overview
- Weight
- 227 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- Switching capacity
- 16 Gbit/s
- Brand
- EnGenius
- Category
- Network Switch
- Model
- ES108
- Part number
- ES108
- EAN / UPC
- 4711488350254
- Also known as
- EnGenius Unmanaged Switch 8-port GbE
Specifications
35 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u |
| 10G support | No |
| Ethernet LAN data rates | 100,1000 Mbit/s |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 16 Gbit/s |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| LED indicators | Activity, Link |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Fanless | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC/DC |
| Power supply included | No |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 67 mm |
| Depth | 140 mm |
| Height | 26 mm |
| Weight | 227 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 150 mm |
| Package depth | 85 mm |
| Package height | 65 mm |
| Package weight | 342 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case net weight | 17.1 kg |
| Master (outer) case width | 350 mm |
| Master (outer) case length | 450 mm |
| Master (outer) case height | 330 mm |
| Master (outer) case gross weight | 18 kg |
| Products per master (outer) case | 50 pc(s) |
