EnGenius EGS5212FP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Model EGS5212FPEAN 655216006799
33 specifications
- Weight2 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity10
- Networking standardsIEEE 802.3af, IEEE 802.3at
- Switching capacity24 Gbit/s
Overview
- Weight
- 2 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 10
- Networking standards
- IEEE 802.3af, IEEE 802.3at
- Switching capacity
- 24 Gbit/s
- Brand
- EnGenius
- Category
- Network Switch
- Model
- EGS5212FP
- Part number
- EGS5212FP
- EAN / UPC
- 655216006799, 657379358692, 6552160067996
- Also known as
- EnGenius EGS5212FP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Specifications
33 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Fiber optic connector | SFP |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| 10G support | No |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 24 Gbit/s |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 130 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 330 mm |
| Depth | 230 mm |
| Height | 44 mm |
| Weight | 2 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| User guide | Yes |
What people say
Reviews & ratings
EnGenius EGS5212FP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
No reviews yet
Be the first to tell others how EnGenius EGS5212FP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare EnGenius EGS5212FP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
All network switch comparisons- EnGenius EGS5212FP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black vsEnGenius EWS5912FP Wireless Managed L2 switch 8-port GbE PoE+ Switch 2 x GbE 2 x SFPCompare specs

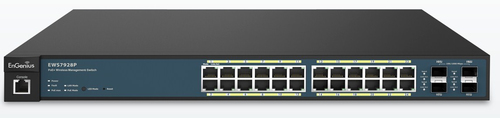

- EnGenius EGS5212FP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black vsEnGenius EWS7928P Wireless Managed L2 switch 24-port GbE PoE+ Switch 4 x SFPCompare specs
- EnGenius EGS5212FP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black vsEnGenius EGS7228P network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, BlueCompare specs

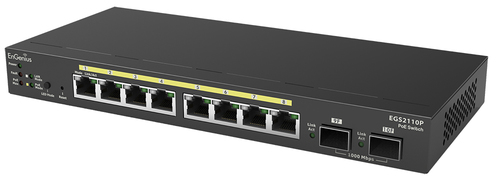

- EnGenius EGS5212FP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black vsEnGenius EGS2110P network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) BlackCompare specs

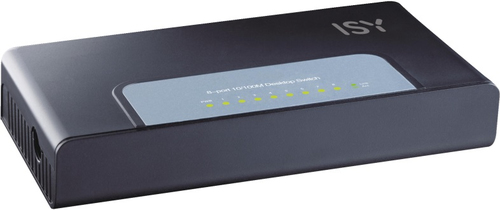

- EnGenius EGS5212FP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black vsISY INW 2100Compare specs

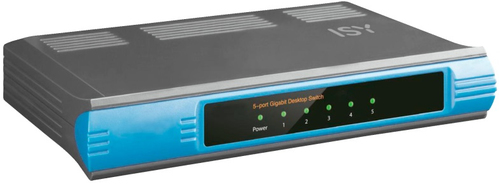

- EnGenius EGS5212FP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black vsISY INW 3000Compare specs

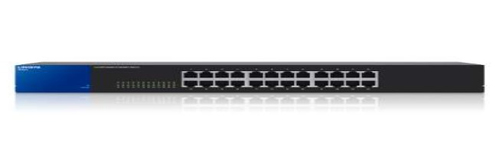

- EnGenius EGS5212FP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black vsLinksys SE3024 network switch Unmanaged Gigabit Ethernet (10/100/1000) BlackCompare specs
