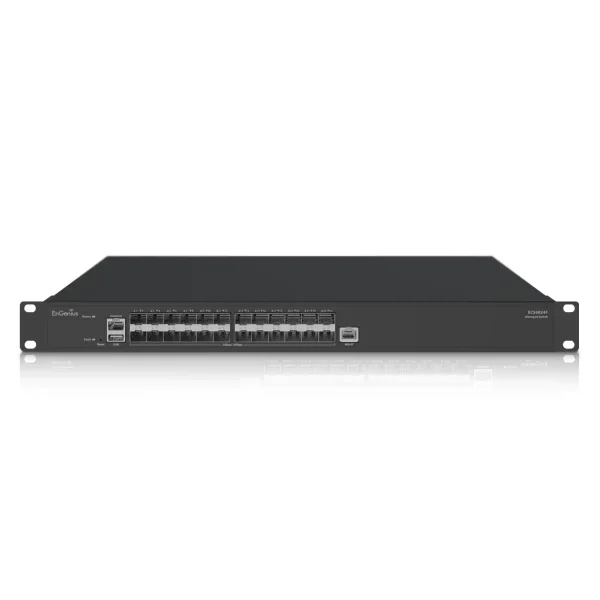

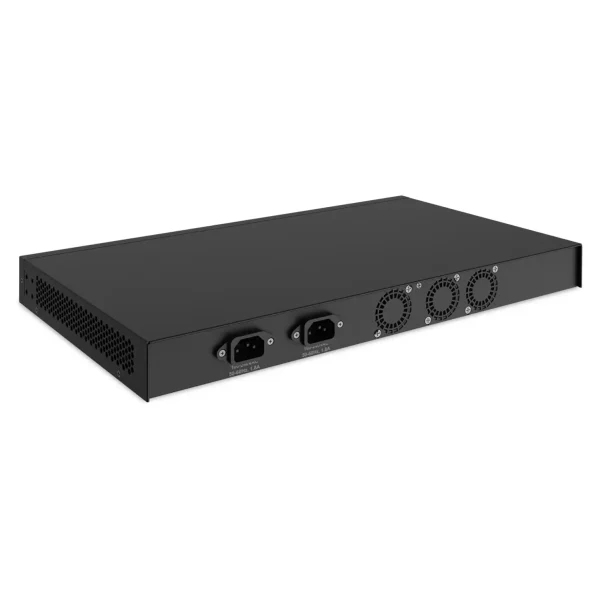

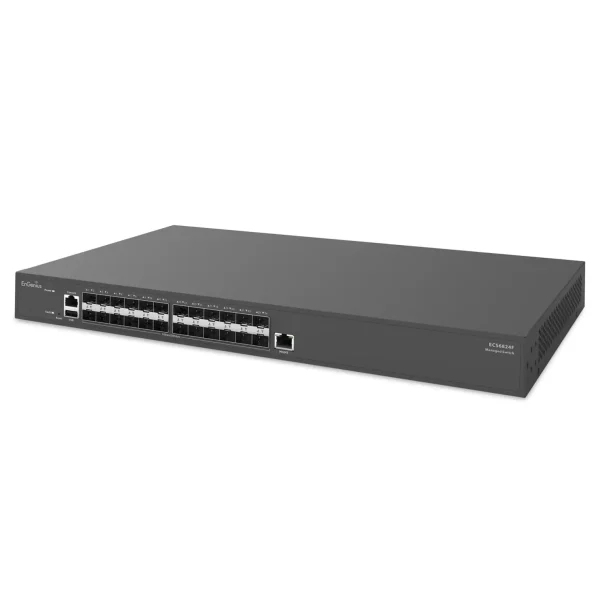

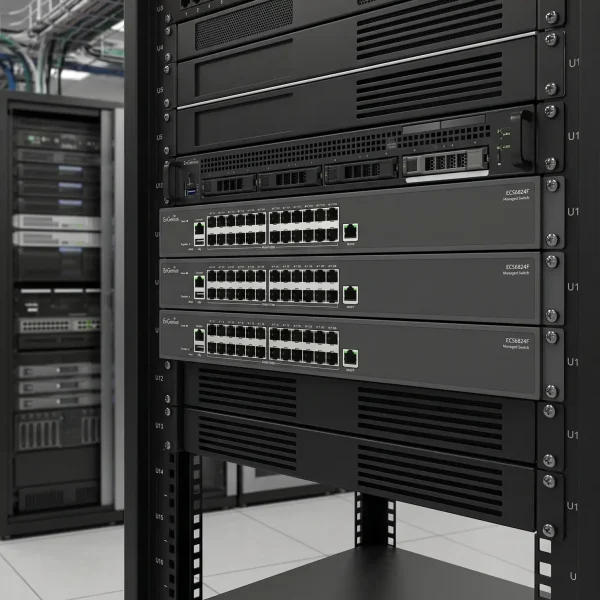

24-Port Non-PoE Layer 3 Switch
Model ECS6824FEAN 655216012004
52 specifications
- Memory2 MB
- Type1U
- Weight3.6 kg
- ColourBlack
- Switch typeManaged
- SFP+ module slots quantity24
Overview
- Memory
- 2 MB
- Type
- 1U
- Weight
- 3.6 kg
- Colour
- Black
- Switch type
- Managed
- SFP+ module slots quantity
- 24
- Brand
- EnGenius
- Category
- Network Switch
- Model
- ECS6824F
- Part number
- ECS6824F
- EAN / UPC
- 655216012004
- Also known as
- EnGenius 24-Port Non-PoE Layer 3 Switch
Specifications
52 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| SFP+ module slots quantity | 24 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3z, IEEE 802.3ae, IEEE 802.1p |
| 10G support | Yes |
| Routing entries | 1500 |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 480 Gbit/s |
| Static route | Yes |
| Number of static routes | 512 |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP relay, DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) IPv4 entries | 256 |
| Access Control List (ACL) IPv6 entries | 512 |
| IGMP entries | 256 |
| IGMP snooping | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast Listener Discovery (MLD) snooping | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Number of fans | 3 fan(s) |
Performance
| Specification | Value |
|---|---|
| Memory type | DDR4-SDRAM |
| Internal memory | 2 MB |
| Flash memory | 264 MB |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| Number of power supply units | 2 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 257 mm |
| Depth | 440 mm |
| Height | 44 mm |
| Weight | 3.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 350 mm |
| Package depth | 535 mm |
| Package height | 100 mm |
| Package weight | 4.58 kg |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
