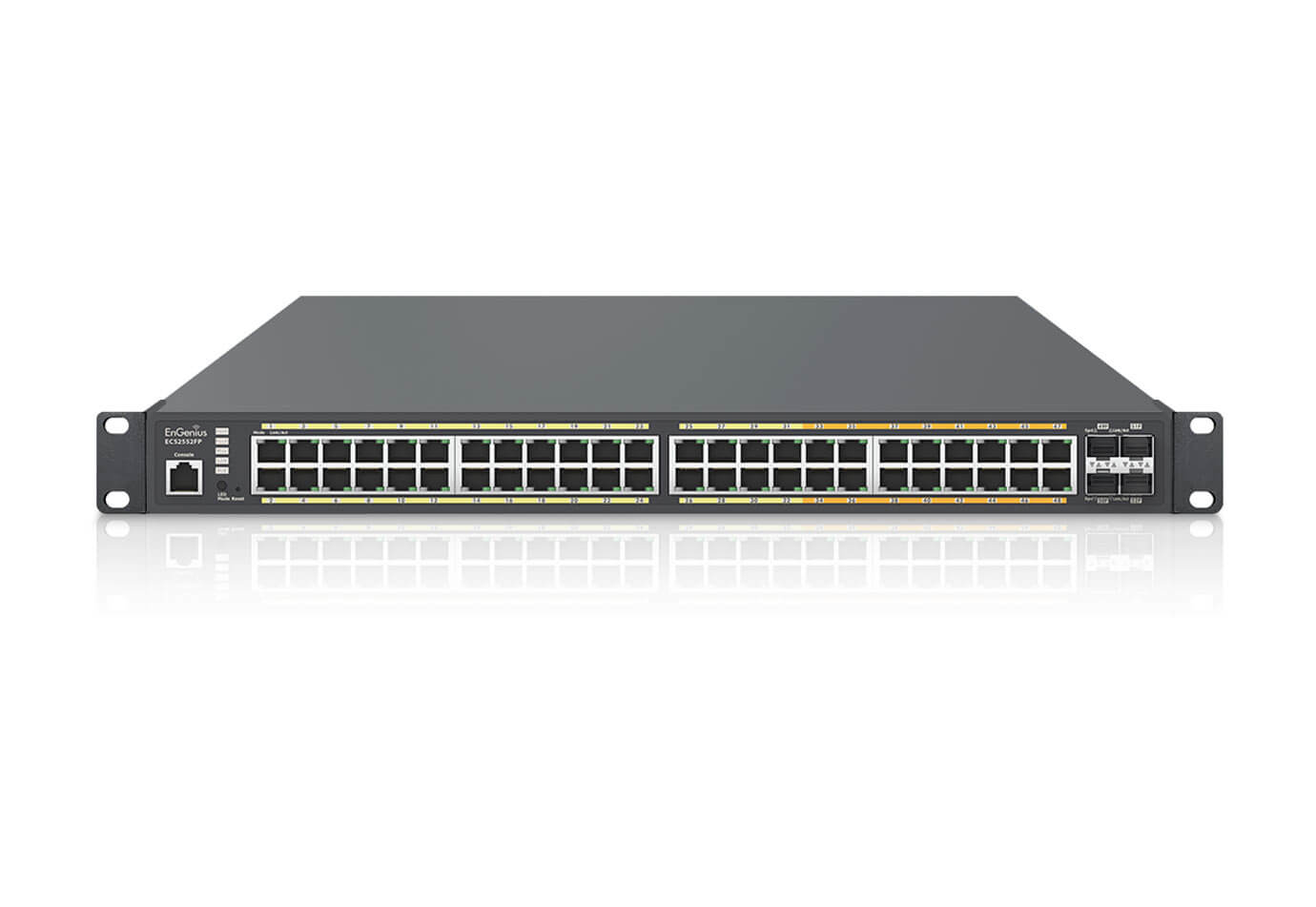

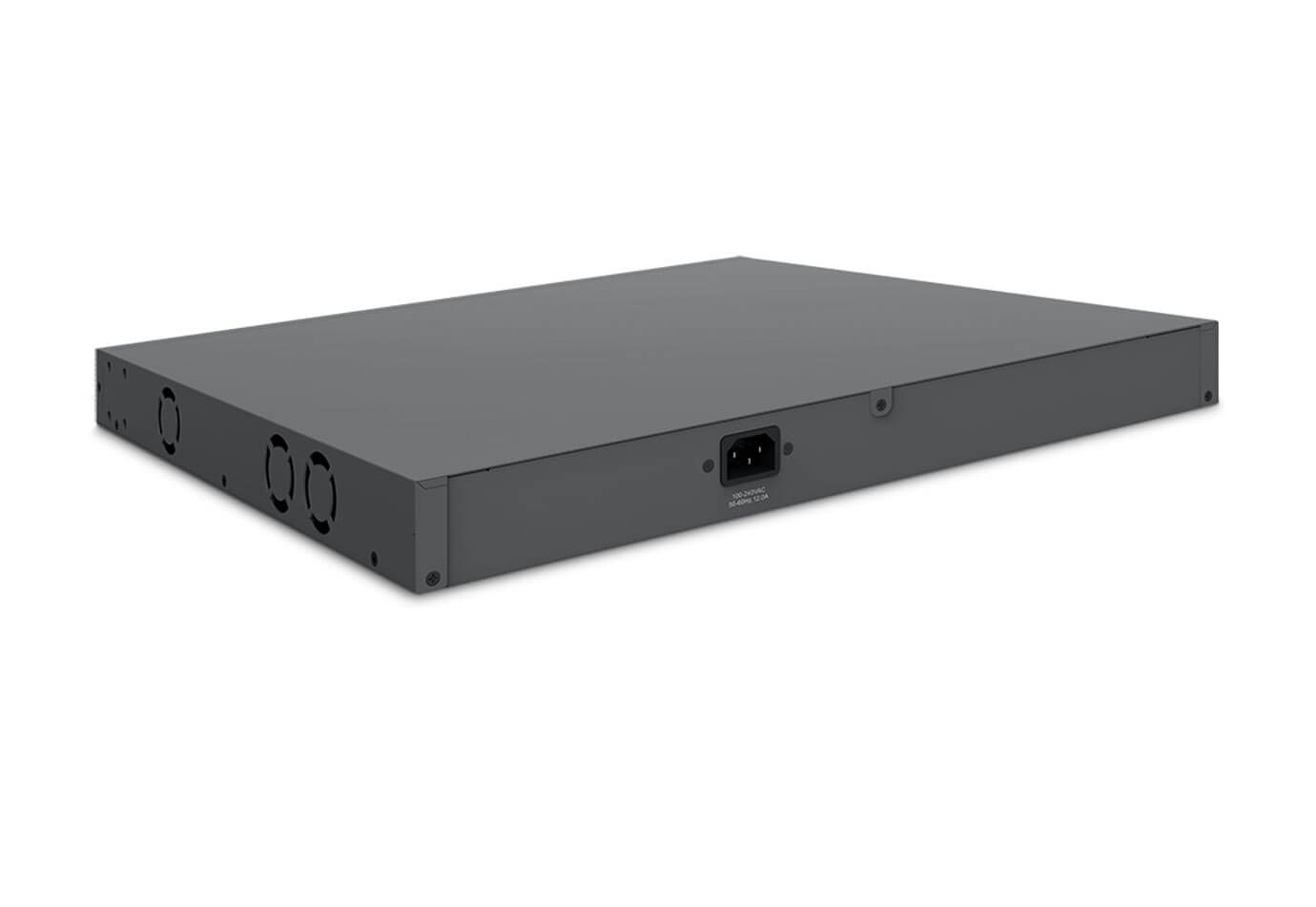

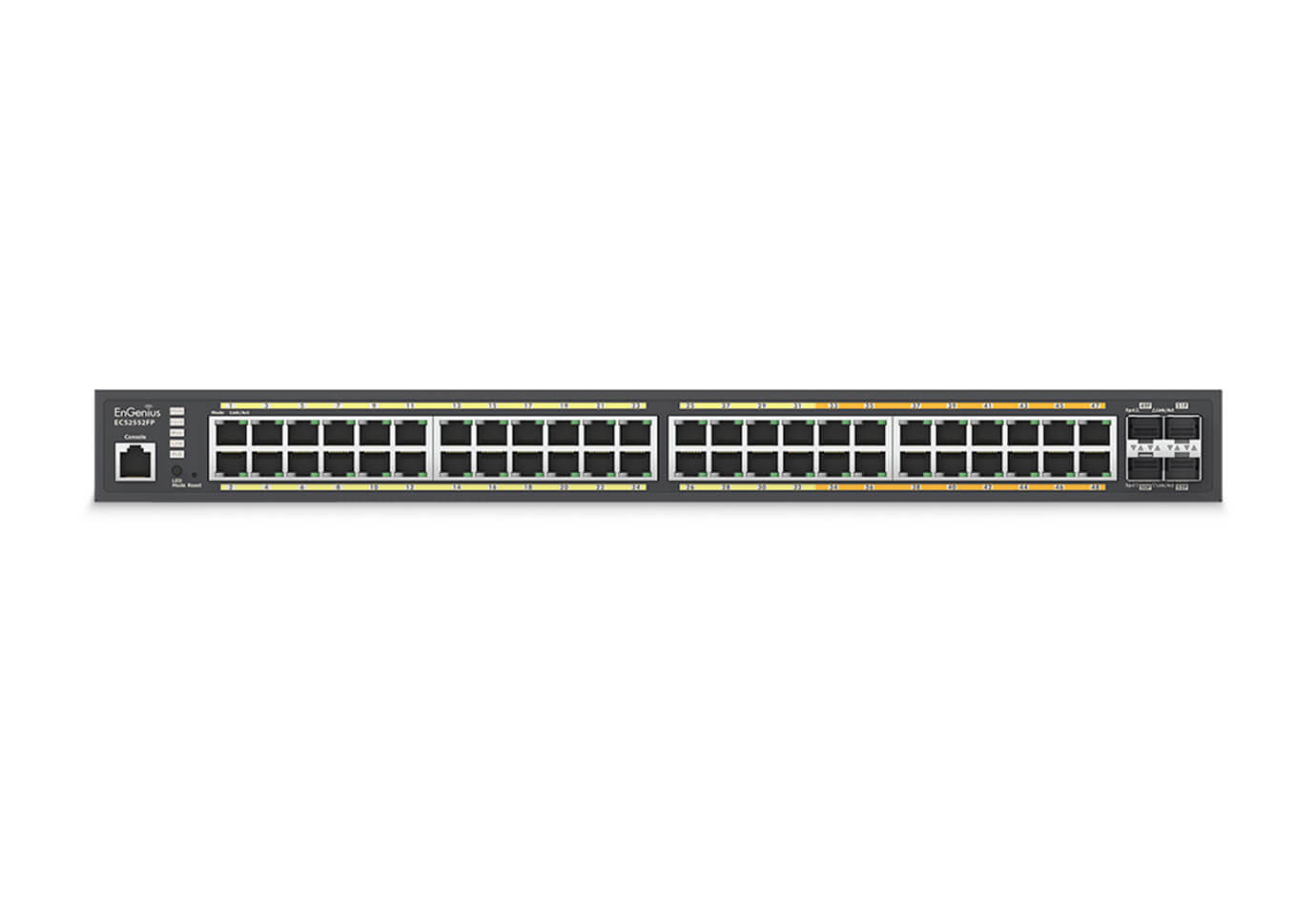

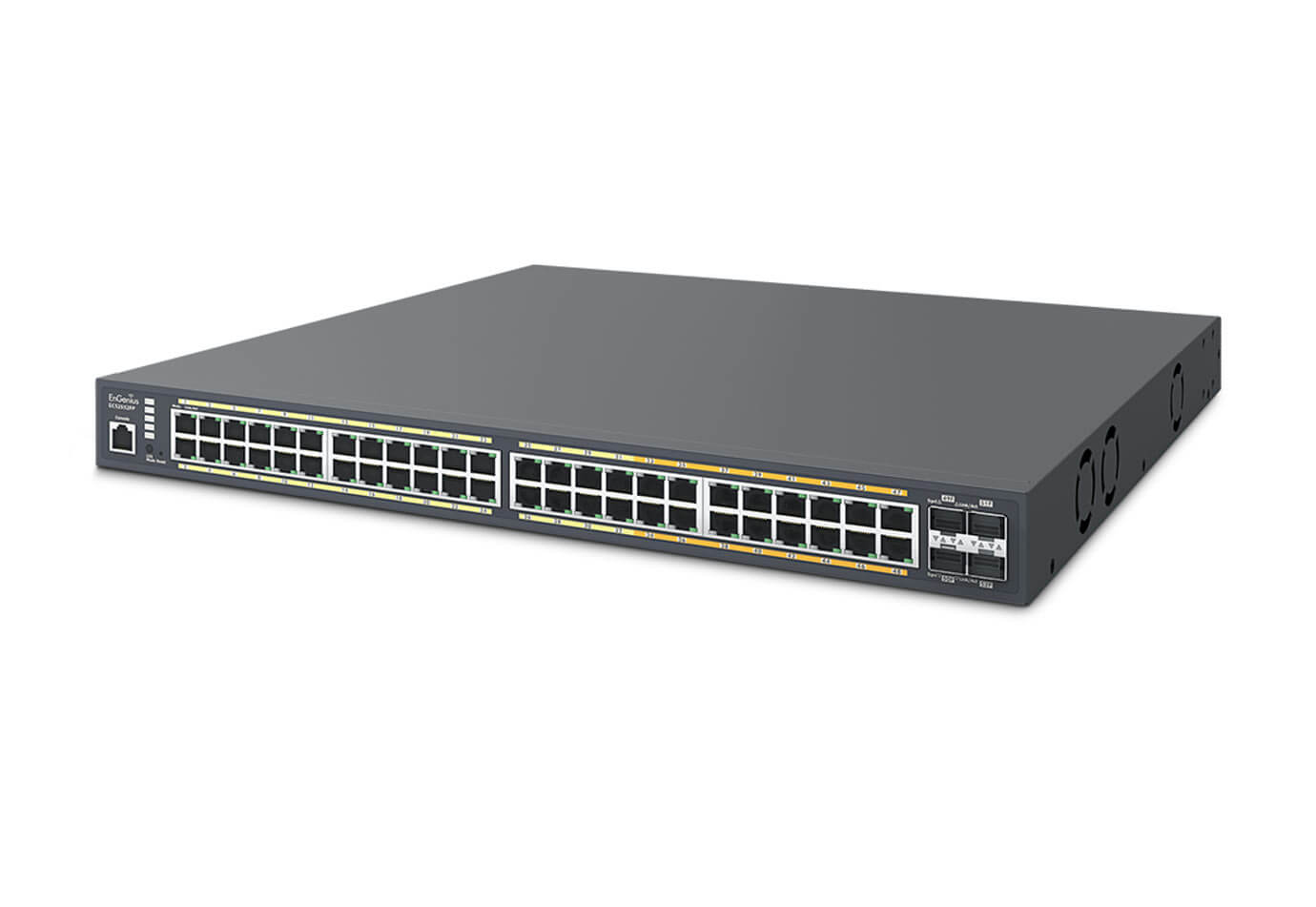

Cloud Managed Switch 32-port GbE + 16-port Multi-GbE PoE.af/at(+)
740W 4xSFP L2 19i
Model ECS2552FPEAN 655216010468
47 specifications
- Weight4.87 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
- MAC address table32000 entries
Overview
- Weight
- 4.87 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- MAC address table
- 32000 entries
- Brand
- EnGenius
- Category
- Network Switch
- Model
- ECS2552FP
- Part number
- ECS2552FP
- EAN / UPC
- 655216010468, 4713361935756
- Also known as
- EnGenius Cloud Managed Switch 32-port GbE + 16-port Multi-GbE PoE.af/at(+) 740W 4xSFP L2 19i
Specifications
47 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 32 |
| 2.5G Ethernet (copper) ports quantity | 16 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 224 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 48 |
| Total Power over Ethernet (PoE) budget | 740 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 310 mm |
| Depth | 440 mm |
| Height | 44 mm |
| Weight | 4.87 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 535 mm |
| Package depth | 350 mm |
| Package height | 100 mm |
| Package weight | 5.98 kg |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case net weight | 12 kg |
| Master (outer) case width | 220 mm |
| Master (outer) case length | 560 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 430 mm |
| Master (outer) case gross weight | 12.9 kg |
| Products per master (outer) case | 2 pc(s) |
