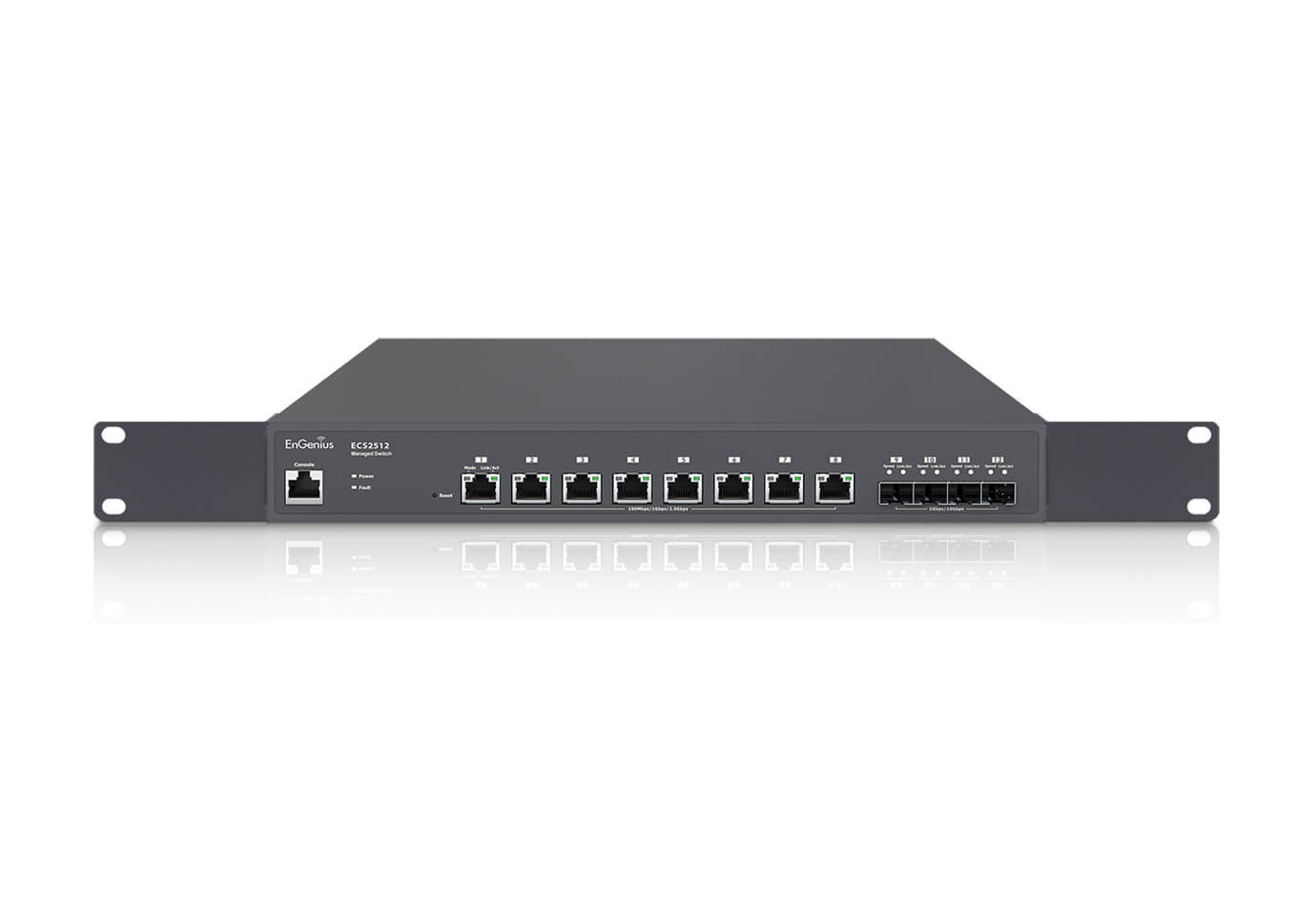

Cloud Managed Switch 8-port 2.5GbE 4xSFP+ L2+ 13i
Model ECS2512EAN 655216009752
53 specifications
- Memory512 MB
- Weight1.9 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
Overview
- Memory
- 512 MB
- Weight
- 1.9 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- Brand
- EnGenius
- Category
- Network Switch
- Model
- ECS2512
- Part number
- ECS2512
- EAN / UPC
- 655216009752, 4713361920042, 4713361935183
- Also known as
- EnGenius Cloud Managed Switch 8-port 2.5GbE 4xSFP+ L2+ 13i
Specifications
53 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Web-based management | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Flow control support | Yes |
| Link aggregation | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 120 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Memory type | SDRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 330 mm |
| Depth | 230 mm |
| Height | 44 mm |
| Weight | 1.9 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, LAN (RJ-45) |
| Quick start guide | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 395 mm |
| Package depth | 310 mm |
| Package height | 102 mm |
| Package weight | 2.75 kg |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case net weight | 8.23 kg |
| Master (outer) case width | 340 mm |
| Master (outer) case length | 420 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 330 mm |
| Master (outer) case gross weight | 8.93 kg |
| Products per master (outer) case | 3 pc(s) |
