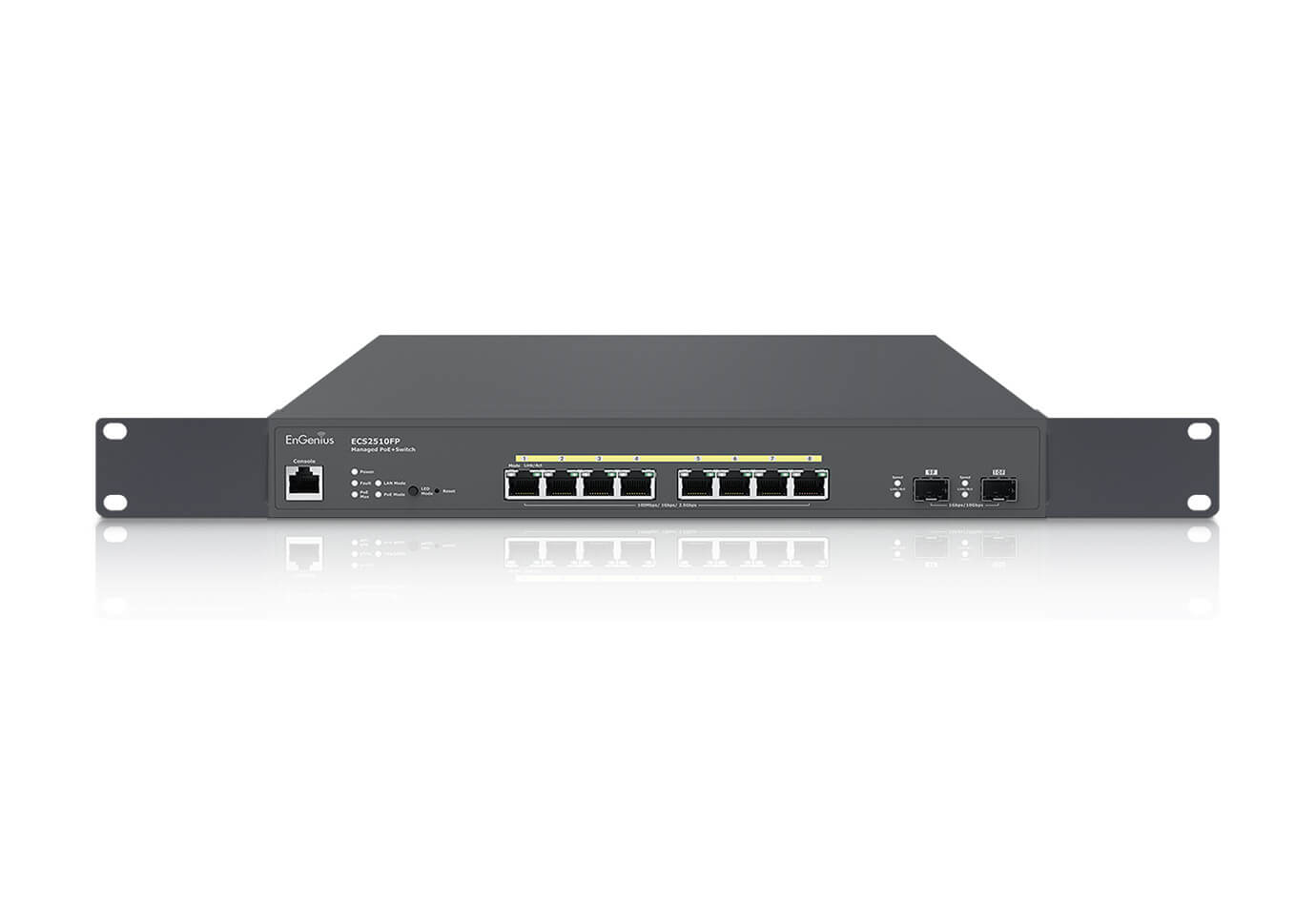

Cloud Managed Switch 8-port 2.5GbE PoE
13"
Model ECS2510FPEAN 655216010819
40 specifications
- Weight2.6 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table16000 entries
Overview
- Weight
- 2.6 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 16000 entries
- Brand
- EnGenius
- Category
- Network Switch
- Model
- ECS2510FP
- Part number
- ECS2510FP
- EAN / UPC
- 655216010819, 4713361920295, 4713361936029
- Also known as
- EnGenius Cloud Managed Switch 8-port 2.5GbE PoE 13"
Specifications
40 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 120 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Reset button | Yes |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 240 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 330 mm |
| Depth | 230 mm |
| Height | 44 mm |
| Weight | 2.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 394 mm |
| Package depth | 309 mm |
| Package height | 104 mm |
| Package weight | 3.45 kg |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case net weight | 10.4 kg |
| Master (outer) case width | 410 mm |
| Master (outer) case length | 330 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 350 mm |
| Master (outer) case gross weight | 10.8 kg |
| Products per master (outer) case | 3 pc(s) |
