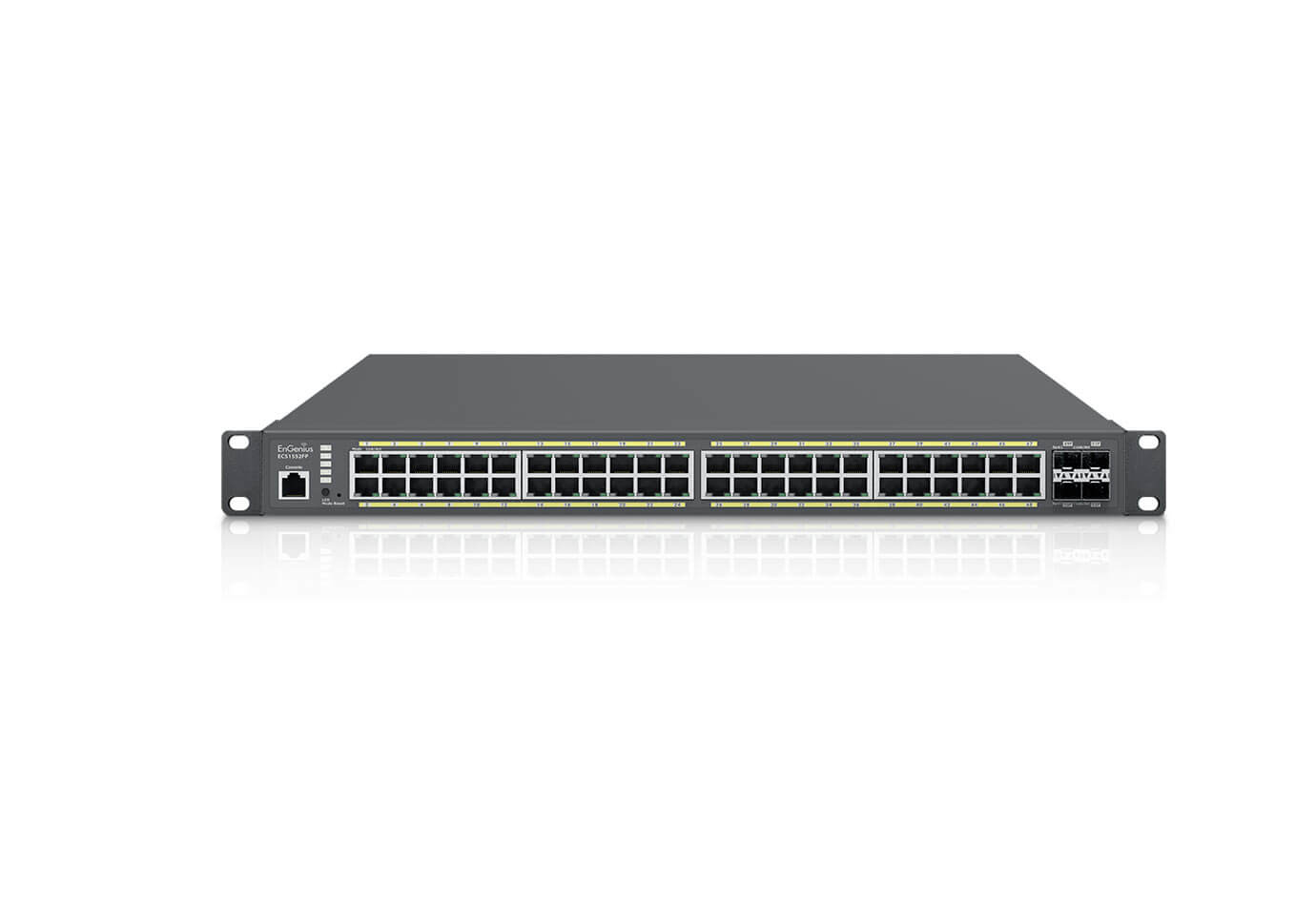

Cloud Managed Switch 48-port GbE PoE.af/at(+)
740W 4x10Gb SFP+ L2+ 19i
Model ECS1552FPEAN 655216009677
77 specifications
- Memory512 MB
- Type1U
- Weight4.75 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
Overview
- Memory
- 512 MB
- Type
- 1U
- Weight
- 4.75 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Brand
- EnGenius
- Category
- Network Switch
- Model
- ECS1552FP
- Part number
- ECS1552FP
- EAN / UPC
- 655216009677, 4713361935008, 4713361965005
- Also known as
- EnGenius Cloud Managed Switch 48-port GbE PoE.af/at(+) 740W 4x10Gb SFP+ L2+ 19i
Specifications
77 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 48 |
| SFP+ module slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 176 Gbit/s |
| Number of queues | 8 |
| Static route | Yes |
| Number of static routes | 63 |
| Number of IP interfaces | 20 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP relay, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | Port-based authentication |
| Authentication type | IEEE 802.1x, RADIUS |
| Queue scheduling algorithms | Strict Priority Queue (SPQ), SP, WRR+SP, Weighted Round Robin (WRR) |
| Security algorithms | 802.1x RADIUS, SSH, SSL/TLS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast features | Multicast forwarding |
| Number of multicast groups filtered | 256 |
| Multicast Listener Discovery (MLD) snooping | v1 |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP v1/v2c/v3 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Redundant power supply (RPS) support | No |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Total Power over Ethernet (PoE) budget | 740 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 310 mm |
| Height | 44 mm |
| Weight | 4.75 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 550 mm |
| Package depth | 430 mm |
| Package height | 105 mm |
| Package weight | 5.7 kg |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case net weight | 11.4 kg |
| Master (outer) case width | 230 mm |
| Master (outer) case length | 570 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 550 mm |
| Master (outer) case gross weight | 12.7 kg |
| Master (outer) case volume | 720000 cm³ |
| Products per master (outer) case | 2 pc(s) |
