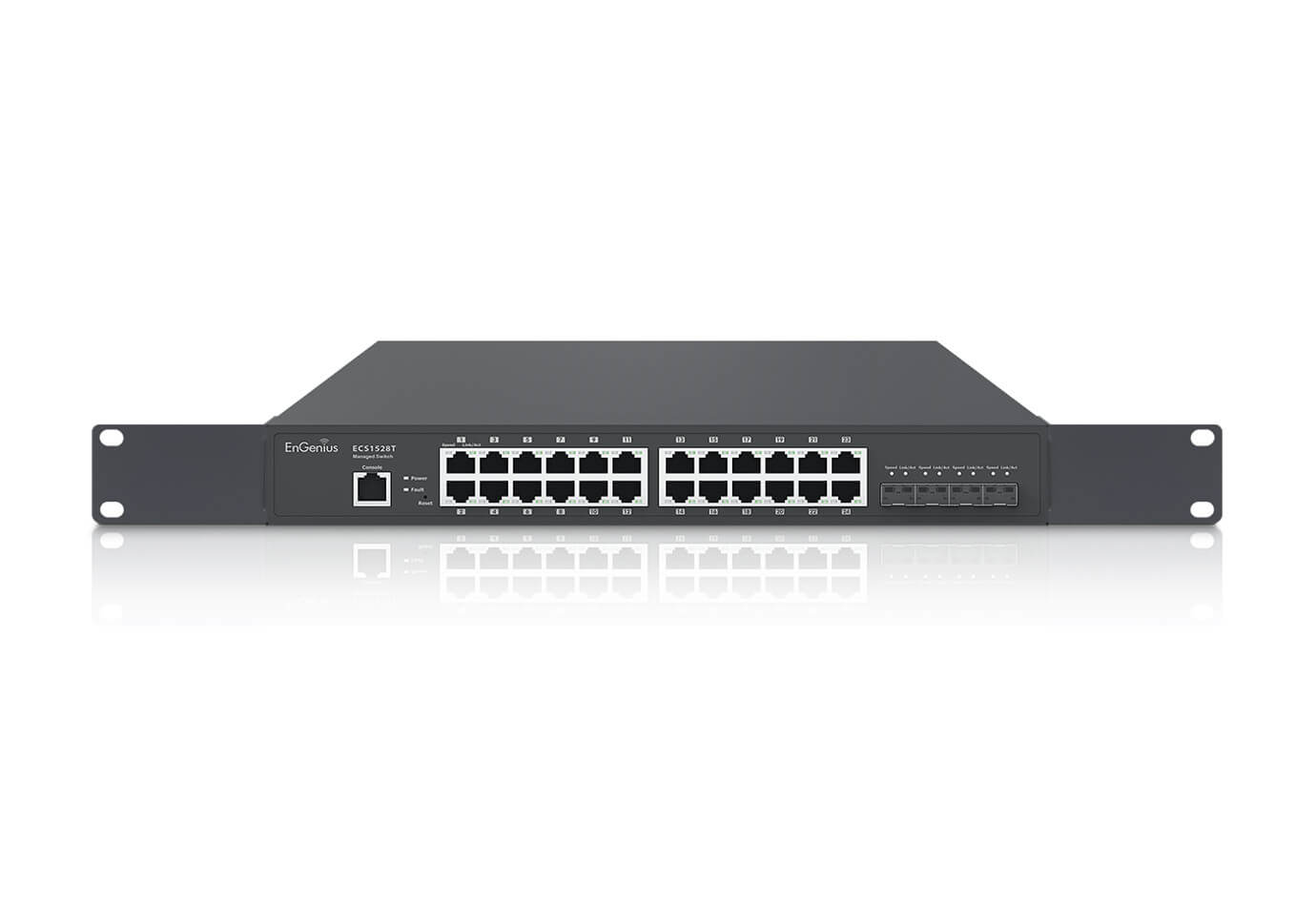

Cloud Managed Switch 24-port GbE 4xSFP+ L2+ 19i
Model ECS1528TEAN 655216010840
58 specifications
- Memory512 MB
- Weight1.9 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
Overview
- Memory
- 512 MB
- Weight
- 1.9 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- Brand
- EnGenius
- Category
- Network Switch
- Model
- ECS1528T
- Part number
- ECS1528T
- EAN / UPC
- 655216010840, 4713361936074
- Also known as
- EnGenius Cloud Managed Switch 24-port GbE 4xSFP+ L2+ 19i
Specifications
58 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 4 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP relay, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| IPv4 & IPv6 features | IPv6 TFTP, IPv6 Telnet |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Internal memory | 512 MB |
| Flash memory | 128 MB |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 330.2 mm |
| Depth | 228.6 mm |
| Height | 43.9 mm |
| Weight | 1.9 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, LAN (RJ-45) |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 377 mm |
| Package depth | 297 mm |
| Package height | 100 mm |
| Package weight | 2.76 kg |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case net weight | 8.28 kg |
| Master (outer) case width | 322 mm |
| Master (outer) case length | 404 mm |
| Master (outer) case height | 314 mm |
| Master (outer) case gross weight | 8.91 kg |
| Products per master (outer) case | 3 pc(s) |
