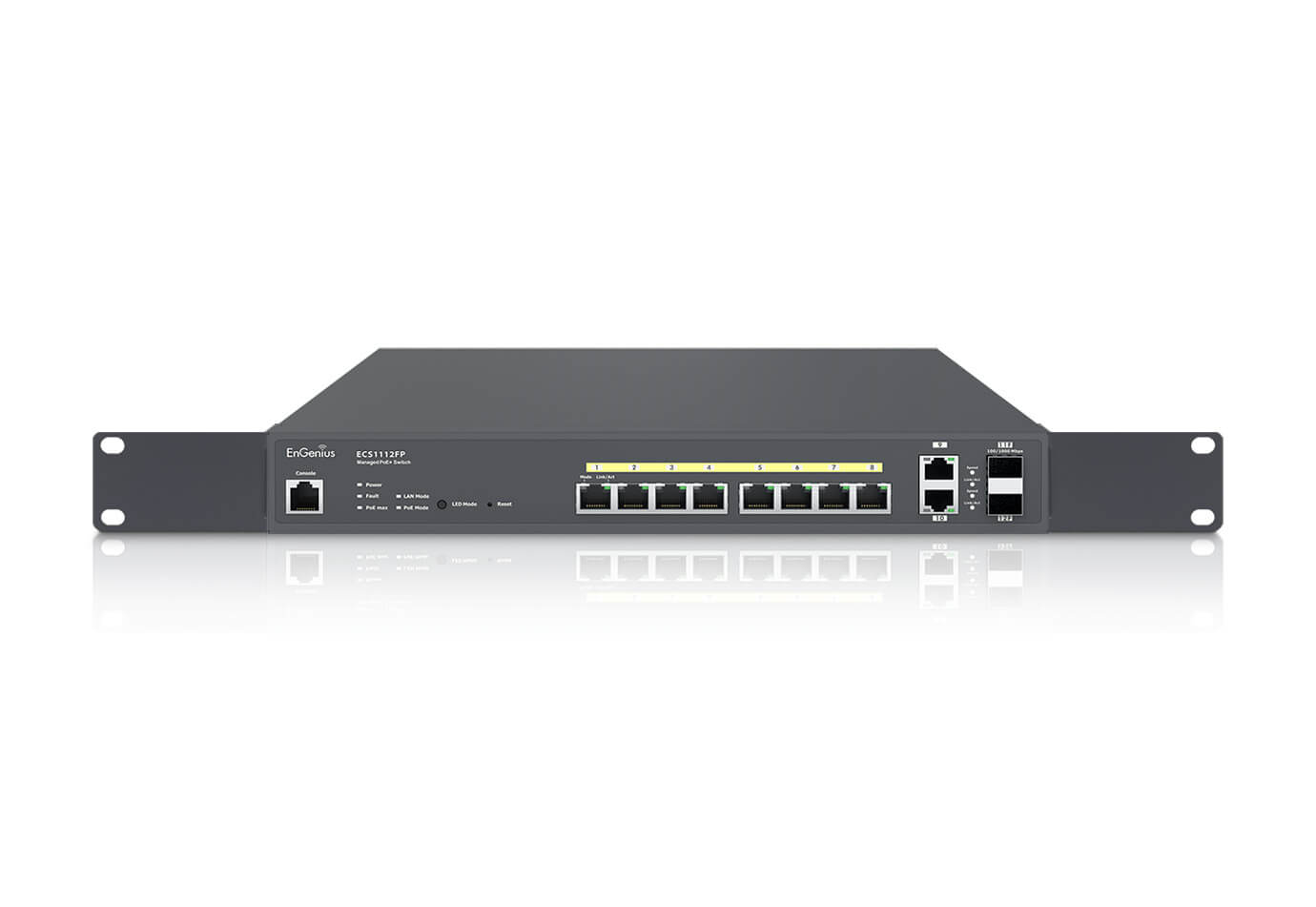

Cloud Managed Switch 8-port GbE PoE.af/at(+)
130W 2xGbE 2xSFP L2+ 13i
Model ECS1112FPEAN 655216009844
51 specifications
- Memory256 MB
- Weight1.9 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity10
- 10G supportNo
Overview
- Memory
- 256 MB
- Weight
- 1.9 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 10
- 10G support
- No
- Brand
- EnGenius
- Category
- Network Switch
- Model
- ECS1112FP
- Part number
- ECS1112FP
- EAN / UPC
- 655216009844, 4713361935299
- Also known as
- EnGenius Cloud Managed Switch 8-port GbE PoE.af/at(+) 130W 2xGbE 2xSFP L2+ 13i
Specifications
51 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 100BASE-TX, 1000BASE-T |
| Full duplex | Yes |
| Routing entries | 192 |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
Security
| Specification | Value |
|---|---|
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Number of multicast groups filtered | 256 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Internal memory | 256 MB |
| Flash memory | 32 MB |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 130 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 330 mm |
| Depth | 229 mm |
| Height | 44 mm |
| Weight | 1.9 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 377 mm |
| Package depth | 297 mm |
| Package height | 100 mm |
| Package weight | 2.85 kg |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case net weight | 8.55 kg |
| Master (outer) case width | 322 mm |
| Master (outer) case length | 404 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 314 mm |
| Master (outer) case gross weight | 9.4 kg |
| Products per master (outer) case | 3 pc(s) |
