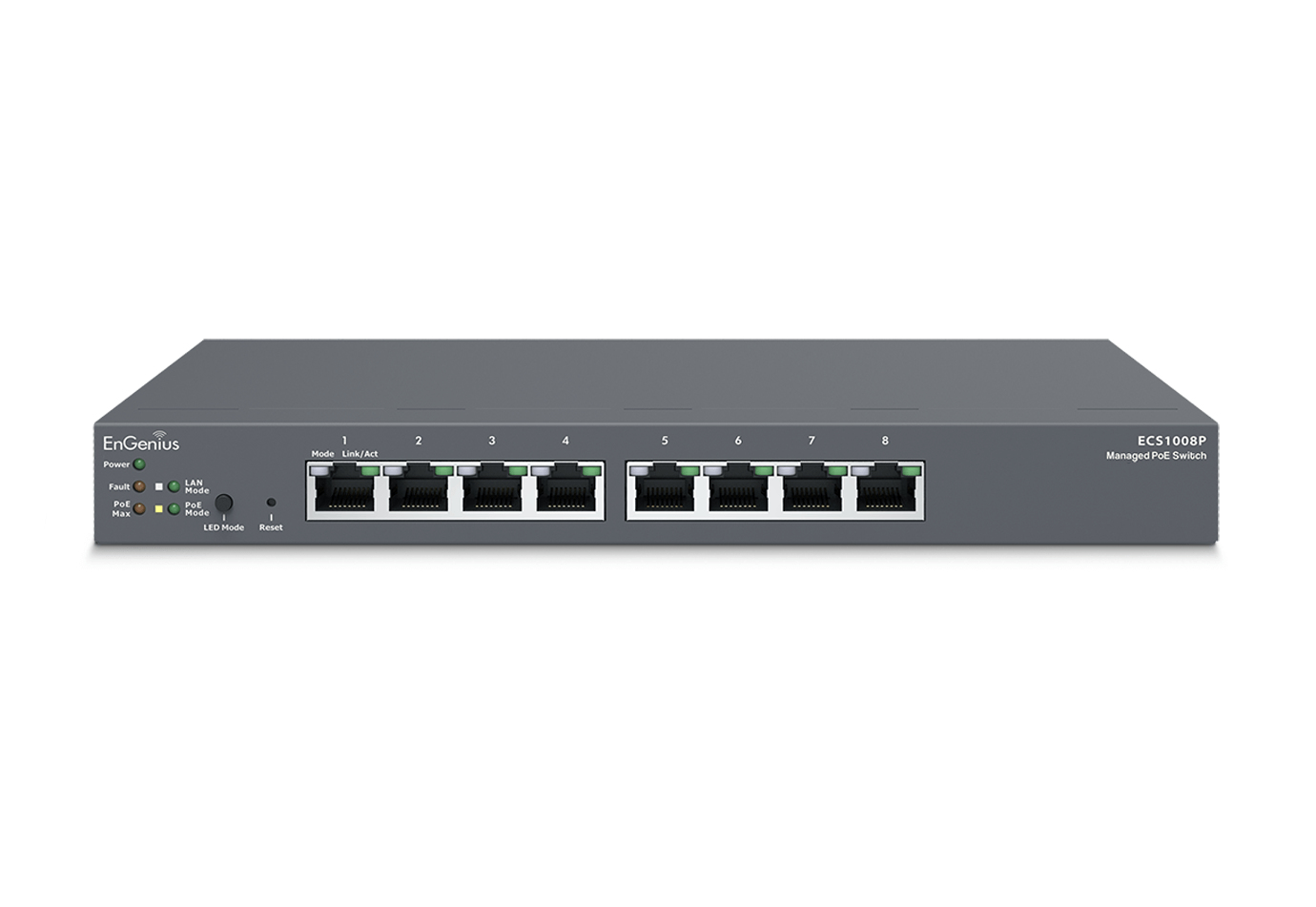

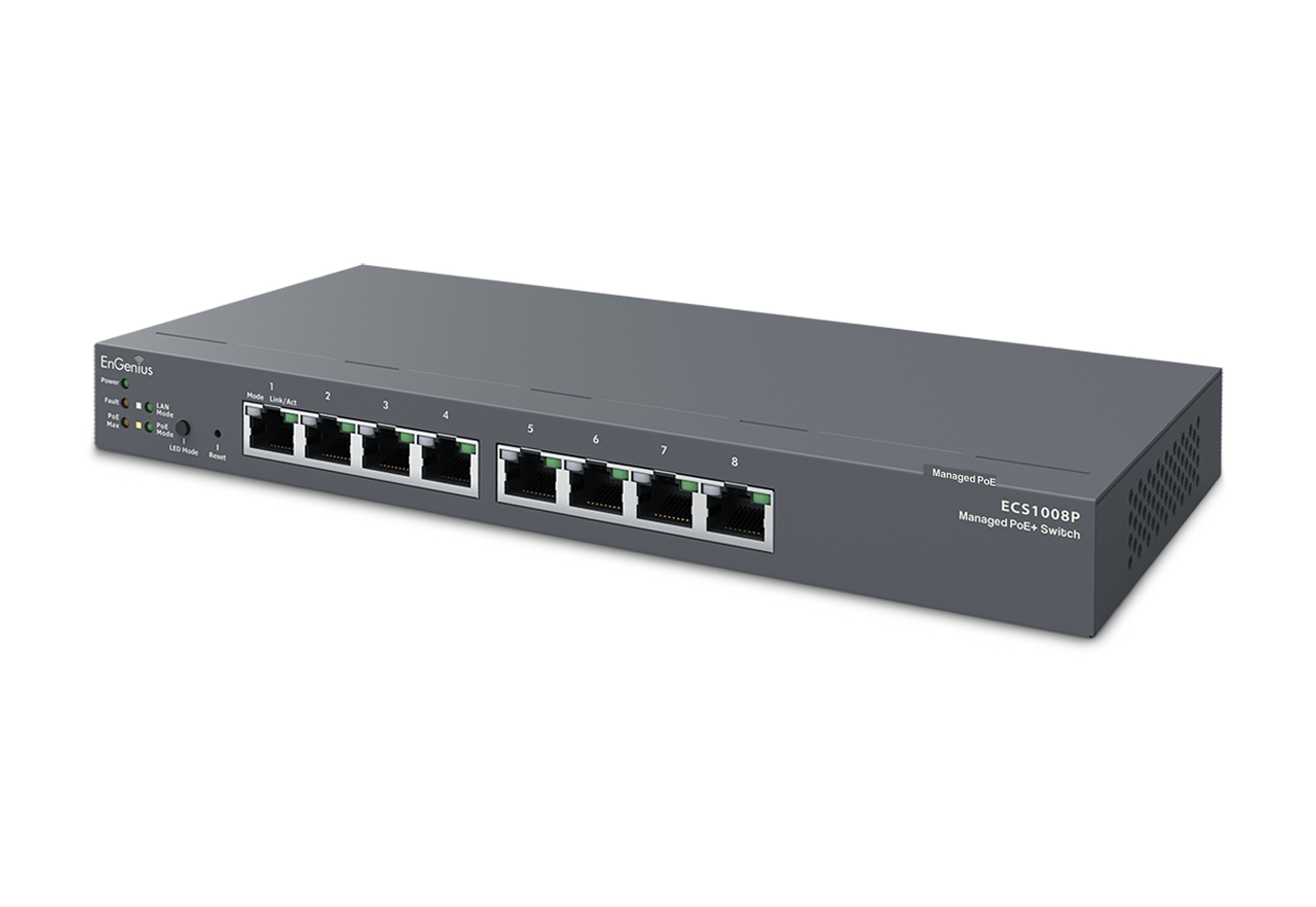

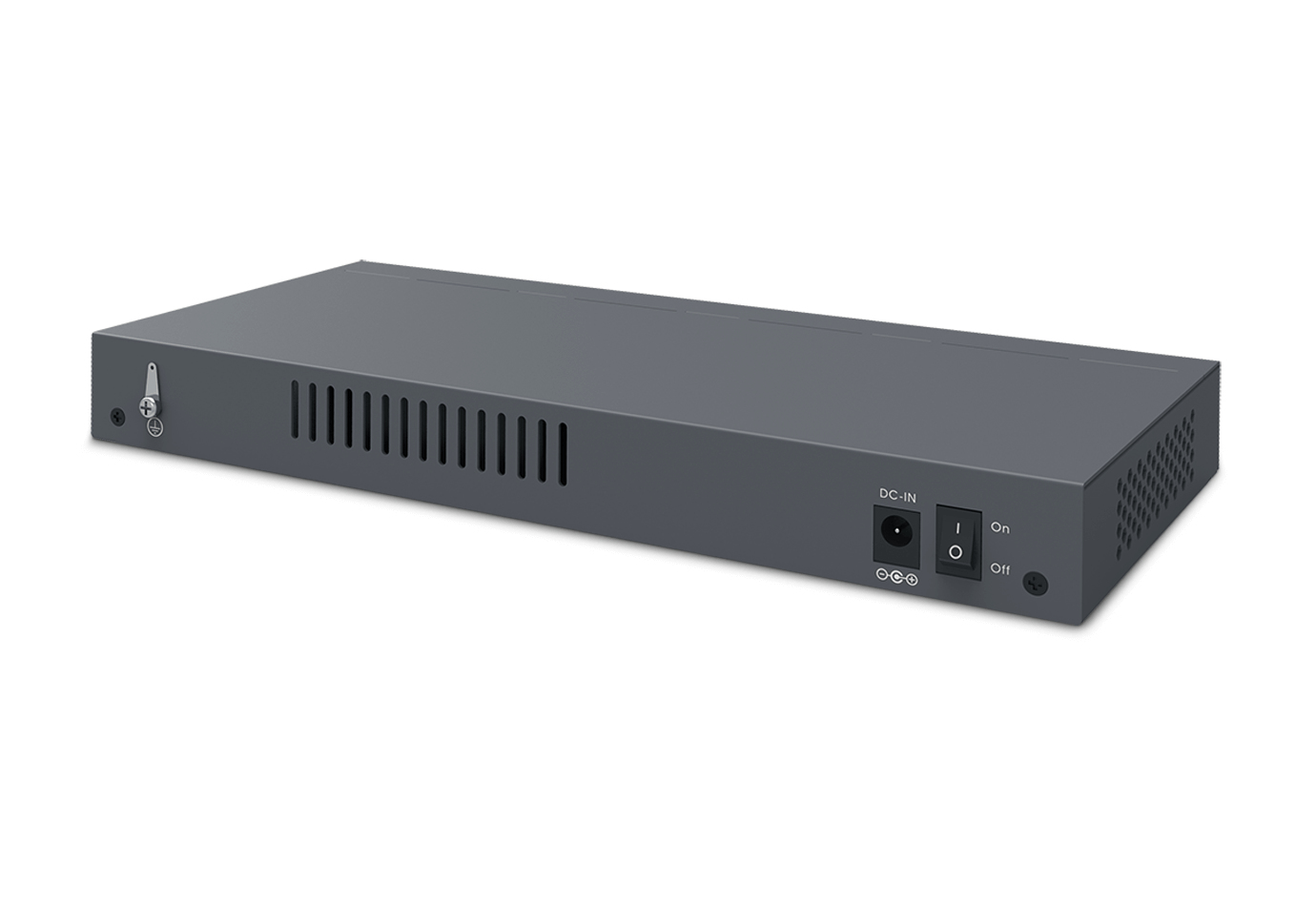

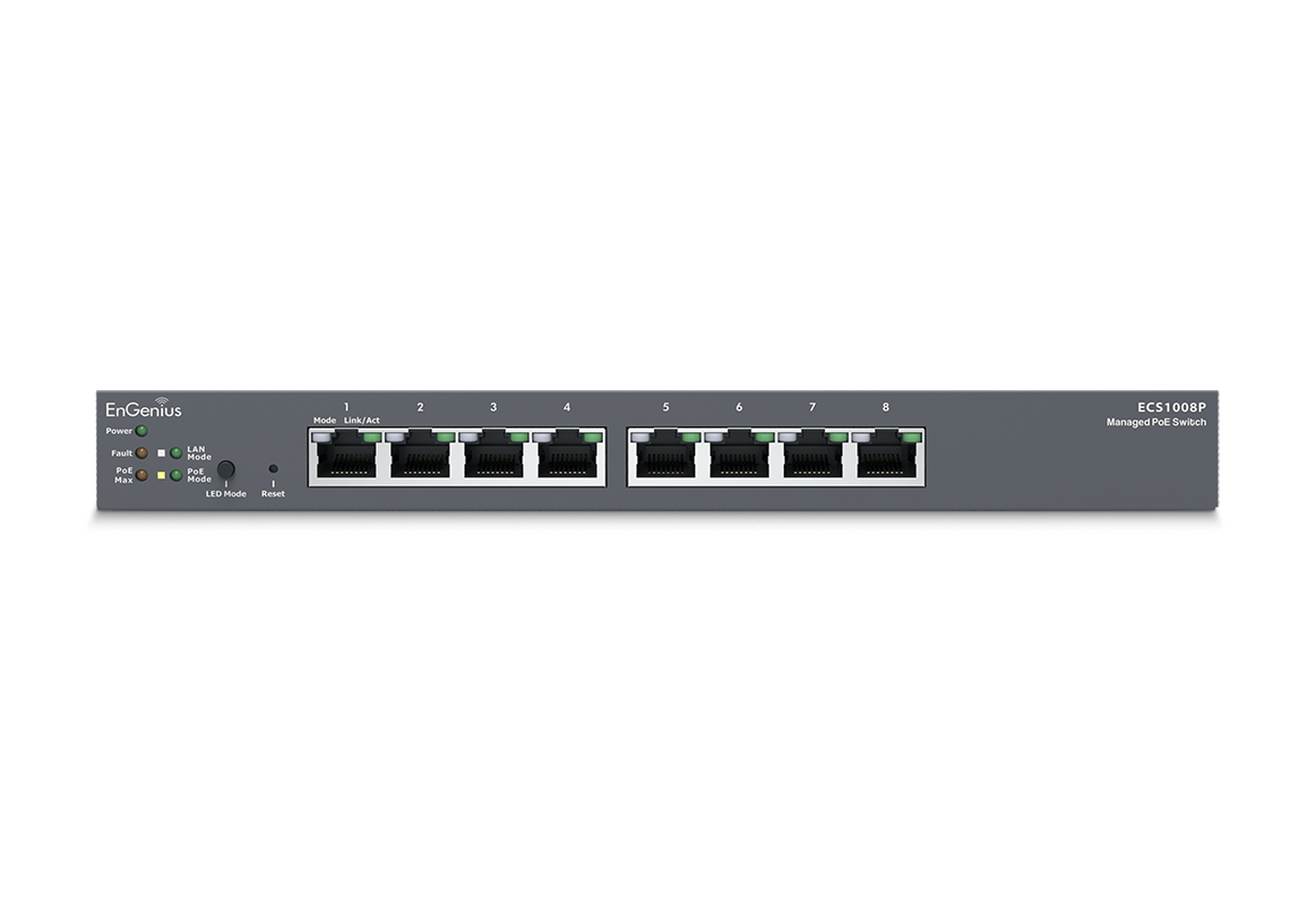

Cloud Managed Switch 8-port GbE PoE.af
55W L2+ DT
Model ECS1008PEAN 655216009707
72 specifications
- Memory256 MB
- Weight1.5 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
Overview
- Memory
- 256 MB
- Weight
- 1.5 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- Brand
- EnGenius
- Category
- Network Switch
- Model
- ECS1008P
- Part number
- ECS1008P
- EAN / UPC
- 655216009707, 4713361918018, 4713361935039
- Also known as
- EnGenius Cloud Managed Switch 8-port GbE PoE.af 55W L2+ DT
Specifications
72 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Full duplex | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 16 Gbit/s |
| Static route | Yes |
| Number of static routes | 63 |
| Number of IP interfaces | 20 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP relay, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | Port-based authentication |
| Authentication type | IEEE 802.1x, RADIUS |
| Security algorithms | 802.1x RADIUS, SSH, SSL/TLS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast features | Multicast forwarding |
| Number of multicast groups filtered | 256 |
| Multicast Listener Discovery (MLD) snooping | v1 |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP v1/v2c/v3 |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Yes |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 55 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 240 mm |
| Depth | 105 mm |
| Height | 27 mm |
| Weight | 1.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 270 mm |
| Package depth | 165 mm |
| Package height | 85 mm |
| Package weight | 1.08 kg |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case net weight | 10.8 kg |
| Master (outer) case width | 357 mm |
| Master (outer) case length | 452 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 278 mm |
| Master (outer) case gross weight | 11.5 kg |
| Products per master (outer) case | 10 pc(s) |
