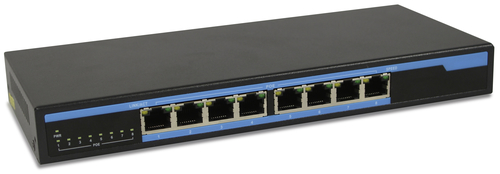

Digicom SWG08-POE Managed Fast Ethernet (10/100) Power over Ethernet (PoE)
Model SWG08-POEPart no. 8E4606EAN 8030476006314
33 specifications
- Speed1000 Mbit/s
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table8192 entries
- StackableYes
Overview
- Speed
- 1000 Mbit/s
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 8192 entries
- Stackable
- Yes
- Brand
- Digicom
- Category
- Network Switch
- Model
- SWG08-POE
- Part number
- 8E4606
- EAN / UPC
- 8030476006314
- Also known as
- Digicom SWG08-POE Managed Fast Ethernet (10/100) Power over Ethernet (PoE)
Specifications
33 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
| 10G support | No |
| Cable types supported | Cat5 |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8192 entries |
| Store-and-forward | Yes |
| Packet forwarding rate (1 Gbps) | 1.488 pps |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Input current | 3 A |
| Input voltage | 48 V |
| Power consumption (max) | 125 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 240 mm |
| Depth | 104 mm |
| Height | 28.5 mm |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
| User guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CE |
