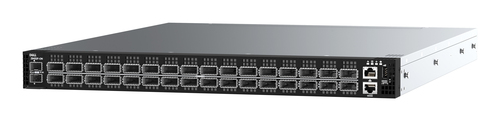

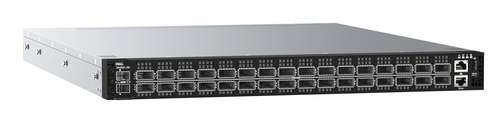

Z9432F-ON Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Black
Model Z9432F-ONPart no. Z9432F264
77 specifications
- ProcessorAtom C3758
- Memory32000 MB
- Type1U
- Weight9.98 kg
- ColourBlack
- Switch typeManaged
Overview
- Processor
- Atom C3758
- Memory
- 32000 MB
- Type
- 1U
- Weight
- 9.98 kg
- Colour
- Black
- Switch type
- Managed
- Brand
- Dell
- Category
- Network Switch
- Model
- Z9432F-ON
- Part number
- Z9432F264
- Also known as
- DELL Z9432F-ON Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Black
Specifications
77 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Traffic classification | Yes |
| Traffic shaping | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Number of management ports | 2 pc(s) |
| Fiber ports quantity | 32 |
| Fiber optic connector | QSFP-DD, SFP+ |
| Console port | RJ-45 |
| QSFP56 ports quantity | 32 |
| Power cables quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Qaz, IEEE 802.1Qbb |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Policy-based routing | Yes |
| Flow control support | Yes |
| IPv4 routes | 400 |
| IPv6 routes | 300 |
| Link aggregation | Yes |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 156000 entries |
| Switching capacity | 25600 Gbit/s |
| Throughput | 5200 Mpps |
| Forwarding rate | 5200 Mpps |
| Jumbo frames support | Yes |
| Packet buffer memory | 132 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP relay, DHCP server, DHCP snooping |
| Security algorithms | 802.1x RADIUS, SNMPv3, WPA2-Enterprise |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast MAC address table | 1000 entries |
| IPv6 multicast entries | 4000 |
Protocols
| Specification | Value |
|---|---|
| Management protocols | CLI, SNMP, REST, APIs |
| Supported network protocols | OSPF, BGP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Redundant fans support | Yes |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor model | Atom C3758 |
| Processor frequency | 2200 MHz |
| Memory type | DDR4-SDRAM |
| Internal memory | 32000 MB |
Power
| Specification | Value |
|---|---|
| Power source | AC/DC |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Input voltage | 40 - 60 V |
| Power consumption (typical) | 900 W |
| Power consumption (max) | 1404 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 10668 m |
| Heat dissipation | 4647.3 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 438.5 mm |
| Depth | 550 mm |
| Height | 43 mm |
| Weight | 9.98 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS |
