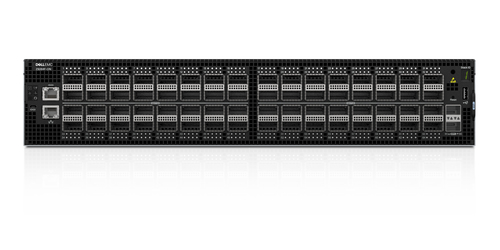

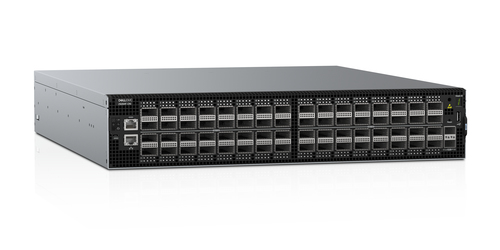

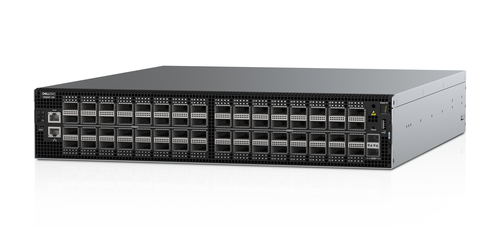

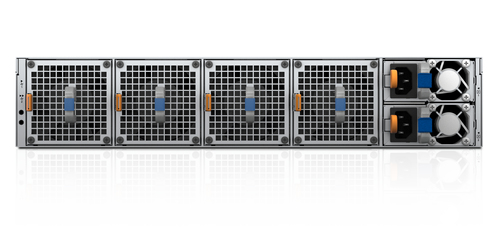

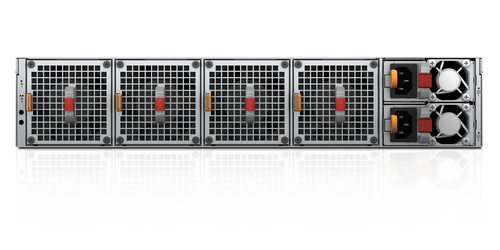

Z9264F-ON Managed L2/L3 2U Black
Model Z9264F-ONPart no. DNZ9264F_INDUSTRY-STANDARD
50 specifications
- Type2U
- Weight20 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports typeNo
- 10G supportYes
Overview
- Type
- 2U
- Weight
- 20 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports type
- No
- 10G support
- Yes
- Brand
- Dell
- Category
- Network Switch
- Model
- Z9264F-ON
- Part numbers
- DNZ9264F_INDUSTRY-STANDARD, DNZ9264F_ENTRY-LEVEL, Z9264F-ON
- Also known as
- DELL Z9264F-ON Managed L2/L3 2U Black
Specifications
50 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| MIB support | IP, IF, LLDP EXT1/3, LAG, Dell-Vendor, TCP, UDP, SNMPv2, ETHERLIKE, SFLOW, PFC |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports type | No |
| SFP+ module slots quantity | 2 |
| Fiber ports quantity | 64 |
| Fiber optic connector | QSFP28 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3x |
| 10G support | Yes |
| Port mirroring | Yes |
| Address Resolution Protocol (ARP) entries (max) | 128000 |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
Optical fiber
| Specification | Value |
|---|---|
| Switching optical modules type | 100 Gigabit Ethernet |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 160000 entries |
| Forwarding rate | 4200 Mpps |
| Packet buffer memory | 42 MB |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) IPv4 entries | 128000 |
| Access Control List (ACL) IPv6 entries | 64000 |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | CLI SNMP REST API’s |
| GARP VLAN Registration Protocol (GVRP) | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 2U |
| Product colour | Black |
| LED indicators | Yes |
| Backlight display | Yes |
| Display type | LED |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| List of RFCs | IP, IPv4, IPv6, RIP, OSPF, IS-IS, BGP |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 900 W |
| Power consumption (max) | 1104 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 442 mm |
| Depth | 510 mm |
| Height | 85.6 mm |
| Weight | 20 kg |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
