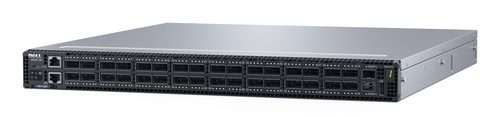

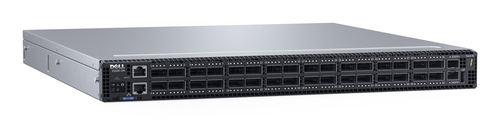

Dell Z9100-ON Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Black
Model Z9100-ONPart no. 210-AESZEAN 5397184124604
34 specifications
- Type1U
- Weight9.98 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity1
- 10G supportYes
Overview
- Type
- 1U
- Weight
- 9.98 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 1
- 10G support
- Yes
- Brand
- Dell
- Category
- Network Switch
- Model
- Z9100-ON
- Part numbers
- 210-AESZ, DNZ9100, 210-AETE, 210-AESX, 210-AETC
- EAN / UPC
- 5397184124604
- Also known as
- DELL Z9100-ON Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Black
Specifications
34 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| ARP inspection | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 1 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 32 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| 10G support | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 136000 entries |
| Switching capacity | 6400 Gbit/s |
| Store-and-forward | Yes |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | IPv4, IPv6 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| Power consumption (typical) | 52.8 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 85% |
| Heat dissipation | 151.4 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 431.8 mm |
| Depth | 457.2 mm |
| Height | 25.4 mm |
| Weight | 9.98 kg |
