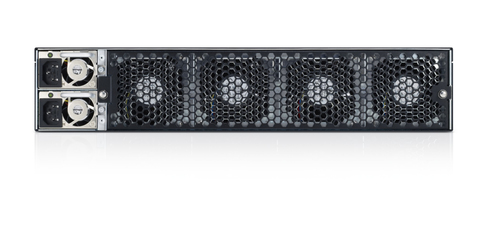

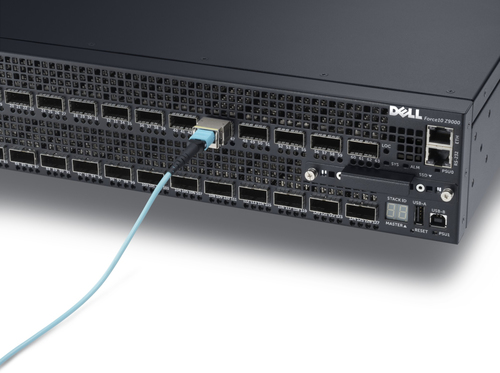

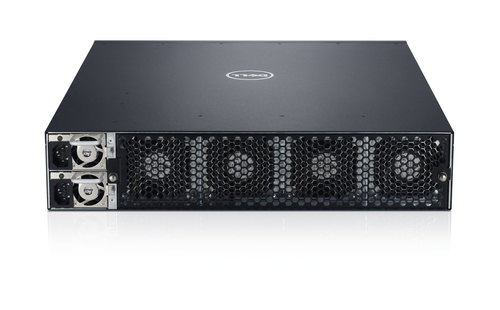

Dell Force10 Z9000 L2/L3 Black
Model Z9000Part no. 210-38651
27 specifications
- Weight17.7 kg
- ColourBlack
- Switch layerL2/L3
- Basic switching RJ-45 Ethernet ports typeNo
- 10G supportYes
- Switching optical modules type40 Gigabit Ethernet
Overview
- Weight
- 17.7 kg
- Colour
- Black
- Switch layer
- L2/L3
- Basic switching RJ-45 Ethernet ports type
- No
- 10G support
- Yes
- Switching optical modules type
- 40 Gigabit Ethernet
- Brand
- Dell
- Category
- Network Switch
- Model
- Z9000
- Part numbers
- 210-38651, 210-38652
- Also known as
- DELL Force10 Z9000 L2/L3 Black
Specifications
27 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch layer | L2/L3 |
| MIB support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports type | No |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 1000BASE-T |
Optical fiber
| Specification | Value |
|---|---|
| Switching optical modules type | 40 Gigabit Ethernet |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | UDP, TCP, Telnet, FTP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Number of fans | 4 fan(s) |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 40 - 60 V |
| Power consumption (max) | 800 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 610 mm |
| Height | 88 mm |
| Weight | 17.7 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
What people say
Reviews & ratings
Dell Force10 Z9000 L2/L3 Black
No reviews yet
Be the first to tell others how Dell Force10 Z9000 L2/L3 Black works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Dell Force10 Z9000 L2/L3 Black
All network switch comparisons- Dell Force10 Z9000 L2/L3 Black vsDell Force10 S6000 Managed L2/L3 1U BlackCompare specs
- Dell Force10 Z9000 L2/L3 Black vsDell Force10 S4820T Managed L2Compare specs
- Dell Force10 Z9000 L2/L3 Black vsDell Force10 Z9500 L2/L3 BlackCompare specs
- Dell Force10 Z9000 L2/L3 Black vsDell Force10 S60 Managed L3 Gigabit Ethernet (10/100/1000) 1U BlackCompare specs

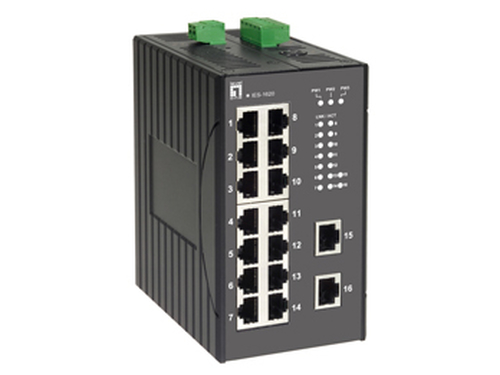

- Dell Force10 Z9000 L2/L3 Black vsLevelOne 16-Port Fast Ethernet Industrial Switch, DIN-Rail, -40°C to 85°CCompare specs
