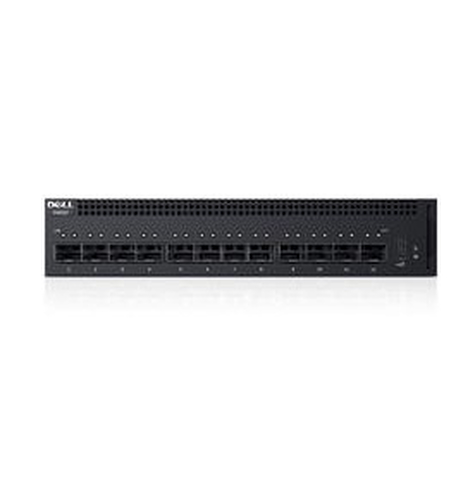

Dell X-Series X1018 Managed L2+ Gigabit Ethernet (10/100/1000) 1U Black

Dell X-Series X1018 Managed L2+ Gigabit Ethernet (10/100/1000) 1U Black

Model X1018Part no. DNX1018EAN 5415247059059

50 specifications
  • Type1U
  • Weight1.76 kg
  • ColourBlack
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity16
  • 10G supportNo
See all specifications

Overview

Type
1U
Weight
1.76 kg
Colour
Black
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
16
10G support
No
Brand
Dell
Model
X1018
Part numbers
DNX1018, 210-AEIK
EAN / UPC
5415247059059, 2000000639482, 4053162851337, 5397063769070 +2 more
Also known as
DELL X-Series X1018 Managed L2+ Gigabit Ethernet (10/100/1000) 1U Black

Specifications

50 specifications in 13 groups

Management features

Switch typeManaged
Switch layerL2+
Quality of Service (QoS) supportYes
Web-based managementYes
System event logYes
MIB supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity0
SFP module slots quantity2

Network

Networking standardsIEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Auto MDI/MDI-XYes
Broadcast storm controlYes
Flow control supportYes
Link aggregationYes
Spanning tree protocolYes
VLAN supportYes
Number of VLANs4096

Data transmission

MAC address table16000 entries
Switching capacity36 Gbit/s
Throughput26.8 Mpps
Number of queues4
Jumbo frames supportYes
Packet buffer memory1 MB

Security

DHCP featuresDHCP server, DHCP client
Access Control List (ACL)Yes
IGMP snoopingYes
Static port securityYes

Multicast features

Multicast supportYes

Protocols

Management protocolsSNMPv1, SNMPv2, SNMPv3, SMIv1, SMIv2, IGMPv1, IGMPv2, IGMPv3
Supported network protocolsIPv4, IPv6, HTTP, TCP, IP, ICMP, TFTP, BOOTP, UDP, ARP, GARP, GMP, LLDP, RMON, MSTP, UDLD, TLS, PPP, Telnet

Design

Rack mountingYes
StackableNo
Form factor1U
Product colourBlack
LED indicatorsYes

Performance

Firmware upgradeableYes

Power

Output power40 W
Power consumption (max)21.5 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 80%
Heat dissipation74 BTU/h

Weight & dimensions

Width209 mm
Depth250 mm
Height41.2 mm
Weight1.76 kg
