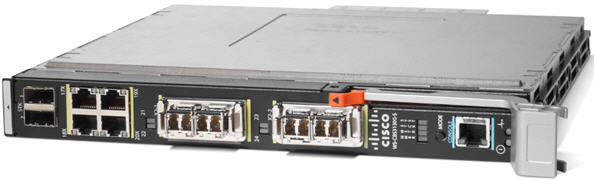

Dell WS-CBS3130G-S network switch Managed L3 Power over Ethernet (PoE)
Model WS-CBS3130G-S
58 specifications
- Memory256 MB
- Speed1 Gbit/s
- ConnectivityWired
- Weight1.8 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity4
Overview
- Memory
- 256 MB
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 1.8 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 4
- Brand
- Dell
- Category
- Network Switch
- Model
- WS-CBS3130G-S
- Part number
- WS-CBS3130G-S
- Also known as
- DELL WS-CBS3130G-S network switch Managed L3 Power over Ethernet (PoE)
Specifications
58 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| MIB support | RIPv1/2, OSPF, EIGRP, BGPv4 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| Console port | RS-232 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 1000BASE-TX, 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Routing entries | 11000 |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 1000BASE‑LH, 1000BASE‑LX, 1000BASE‑SX, 10GBASE-LRM, 10GBASE-SR |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 6000 entries |
| Supported data transfer rates | 10/100 Mbps |
| Switching capacity | 128 Gbit/s |
| Number of queues | 4 |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, SSH, SSL/TLS |
| Static port security | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | IGMP, SNMPv1/2c/3 |
| Data link protocols | DTP, UDLD, TFTP, NTP |
| Supported network protocols | IPv6 |
Design
| Specification | Value |
|---|---|
| LED indicators | Status, Yes |
| Safety | UL/CUL, TUV, CB/IEC, CE |
| Electromagnetic compatibility | FCC, EN, VCCI, AS/NZS CISPR22, MIC, EMC, GOST |
Performance
| Specification | Value |
|---|---|
| Memory type | SDRAM |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Mean time between failures (MTBF) | 390000 h |
Power
| Specification | Value |
|---|---|
| Input current | 6.25 A |
| Input voltage | 12 V |
| Power consumption (typical) | 75 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 248 x 231 x 29 mm |
| Connectivity technology | Wired |
| Authentication method | NAC |
| Networking features | Gigabit Ethernet |
| Packet transfer speed | 59.2 mpps |
| Wi-Fi | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.8 kg |
