1000) 1U Black

Model S60Part no. 210-38667EAN 5397063839483

62 specifications

Overview

Brand: Dell
Category: Network Switch
Model: S60
Part numbers: 210-38667, 210-ABNS, 210-38665, 210-38664, 210-38666
EAN / UPC: 5397063839483, 5397063839490, 5397063839506, 5397063839445

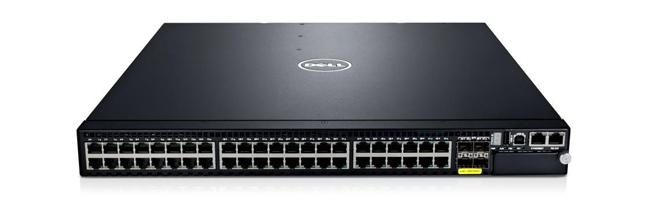

Also known as: DELL Force10 S60 Managed L3 Gigabit Ethernet (10/100/1000) 1U Black

62 specifications in 15 groups

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	44
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity	0
SFP module slots quantity	4
Console port	RJ-45
USB 2.0 ports quantity	3

Specification	Value
Networking standards	IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ak, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	Yes
Copper ethernet cabling technology	1000BASE-T, 1000BASE-TX, 100BASE-T, 100BASE-TX, 10BASE-T
IP routing	Yes
Flow control support	Yes
IP address table	16000
Link aggregation	Yes
VLAN support	Yes
Number of VLANs	4096

Specification	Value
Multicast support	Yes

Specification	Value
Management protocols	SNMPv1, IGMPv1, IGMPv2, IGMPv3, SSM, PIM-SM, SMIv1, SMIv2
Supported network protocols	FTP, IPv4, IPv6, UDP, DLSw, TCP, DNS, ARP, MD5, ICMP, TFTP, Telnet, NTPv3, CIDR, BOOTP, VRRP, ICMPv6, RIPv1, RIPv2, OSPF, NSSA, OSPFv2, BGPv4, ASN, RMON, LLDP

Specification	Value
Expansion module support	Yes
Internal memory	2048 MB
Flash memory	8192 MB
Noise level	71.8 dB
Mean time between failures (MTBF)	169315 h

Specification	Value
Redundant power supply (RPS) support	Yes
Number of power supply units	1
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	225 W

Specification	Value
Power over Ethernet (PoE)	No

Specification	Value
Operating temperature (T-T)	-5 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Heat dissipation	597 BTU/h

Specification	Value
Manual	Yes
User guide	Yes

Specification	Value
Certification	AS/NZS CISPR, ICES-003, EN, VCCI, FCC CFR, EN, RoHS, NEBS
