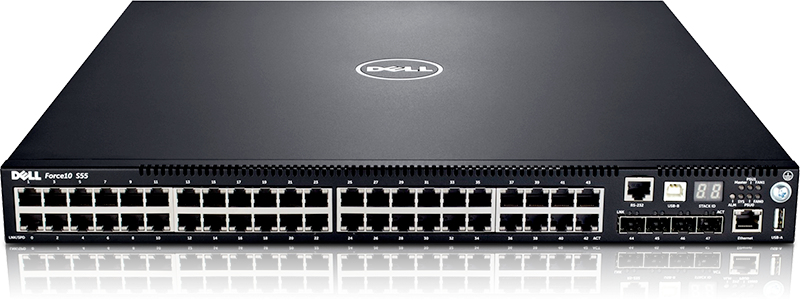

Dell Force10 S55 Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Black
Model S55Part no. 210-38662EAN 5397063839476
61 specifications
- Memory2048 MB
- Noise63.9 dB
- Type1U
- Weight6.54 kg
- ColourBlack
- Switch typeManaged
Overview
- Memory
- 2048 MB
- Noise
- 63.9 dB
- Type
- 1U
- Weight
- 6.54 kg
- Colour
- Black
- Switch type
- Managed
- Brand
- Dell
- Category
- Network Switch
- Model
- S55
- Part numbers
- 210-38662, 210-38663, 210-38660, 210-38661
- EAN / UPC
- 5397063839476, 5397063839452, 5397063839469
- Also known as
- DELL Force10 S55 Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Black
Specifications
61 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| System event log | Yes |
| MIB support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 44 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 4 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 3 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ak, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 1000BASE-TX, 100BASE-T, 100BASE-TX, 10BASE-T |
| IP routing | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 4096 |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 10GBASE-CX4 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 176 Gbit/s |
| Throughput | 131 Mpps |
| Latency (1 Gbps) | 5 µs |
| Number of queues | 4 |
| Jumbo frames support | Yes |
| Packet buffer memory | 4 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | IGMPv1, IGMPv2, IGMPv3 |
| Supported network protocols | ARP, ICMP, FTP, IPv4, IPv6, UDP, TCP, MD5, TFTP, DNS, NTPv3, CIDR, BOOTP, VRRP, ICMPv6, Telnet, RIPv1, RIPv2, NSSA, OSPFv2 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
| Safety | UL/CSA, EN, IEC, FDA CFR, China CCC |
Performance
| Specification | Value |
|---|---|
| Expansion module support | Yes |
| Internal memory | 2048 MB |
| Noise level | 63.9 dB |
| Mean time between failures (MTBF) | 169315 h |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| Input current | 3.6 A |
| Input voltage | -48 V |
| Power consumption (typical) | 130 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 442.5 mm |
| Depth | 476.2 mm |
| Height | 44.4 mm |
| Weight | 6.54 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| User guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | AS/NZS CISPR 22, ICES-003, EN 55022 (CISPR 22), VCCI, FCC CFR, Anatel |
