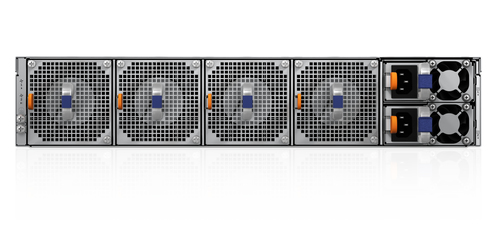

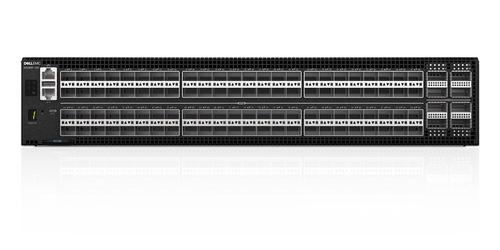

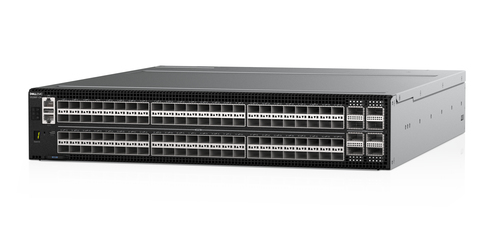

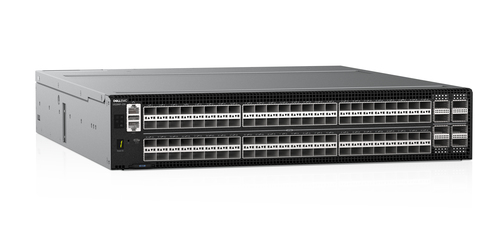

S-Series S5296F-ON Managed L2/L3 2U Black
Model S5296F-ONPart no. S5296F-ONFEAN 884116417514
50 specifications
- Memory16000 MB
- Type2U
- Weight15.1 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity0
Overview
- Memory
- 16000 MB
- Type
- 2U
- Weight
- 15.1 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 0
- Brand
- Dell
- Category
- Network Switch
- Model
- S5296F-ON
- Part numbers
- S5296F-ONF, S5296F-ONR
- EAN / UPC
- 884116417514, 884116417521
- Also known as
- DELL S-Series S5296F-ON Managed L2/L3 2U Black
Specifications
50 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | No |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 96 |
| Console port | RJ-45 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3x |
| 10G support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
Optical fiber
| Specification | Value |
|---|---|
| Switching optical modules type | 100 Gigabit Ethernet |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 3200 Gbit/s |
| Packet buffer memory | 32 MB |
Security
| Specification | Value |
|---|---|
| Security algorithms | 802.1x RADIUS, AES, EAP |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | CLI, SNMP, REST, API’s |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 2U |
| Product colour | Black |
| LED indicators | Yes |
| Number of fans | 4 fan(s) |
| Ventilation system | Front-to-back airflow |
Performance
| Specification | Value |
|---|---|
| Internal memory | 16000 MB |
| Minimum system requirements | Linux Kernel 4.9 |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 457 W |
| Power consumption (max) | 893 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 3047 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 442 mm |
| Depth | 511 mm |
| Height | 87 mm |
| Weight | 15.1 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS |
