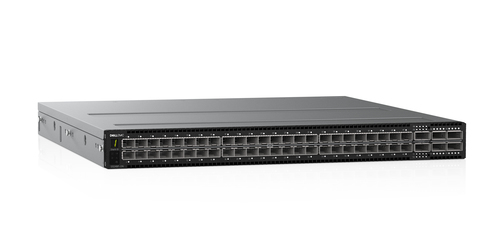

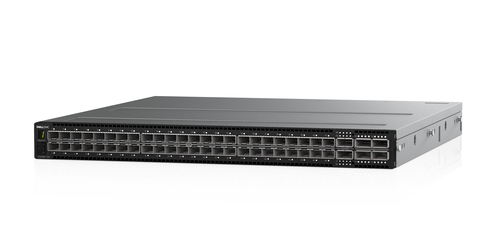

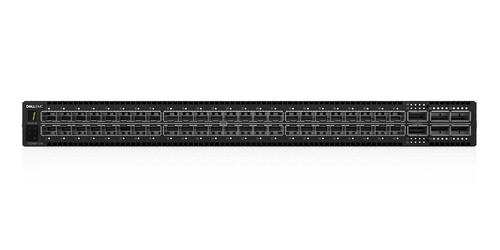

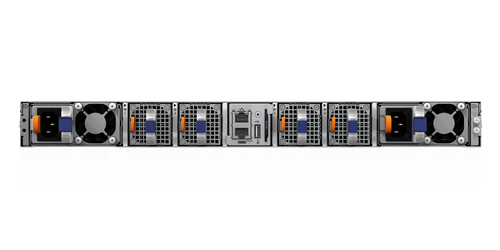

S-Series S5248F-ON Managed L2/L3 1U Black
Model S5248F-ONPart no. DNS5248F_CUSTOMER-READYEAN 884116417477
73 specifications
- Memory16000 MB
- Type1U
- Weight9.7 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity0
Overview
- Memory
- 16000 MB
- Type
- 1U
- Weight
- 9.7 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 0
- Brand
- Dell
- Category
- Network Switch
- Model
- S5248F-ON
- Part numbers
- DNS5248F_CUSTOMER-READY, DNS5248F_ENTRY-LEVEL, DNS5248F_INDUSTRY-STANDARD, 210-APEW, S5248F-ONR, 210-APEZ +12 more
- EAN / UPC
- 884116417477, 884116330936, 884116418887, 884116485384 +3 more
- Also known as
- DELL S-Series S5248F-ON Managed L2/L3 1U Black
Specifications
73 specifications in 17 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| MIB support | IP MIB IP Forward MIB Host Resources MIB IF MIB LLDP EXT1/3 MIB Entity MIB |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | No |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Fiber optic connector | QSFP-DD, QSFP28-DD, QSFP28, SFP28 |
| Console port | RJ-45 |
| QSFP28 ports quantity | 4 |
| SFP28 ports quantity | 48 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3x |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| IPv4 routes | 128 |
| IPv6 routes | 64 |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
| Number of VLANs | 4000 |
Optical fiber
| Specification | Value |
|---|---|
| Switching optical modules type | 100 Gigabit Ethernet |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 2000 Gbit/s |
| Throughput | 1500 Mpps |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 32 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP relay, DHCP server |
| Security algorithms | 802.1x RADIUS, AES, EAP |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | CLI, SNMP, REST, API’s |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Number of fans | 4 fan(s) |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Internal memory | 16000 MB |
| Compatible operating systems | Debian Linux version 9 Linux Kernel 4.9 OS10 |
| Minimum system requirements | Linux Kernel 4.9 |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| AC input voltage | 250 V |
| AC input frequency | 50/60 Hz |
| Input current | 12 A |
| Power consumption (typical) | 400 W |
| Power consumption (max) | 602 W |
| Power cable length | 2 m |
| Power cable connector 1 | C13 coupler |
| Power cable connector 2 | C14 coupler |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Packaging content | Power Cord, 250V, 2 meter, C13-C14, Argentina Only |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 2054 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 434 mm |
| Depth | 460 mm |
| Height | 44 mm |
| Weight | 9.7 kg |
Carbon footprint
| Specification | Value |
|---|---|
| Carbon emissions, end-of-life (kg of CO2e) | 0.01 |
| Total carbon emissions, standard deviation (kg of CO2e) | 3326 |
| Total carbon footprint (kg of CO2e) | 5957 |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS |
