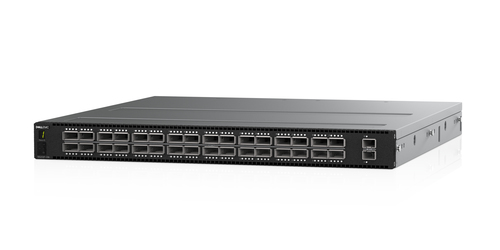

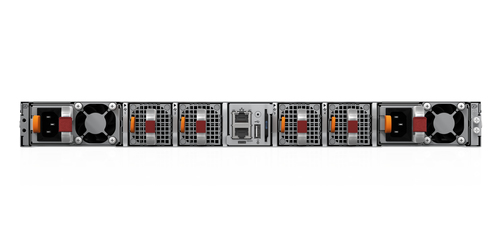

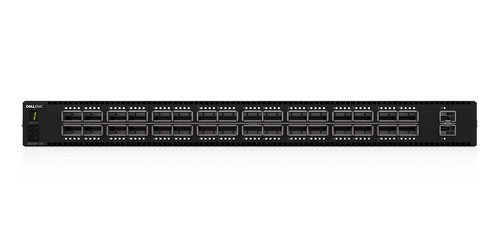

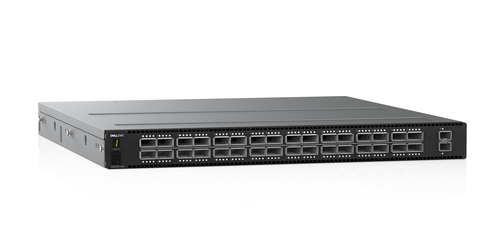

S-Series S5232F-ON Managed L2/L3 1U Black
Model S5232F-ONPart no. S5232F-ONFEAN 5397184478509
62 specifications
- Memory32 MB
- Storage64 GB
- Type1U
- Weight9.8 kg
- ColourBlack
- Switch typeManaged
Overview
- Memory
- 32 MB
- Storage
- 64 GB
- Type
- 1U
- Weight
- 9.8 kg
- Colour
- Black
- Switch type
- Managed
- Brand
- Dell
- Category
- Network Switch
- Model
- S5232F-ON
- Part numbers
- S5232F-ONF, 210-APHJ, 210-APHM, S5232F-ONR, 210-APHK-6X45, APHK-6X45 +2 more
- EAN / UPC
- 5397184478509, 884116417439, 884116417446
- Also known as
- DELL S-Series S5232F-ON Managed L2/L3 1U Black
Specifications
62 specifications in 17 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Configuring Location Settings (CLI) | Yes |
| MIB support | IP, IF, LLDP EXT1/3, LAG, Dell-Vendor, TCP, UDP, SNMPv2, ETHERLIKE, SFLOW, PFC |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | No |
| SFP+ module slots quantity | 2 |
| Fiber ports quantity | 32 |
| Fiber optic connector | QSFP28 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3x |
| 10G support | Yes |
| Port mirroring | Yes |
| Address Resolution Protocol (ARP) entries (max) | 128000 |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
Optical fiber
| Specification | Value |
|---|---|
| Switching optical modules type | 100 Gigabit Ethernet |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 160000 entries |
| Switching capacity | 3200 Gbit/s |
| Packet buffer memory | 32 MB |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) IPv4 entries | 128000 |
| Access Control List (ACL) IPv6 entries | 64000 |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | CLI, SNMP, REST, API’s |
| GARP VLAN Registration Protocol (GVRP) | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Display type | LED |
| Number of fans | 4 fan(s) |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Internal memory | 32 MB |
| List of RFCs | IP, IPv4, IPv6, RIP, OSPF, IS-IS, BGP |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 445 W |
| Power consumption (max) | 635 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Total storage capacity | 64 GB |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 2167 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 434 mm |
| Depth | 460 mm |
| Height | 44 mm |
| Weight | 9.8 kg |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Carbon footprint
| Specification | Value |
|---|---|
| Carbon emissions, end-of-life (kg of CO2e) | 0.01 |
| Carbon emissions, energy usage (kg of CO2e) | 6195.02 |
| Carbon emissions, logistics (kg of CO2e) | 28.79 |
| Total carbon emissions, standard deviation (kg of CO2e) | 3862 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 577.98 |
| Total carbon footprint (kg of CO2e) | 6773 |
