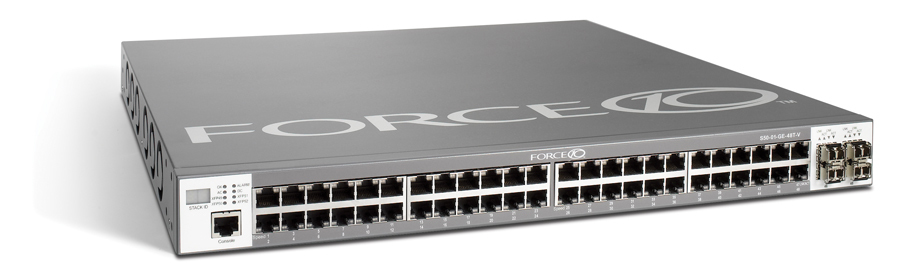

Dell Force10 S50V-FTOS-PoE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Silver

Dell Force10 S50V-FTOS-PoE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Silver

Model S50V-FTOS-PoEPart no. 210-38692

49 specifications
  • Noise62.2 dB
  • Type1U
  • Weight7.1 kg
  • ColourSilver
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity48
See all specifications

Overview

Noise
62.2 dB
Type
1U
Weight
7.1 kg
Colour
Silver
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
48
Brand
Dell
Model
S50V-FTOS-PoE
Part number
210-38692
Also known as
DELL Force10 S50V-FTOS-PoE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Silver

Specifications

49 specifications in 15 groups

Management features

Switch typeManaged
Switch layerL2/L3
System event logYes
MIB supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP module slots quantity4
Console portRJ-45

Network

Networking standardsIEEE 802.1ab, IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ak, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportYes
Copper ethernet cabling technology1000BASE-T, 1000BASE-TX, 100BASE-T, 100BASE-TX, 10BASE-T, 10GBASE-CX4, 10GBASE-T
IP routingYes
Flow control supportYes
Link aggregationYes
Number of VLANs1024

Optical fiber

Fiber ethernet cabling technology10GBASE-CX4

Data transmission

MAC address table32000 entries
Switching capacity288 Gbit/s
Throughput131 Mpps
Latency (1 Gbps)5 µs
Number of queues4

Security

IGMP snoopingYes
Security algorithms802.1x RADIUS

Multicast features

Multicast supportYes

Protocols

Management protocolsIGMPv1, IGMPv2, IGMPv3, SMIv1, SMIv2, SNMPv1, SNMPv2, SNMPv3, OSPFv2
Supported network protocolsIPv4, IPv6, UDP, TCP, FTP, Telnet, MD5, TFTP, ICMP, ARP, DNS, NTPv3, CIDR, BOOTP, DHCP, VRRP, ICMPv6, RIPv1, RIPv2, NSSA, LSA, RMON, LLDP

Design

Rack mountingYes
StackableYes
Form factor1U
Product colourSilver
LED indicatorsYes
SafetyUL/CSA, EN, IEC, FDA

Performance

Noise level62.2 dB
Mean time between failures (MTBF)130482 h

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current6.5 A
Power consumption (typical)146 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Total Power over Ethernet (PoE) budget790 W

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 85%
Heat dissipation497 BTU/h

Weight & dimensions

Width440 mm
Depth425 mm
Height43 mm
Weight7.1 kg

Certificates

CertificationAS/NZS CISPR 22, ICES-003, EN, VCCI, FCC, RoHS
