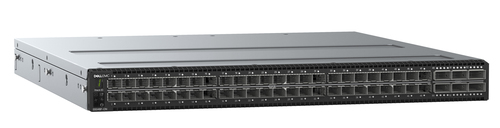

Dell S-Series S5048F-ON Managed L2 1U Black
Model S5048F-ONPart no. 210-ANRHEAN 5397184074497
56 specifications
- Memory8000 MB
- Noise59.6 dB
- Type1U
- Weight9.98 kg
- ColourBlack
- Switch typeManaged
Overview
- Memory
- 8000 MB
- Noise
- 59.6 dB
- Type
- 1U
- Weight
- 9.98 kg
- Colour
- Black
- Switch type
- Managed
- Brand
- Dell
- Category
- Network Switch
- Model
- S5048F-ON
- Part numbers
- 210-ANRH, DNS5048F, 210-ANRK, 210-ANRG, 210-ANRJ
- EAN / UPC
- 5397184074497
- Also known as
- DELL S-Series S5048F-ON Managed L2 1U Black
Specifications
56 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| ARP inspection | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports type | No |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 48 |
| QSFP+ module slots quantity | 6 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 10GBASE-T, 100BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-TX |
| Full duplex | Yes |
| Address Resolution Protocol (ARP) entries (max) | 82000 |
| Flow control support | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 132000 entries |
| Switching capacity | 3600 Gbit/s |
| Forwarding rate | 2.678 Mpps |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Packet buffer memory | 22 MB |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
| Security algorithms | 802.1x RADIUS, AES, EAP |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| IPv4 multicast entries | 128000 |
| IPv6 multicast entries | 64000 |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SMIv1, SMIv2, SNMPv1, SNMPv2, SNMPv3, IGMPv1, IGMPv2, IGMPv3, OSPF, OSPFv2, OSPFv3, RIPv1, RIPv2, RMON |
| Supported network protocols | IPv4, IPv6, LLDP, STP, PFC, ETS, MSTP, RSTP, UDP, TCP, Telnet, FTP, ICMP, ARP, DNS, NTPv3, CIDR, BOOTP, VRRP, MLD, MLDv2, TACACS, SSH, BGPv6, IS-IS, MD5, BGP-4, MSDP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| Safety | UL/CSA 60950-L, EN 60950-1, IEC 60950-1, EN 60825-1, EN 60825-2, FDA 21 CFR 1040.10/1040.11 |
Performance
| Specification | Value |
|---|---|
| Internal memory | 8000 MB |
| Noise level | 59.6 dB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 5.73 A |
| Power consumption (typical) | 288 W |
| Power consumption (max) | 573 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 1956 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 434 mm |
| Depth | 457 mm |
| Height | 44 mm |
| Weight | 9.98 kg |
