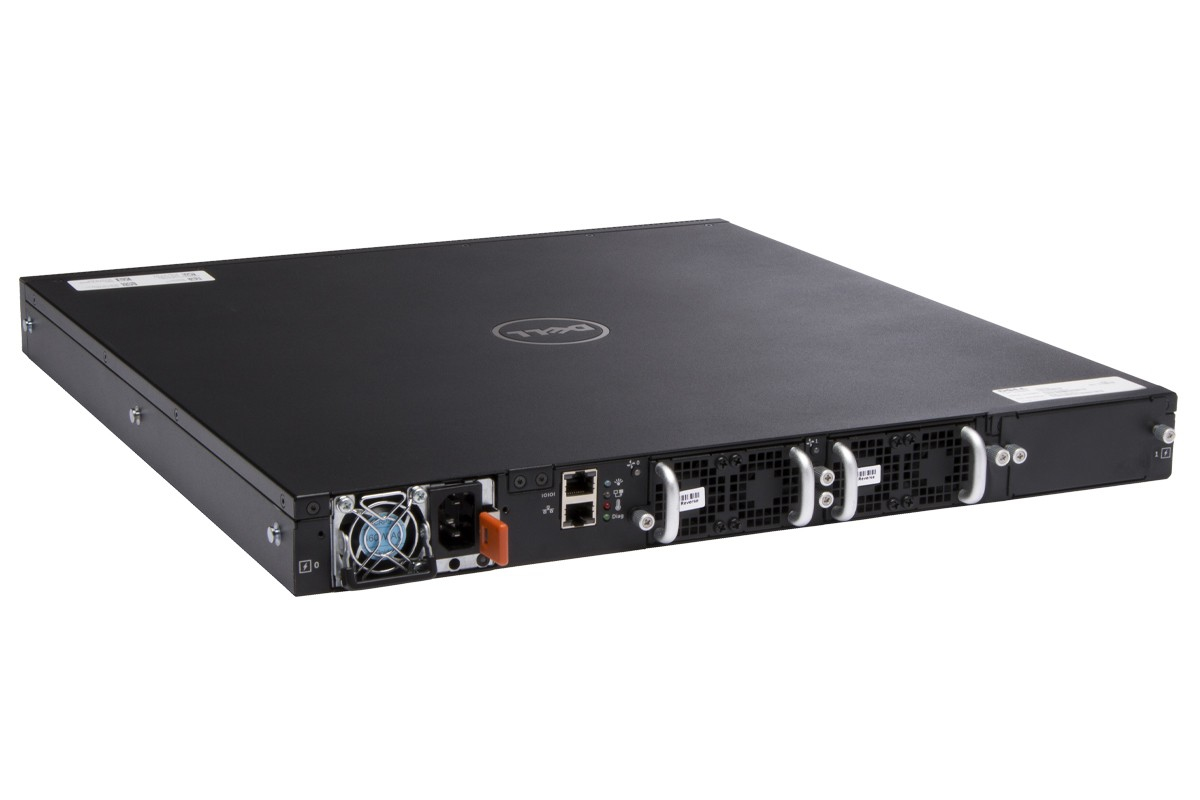

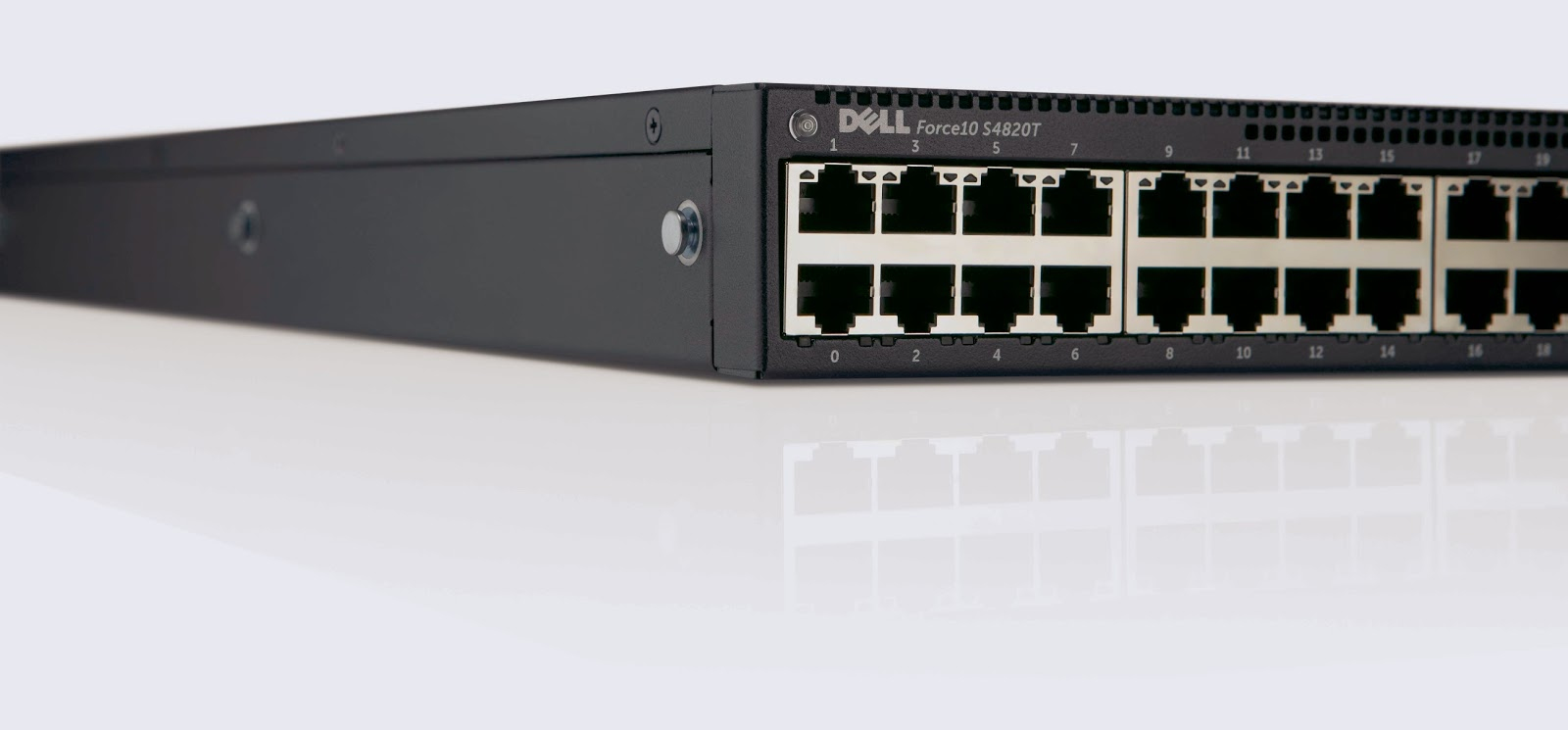

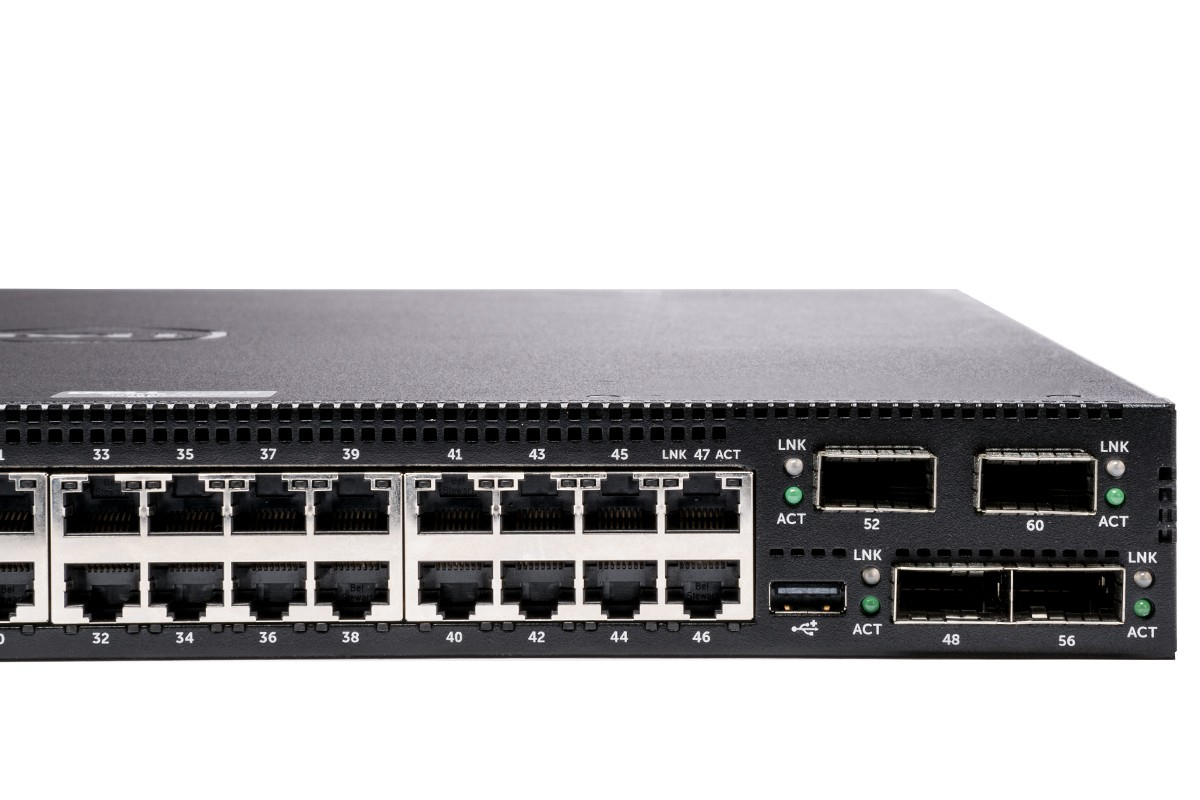

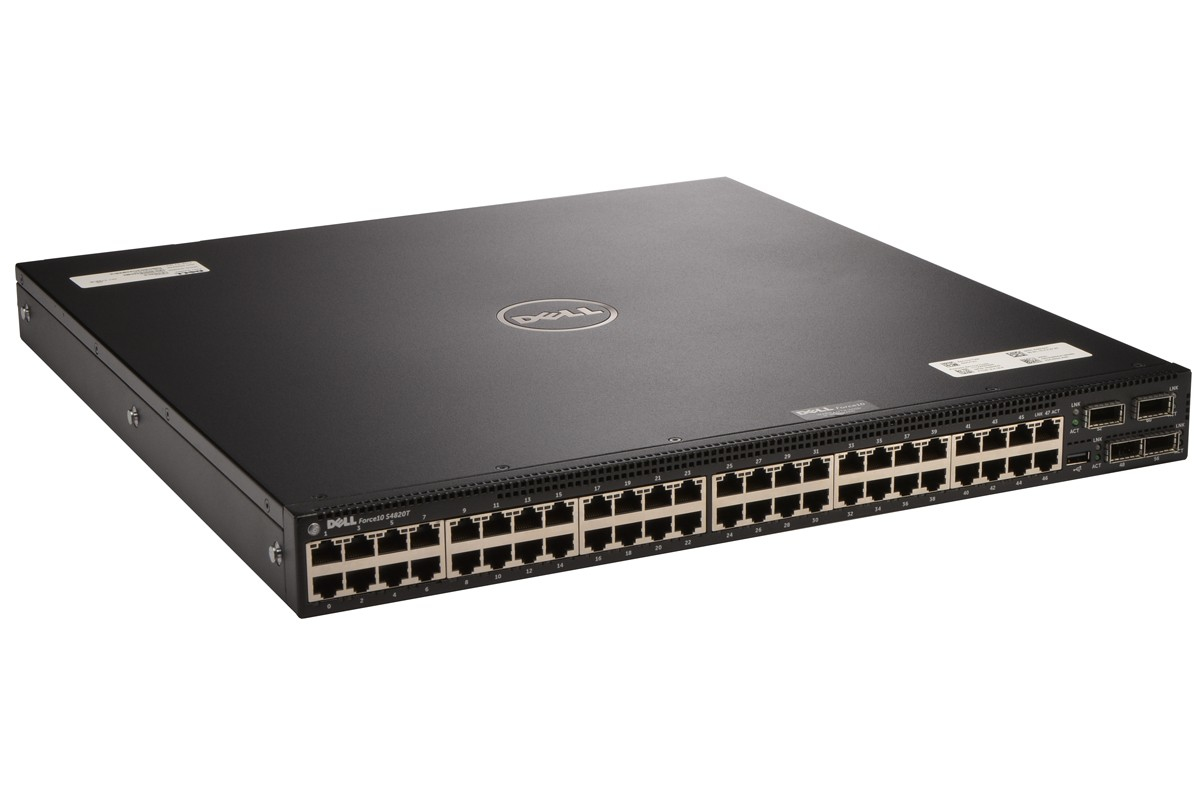

Dell Force10 S4820T Managed L2
10G Ethernet (100/1000/10000) 1U Black
Model S4820TPart no. 210-AADREAN 5397063839315
42 specifications
- Memory2000 MB
- Noise65 dB
- Type1U
- Weight9.86 kg
- ColourBlack
- Switch typeManaged
Overview
- Memory
- 2000 MB
- Noise
- 65 dB
- Type
- 1U
- Weight
- 9.86 kg
- Colour
- Black
- Switch type
- Managed
- Brand
- Dell
- Category
- Network Switch
- Model
- S4820T
- Part numbers
- 210-AADR, 210-AADO, 210-AADP, 210-AADQ
- EAN / UPC
- 5397063839315, 5397063839308, 5397063839322, 5397063839292
- Also known as
- DELL Force10 S4820T Managed L2 10G Ethernet (100/1000/10000) 1U Black
Specifications
42 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Console port | RJ-45 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T |
| Full duplex | Yes |
| IP routing | Yes |
| Routing entries | 16000 |
| IP address table | 8000 |
| Link aggregation | Yes |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 128000 entries |
| Throughput | 960 Mpps |
| Latency (10 Gbps) | 3.3 µs |
| Number of queues | 4 |
| Packet buffer memory | 9 MB |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| Number of fans | 2 fan(s) |
Performance
| Specification | Value |
|---|---|
| Internal memory | 2000 MB |
| Noise level | 65 dB |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 4.2 A |
| Output power | 460 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 434 mm |
| Depth | 460 mm |
| Height | 43.5 mm |
| Weight | 9.86 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
