Dell Force10 S4810P Managed L2/L3
10G Ethernet (100/1000/10000) 1U Black
Model S4810PPart no. 210-38654EAN 5397063839353
49 specifications
- Memory2048 MB
- Noise59.6 dB
- Type1U
- Weight6.54 kg
- ColourBlack
- Switch typeManaged
Overview
- Memory
- 2048 MB
- Noise
- 59.6 dB
- Type
- 1U
- Weight
- 6.54 kg
- Colour
- Black
- Switch type
- Managed
- Brand
- Dell
- Category
- Network Switch
- Model
- S4810P
- Part numbers
- 210-38654, 210-39401, 210-38655, 210-39399
- EAN / UPC
- 5397063839353, 5397063839346
- Also known as
- DELL Force10 S4810P Managed L2/L3 10G Ethernet (100/1000/10000) 1U Black
Specifications
49 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| MIB support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 48 |
| Fiber optic connector | QSFP+, SFP+ |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 10GBASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Routing entries | 16000 |
| Flow control support | Yes |
| IP address table | 8000 |
| Link aggregation | Yes |
| VLAN support | Yes |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 128000 entries |
| Switching capacity | 1280 Gbit/s |
| Throughput | 960 Mpps |
| Latency (10 Gbps) | 0.8 µs |
| Number of queues | 4 |
| Packet buffer memory | 9 MB |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| Number of fans | 2 fan(s) |
Performance
| Specification | Value |
|---|---|
| Internal memory | 2048 MB |
| Noise level | 59.6 dB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 220 W |
| Power consumption (max) | 350 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 1194 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 460 mm |
| Height | 44 mm |
| Weight | 6.54 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS |
What people say
Reviews & ratings
Dell Force10 S4810P Managed L2/L3
No reviews yet
Be the first to tell others how Dell Force10 S4810P Managed L2/L3 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Dell Force10 S4810P Managed L2/L3
All network switch comparisons- Dell Force10 S4810P Managed L2/L3 vsDell PowerConnect N3048 Managed L3 Gigabit Ethernet (10/100/1000) 1U BlackCompare specs
- Dell Force10 S4810P Managed L2/L3 vsDell PowerConnect N2048 Managed L3 Gigabit Ethernet (10/100/1000) 1U BlackCompare specs
- Dell Force10 S4810P Managed L2/L3 vsDell Force10 S50V-FTOS-PoE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U SilverCompare specs

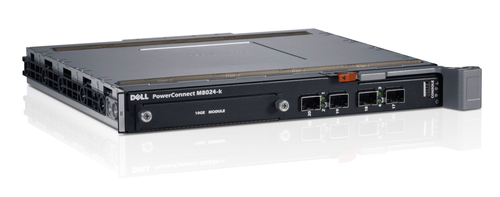

- Dell Force10 S4810P Managed L2/L3 vsDell PowerConnect M8024-k ManagedCompare specs
