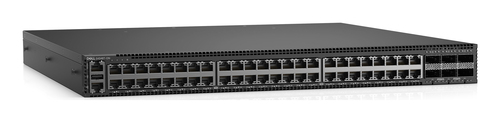

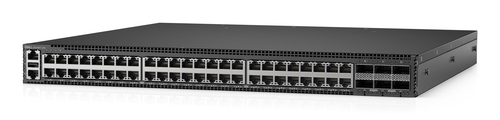

S-Series S4348T-ON Managed L2/L3
10G Ethernet (100/1000/10000) 1U Black
Model S4348T-ONPart no. S4348T264BRZ
52 specifications
- Type1U
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
- Networking standardsIEEE 1588v2
- MAC address table224000 entries
Overview
- Type
- 1U
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Networking standards
- IEEE 1588v2
- MAC address table
- 224000 entries
- Brand
- Dell
- Category
- Network Switch
- Model
- S4348T-ON
- Part number
- S4348T264BRZ
- Also known as
- DELL S-Series S4348T-ON Managed L2/L3 10G Ethernet (100/1000/10000) 1U Black
Specifications
52 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Number of management ports | 1 pc(s) |
| Fiber optic connector | SFP+ |
| Console port | RJ-45/USB Type-A |
| QSFP28 ports quantity | 6 |
| Power cables quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 1588v2 |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T |
| IPv6 routes | 32000 |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Multicast VLAN |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 224000 entries |
| Switching capacity | 2160 Gbit/s |
| Throughput | 1001.7 Mpps |
| Packet buffer memory | 32 MB |
Security
| Specification | Value |
|---|---|
| Security algorithms | SNMP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| AC input voltage | 90 - 240 V |
| AC input frequency | 50/60 Hz |
| Output voltage | 250 V |
| Power consumption (typical) | 222 W |
| Power consumption (max) | 393 W |
| Power cable length | 2 m |
| Power cable connector 1 | NBR14136 |
| Power cable connector 2 | C13 coupler |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Packaging content | Enterprise SONiC Standard 10Gb, 3 years subscription |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 8 - 90% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 3048 - 12000 m |
| Heat dissipation | 986.14 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 438.5 mm |
| Depth | 460 mm |
| Height | 43 mm |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
