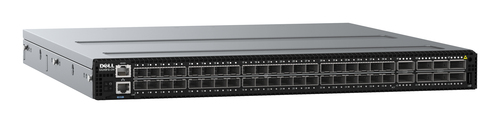

S-Series S4248FB Managed L2/L3 1U Black
Model S4248FBPart no. 210-ANHYEAN 5397184224489
48 specifications
- Memory8000 MB
- Type1U
- Weight9.98 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity0
Overview
- Memory
- 8000 MB
- Type
- 1U
- Weight
- 9.98 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 0
- Brand
- Dell
- Category
- Network Switch
- Model
- S4248FB
- Part number
- 210-ANHY
- EAN / UPC
- 5397184224489
- Also known as
- DELL S-Series S4248FB Managed L2/L3 1U Black
Specifications
48 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | No |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 40 |
| QSFP+ module slots quantity | 2 |
| Console port | RJ-45 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
Optical fiber
| Specification | Value |
|---|---|
| Switching optical modules type | 100 Gigabit Ethernet |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 1600 Gbit/s |
| Forwarding rate | 720 Mpps |
Security
| Specification | Value |
|---|---|
| Security algorithms | IPSec |
Protocols
| Specification | Value |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| Number of fans | 5 fan(s) |
| Ventilation system | Back-to-front airflow |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Internal memory | 8000 MB |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 300 W |
| Power consumption (max) | 600 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 2047 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 434 mm |
| Depth | 462 mm |
| Height | 44 mm |
| Weight | 9.98 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS |
