Dell S-Series S4148T-ON Managed L2/L3
10G Ethernet (100/1000/10000) 1U Black
Model S4148T-ONPart no. 210-ALSN-BR6NEAN 5397184223123
63 specifications
- Memory4000 MB
- Type1U
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
- 10G supportYes
Overview
- Memory
- 4000 MB
- Type
- 1U
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- 10G support
- Yes
- Brand
- Dell
- Category
- Network Switch
- Model
- S4148T-ON
- Part numbers
- 210-ALSN-BR6N, 6NC9P, VHXN0, 87475257, S4148T_1.1, 210-ALSM-3H25 +5 more
- EAN / UPC
- 5397184223123, 884116330899, 884116417804, 884116417811 +1 more
- Also known as
- DELL S-Series S4148T-ON Managed L2/L3 10G Ethernet (100/1000/10000) 1U Black
Specifications
63 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| QSFP+ module slots quantity | 2 |
| Fiber ports quantity | 4 |
| Fiber optic connector | QSFP28 |
| Console port | RJ-45/Micro-USB |
| QSFP28 ports quantity | 4 |
| Power cables quantity | 2 |
| USB 2.0 ports quantity | 1 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 10GBASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| IPv4 routes | 200 |
| IPv6 routes | 130 |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
Optical fiber
| Specification | Value |
|---|---|
| Switching optical modules type | 100 Gigabit Ethernet |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 272000 entries |
| Switching capacity | 1760 Gbit/s |
| Throughput | 1320 Mpps |
| Packet buffer memory | 12 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP relay, DHCP server |
| Access Control List (ACL) | Yes |
| SSH/SSL support | Yes |
| Security algorithms | IPSec |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast MAC address table | 272 entries |
Protocols
| Specification | Value |
|---|---|
| Management protocols | CLI, SNMP, REST, API’s |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Display type | LED |
| Number of fans | 4 fan(s) |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Internal memory | 4000 MB |
| List of RFCs | IP, IPv4, IPv6, RIP, OSPF, IS-IS, BGP |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 440 W |
| Power cable length | 2 m |
| Power cable connector 1 | NBR14136 |
| Power cable connector 2 | C13 coupler |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 1500 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 431 mm |
| Depth | 457 mm |
| Height | 44 mm |
What people say
Reviews & ratings
Dell S-Series S4148T-ON Managed L2/L3
No reviews yet
Be the first to tell others how Dell S-Series S4148T-ON Managed L2/L3 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Dell S-Series S4148T-ON Managed L2/L3
All network switch comparisons- Dell S-Series S4148T-ON Managed L2/L3 vsDell S-Series S5048F-ON Managed L2 1U BlackCompare specs
- Dell S-Series S4148T-ON Managed L2/L3 vsDell S-Series S4112T-ON Managed L2/L3Compare specs
- Dell S-Series S4148T-ON Managed L2/L3 vsDell S5148F-ON Managed L2/L3 BlackCompare specs
- Dell S-Series S4148T-ON Managed L2/L3 vsDell 1108P-ON Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U BlackCompare specs
- Dell S-Series S4148T-ON Managed L2/L3 vsAllied Telesis AT-x550-18XSPQm-50 ManagedCompare specs
- Dell S-Series S4148T-ON Managed L2/L3 vsAllied Telesis x220-28GS Managed L3 1U GreyCompare specs

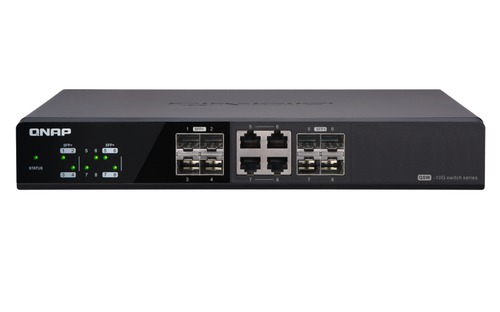

- Dell S-Series S4148T-ON Managed L2/L3 vsQNAP QSW-804-4C network switch Unmanaged BlackCompare specs

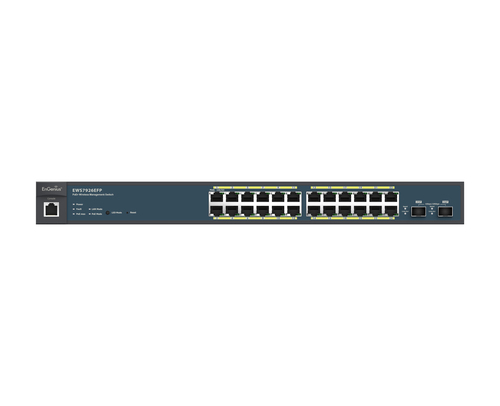

- Dell S-Series S4148T-ON Managed L2/L3 vsEnGenius EWS7926EFP Wireless Managed L2 switch 24-port GbE PoE+Compare specs
