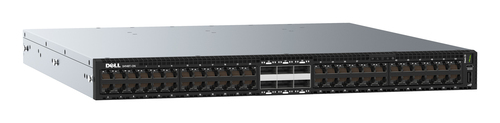

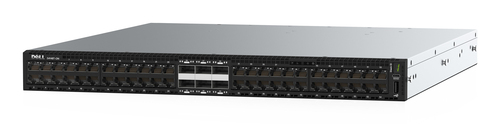

S-Series S4148T Managed L2/L3
10G Ethernet (100/1000/10000) 1U Black
Model S4148TPart no. S4148T264EAN 5397184364581
65 specifications
- Memory4000 MB
- Type1U
- OSOS10
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
Overview
- Memory
- 4000 MB
- Type
- 1U
- OS
- OS10
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Brand
- Dell
- Category
- Network Switch
- Model
- S4148T
- Part numbers
- S4148T264, 210-ALSL, S4148T_1.5, S4148T_1.6, S4148T_1.7, S4148T_1.5Q2 +8 more
- EAN / UPC
- 5397184364581, 884116418849, 884116465751, 884116432302
- Also known as
- DELL S-Series S4148T Managed L2/L3 10G Ethernet (100/1000/10000) 1U Black
Specifications
65 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| QSFP+ module slots quantity | 2 |
| Fiber ports quantity | 4 |
| Fiber optic connector | QSFP28 |
| Console port | RJ-45/Micro-USB |
| QSFP28 ports quantity | 4 |
| USB 2.0 ports quantity | 1 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 10GBASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| IPv4 routes | 200 |
| IPv6 routes | 130 |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
Optical fiber
| Specification | Value |
|---|---|
| Switching optical modules type | 100 Gigabit Ethernet |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 272000 entries |
| Switching capacity | 1760 Gbit/s |
| Throughput | 1320 Mpps |
| Packet buffer memory | 12 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP relay, DHCP server |
| Access Control List (ACL) | Yes |
| SSH/SSL support | Yes |
| Security algorithms | IPSec |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast MAC address table | 272 entries |
Protocols
| Specification | Value |
|---|---|
| Management protocols | CLI, SNMP, REST, API’s |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Display type | LED |
| Number of fans | 4 fan(s) |
Performance
| Specification | Value |
|---|---|
| Operating system installed | OS10 |
| Built-in processor | Yes |
| Internal memory | 4000 MB |
| List of RFCs | IP, IPv4, IPv6, RIP, OSPF, IS-IS, BGP |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 440 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Packaging content | Power Cord, 250V, 12A, 2 Meters, C13/C14 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 1500 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 431 mm |
| Depth | 457 mm |
| Height | 44 mm |
Carbon footprint
| Specification | Value |
|---|---|
| Carbon emissions, end-of-life (kg of CO2e) | 0.01 |
| Total carbon emissions, standard deviation (kg of CO2e) | 88 |
| Total carbon footprint (kg of CO2e) | 477 |
