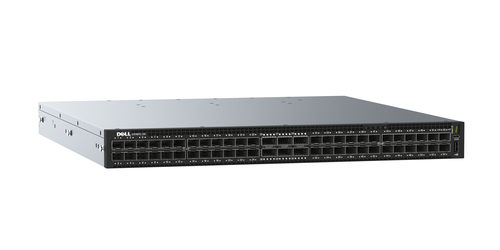

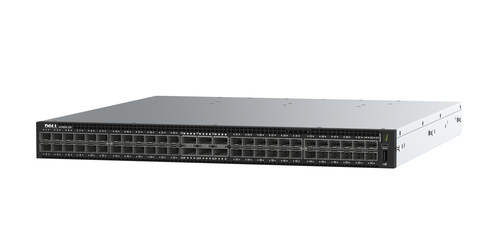

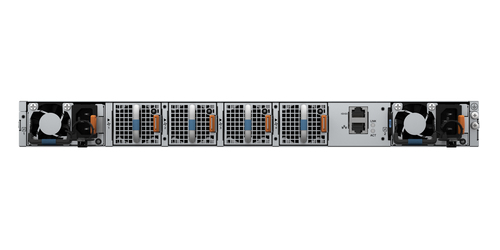

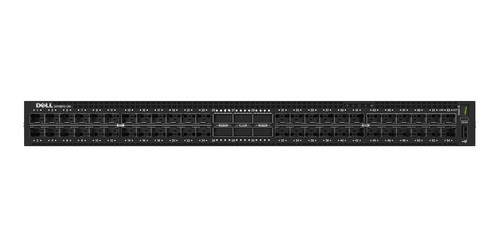

S-Series S4148FE-ON Managed L2/L3 1U Black
Model S4148FE-ONPart no. 210-ALSG
56 specifications
- Memory4000 MB
- Type1U
- Weight9.46 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity0
Overview
- Memory
- 4000 MB
- Type
- 1U
- Weight
- 9.46 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 0
- Brand
- Dell
- Category
- Network Switch
- Model
- S4148FE-ON
- Part numbers
- 210-ALSG, 210-ALSF, 210-ALSO, 210-ALSP
- Also known as
- DELL S-Series S4148FE-ON Managed L2/L3 1U Black
Specifications
56 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Configuring Location Settings (CLI) | Yes |
| MIB support | IP MIB, IP Forward MIB, Host Resources MIB, IF MIB, LLDP MIB, Entity MIB, LAG MIB, Dell-Vendor MIB, TCP MIB, UDP MIB, SNMPv2 MIB |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | No |
| Gigabit Ethernet (copper) ports quantity | 1 |
| SFP+ module slots quantity | 48 |
| QSFP+ module slots quantity | 2 |
| Console port | RJ-45/Micro-USB |
| USB 2.0 ports quantity | 1 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Address Resolution Protocol (ARP) entries (max) | 200000 |
| Flow control support | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 272000 entries |
| Switching capacity | 1760 Gbit/s |
| Throughput | 1320 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9416 |
| Packet buffer memory | 12 MB |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | CLI, SNMP, REST, API’s |
| GARP VLAN Registration Protocol (GVRP) | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Ventilation system | Front-to-back airflow |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Internal memory | 4000 MB |
| List of RFCs | IP, IPv4, IPv6, RIP, OSPF, IS-IS, BGP, Multicast, Security, Data Center Bridging, Network Management |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 240 W |
| Power consumption (max) | 400 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Latency | 850 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 1364 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 431 mm |
| Depth | 457 mm |
| Height | 44 mm |
| Weight | 9.46 kg |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
