Dell S-Series S4112T-ON Managed L2/L3
10G Ethernet (100/1000/10000) 1U Black
Model S4112T-ONPart no. 8MD6DEAN 5397184364567
57 specifications
- Type1U
- Weight3.83 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity12
- 10G supportYes
Overview
- Type
- 1U
- Weight
- 3.83 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 12
- 10G support
- Yes
- Brand
- Dell
- Category
- Network Switch
- Model
- S4112T-ON
- Part numbers
- 8MD6D, DN_S4112T_PS, DN_S4112TANV1, 210-AOYV, 210-BJPQ-SPX1, S4112T264BRZ +2 more
- EAN / UPC
- 5397184364567, 884116417668, 5397184222799, 884116417675
- Also known as
- DELL S-Series S4112T-ON Managed L2/L3 10G Ethernet (100/1000/10000) 1U Black
Specifications
57 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Configuring Location Settings (CLI) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Fiber optic connector | QSFP28 |
| Console port | RJ-45 |
| QSFP28 ports quantity | 3 |
| Power cables quantity | 2 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| IPv4 routes | 200 |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
Optical fiber
| Specification | Value |
|---|---|
| Switching optical modules type | 100 Gigabit Ethernet |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 272000 entries |
| Switching capacity | 840 Gbit/s |
| Throughput | 630 Mpps |
| Latency (10-100 Mbps) | 2500 µs |
| Jumbo frames support | Yes |
| Packet buffer memory | 12 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCPv6 relay, DHCPv6 server |
| Access Control List (ACL) | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast MAC address table | 272 entries |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Number of fans | 3 fan(s) |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 120 W |
| Power consumption (max) | 200 W |
| Power cable length | 2 m |
| Power cable connector 1 | NBR14136 |
| Power cable connector 2 | C13 coupler |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 682 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 209 mm |
| Depth | 450 mm |
| Height | 41.2 mm |
| Weight | 3.83 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Compare Dell S-Series S4112T-ON Managed L2/L3
Compare any products- Dell S-Series S4112T-ON Managed L2/L3 vsDell PowerConnect N3048EP L3 Gigabit Ethernet (10/100/1000) 1U BlackCompare specs
- Dell S-Series S4112T-ON Managed L2/L3 vsDell S-Series S4148U-ON Managed L2/L3 1UCompare specs

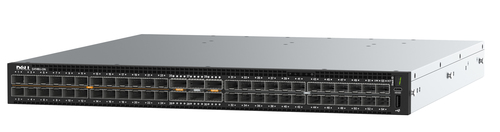

- Dell S-Series S4112T-ON Managed L2/L3 vsDell S-Series S5048F-ON Managed L2 1U BlackCompare specs
- Dell S-Series S4112T-ON Managed L2/L3 vsDell S-Series S4148T-ON Managed L2/L3Compare specs
- Dell S-Series S4112T-ON Managed L2/L3 vsFujitsu G610 Managed Gigabit Ethernet (10/100/1000) 1U SilverCompare specs

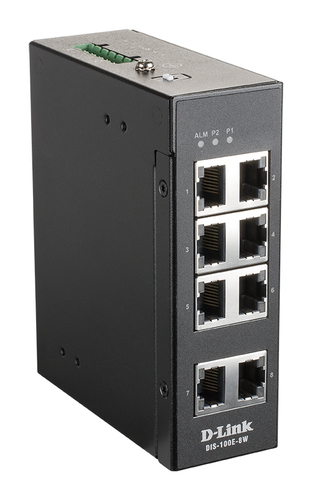

- Dell S-Series S4112T-ON Managed L2/L3 vsD-Link 8-Port Unmanaged Industrial Switch withCompare specs

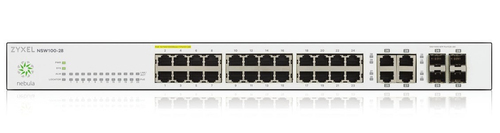

- Dell S-Series S4112T-ON Managed L2/L3 vsZyxel NSW100-28-GB0101F network switch Managed L2 Gigabit Ethernet (10/100/1000) Black, GreyCompare specs

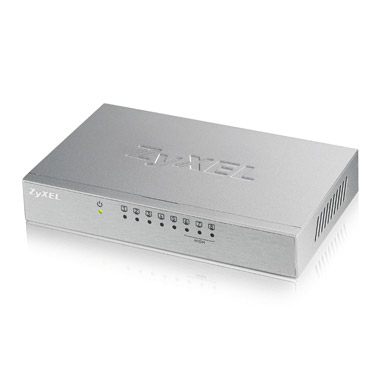

- Dell S-Series S4112T-ON Managed L2/L3 vsZyxel ES 108Av3Compare specs
