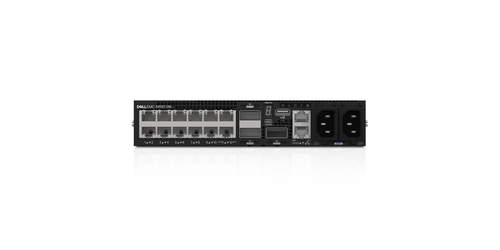

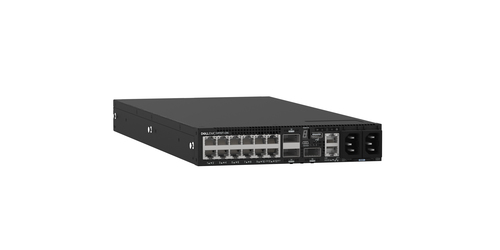

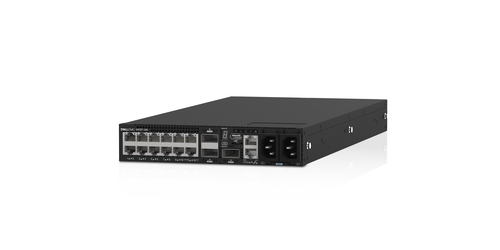

S4112T Managed L2/L3
10G Ethernet (100/1000/10000) 1U Black
Model S4112TPart no. S4112T264EAN 884116465713
66 specifications
- Type1U
- OSOS10
- Weight3.83 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity12
Overview
- Type
- 1U
- OS
- OS10
- Weight
- 3.83 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 12
- Brand
- Dell
- Category
- Network Switch
- Model
- S4112T
- Part numbers
- S4112T264, S4112T_1.4, DN_S4112TANV2, DN_S4112TARV2, S4112T_1.5, S4112TSNSFY22Q4MX +21 more
- EAN / UPC
- 884116465713, 884116485308, 884116486268, 884116432265 +3 more
- Also known as
- DELL S4112T Managed L2/L3 10G Ethernet (100/1000/10000) 1U Black
Specifications
66 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Configuring Location Settings (CLI) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Fiber optic connector | QSFP28 |
| Console port | RJ-45 |
| QSFP28 ports quantity | 3 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| IPv4 routes | 200 |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
Optical fiber
| Specification | Value |
|---|---|
| Switching optical modules type | 100 Gigabit Ethernet |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 272000 entries |
| Switching capacity | 840 Gbit/s |
| Throughput | 625 Mpps |
| Latency (10-100 Mbps) | 2500 µs |
| Jumbo frames support | Yes |
| Packet buffer memory | 12 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCPv6 relay, DHCPv6 server |
| Access Control List (ACL) | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast MAC address table | 272 entries |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Number of fans | 3 fan(s) |
Performance
| Specification | Value |
|---|---|
| Operating system installed | OS10 |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 120 W |
| Power consumption (max) | 200 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Packaging content | Power Cord, 250V, 12A, 2 Meters, C13/C14 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 682 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 209 mm |
| Depth | 450 mm |
| Height | 41.2 mm |
| Weight | 3.83 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Carbon footprint
| Specification | Value |
|---|---|
| Carbon emissions, end-of-life (kg of CO2e) | 7 |
| Carbon emissions, energy usage (kg of CO2e) | 1360 |
| Carbon emissions, logistics (kg of CO2e) | 119 |
| Carbon emissions, manufacturing (kg of CO2e) | 2388 |
| PAIA version | 1.2.8, 2020 |
| Total carbon emissions, standard deviation (kg of CO2e) | 1220 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 2514 |
| Total carbon footprint (kg of CO2e) | 3880 |
