Dell S-Series S4112F-ON Managed L2+/L3 1U
Model S4112F-ONPart no. S4112F264BRZEAN 5397184364543
47 specifications
- Type1U
- Switch typeManaged
- SFP+ module slots quantity12
- Networking standardsIEEE 802.3
- MAC address table272000 entries
- Access Control List (ACL)Yes
Overview
- Type
- 1U
- Switch type
- Managed
- SFP+ module slots quantity
- 12
- Networking standards
- IEEE 802.3
- MAC address table
- 272000 entries
- Access Control List (ACL)
- Yes
- Brand
- Dell
- Category
- Network Switch
- Model
- S4112F-ON
- Part numbers
- S4112F264BRZ, DNS4112, DN_S4112FARV1, DN_S4112F_PS, DNS4112F_INDUSTRY-STANDARD, DN_S4112FANV1 +4 more
- EAN / UPC
- 5397184364543
- Also known as
- DELL S-Series S4112F-ON Managed L2+/L3 1U
Specifications
47 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+/L3 |
| Quality of Service (QoS) support | Yes |
| Configuring Location Settings (CLI) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| SFP+ module slots quantity | 12 |
| Console port | RJ-45/Micro-USB |
| QSFP28 ports quantity | 3 |
| Power cables quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3 |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| IPv4 routes | 200 |
| IPv6 routes | 130 |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Multicast VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 272000 entries |
| Switching capacity | 840 Gbit/s |
| Throughput | 630 Mpps |
| Jumbo frames | 9216 |
| Packet buffer memory | 12 MB |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast MAC address table | 8000 entries |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Number of fans | 3 fan(s) |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 180 W |
| Power cable connector 1 | NBR14136 |
| Power cable connector 2 | C13 coupler |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 614 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 209 mm |
| Depth | 450 mm |
| Height | 41.2 mm |
What people say
Reviews & ratings
Dell S-Series S4112F-ON Managed L2+/L3 1U
No reviews yet
Be the first to tell others how Dell S-Series S4112F-ON Managed L2+/L3 1U works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Dell S-Series S4112F-ON Managed L2+/L3 1U
All network switch comparisons- Dell S-Series S4112F-ON Managed L2+/L3 1U vsDell PowerConnect S3124 Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U BlackCompare specs
- Dell S-Series S4112F-ON Managed L2+/L3 1U vsDell N3024EF Managed L3 1U BlackCompare specs
- Dell S-Series S4112F-ON Managed L2+/L3 1U vsDell S-Series S4112 Managed L2/L3 1U BlackCompare specs
- Dell S-Series S4112F-ON Managed L2+/L3 1U vsDell Z9100-ON Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U BlackCompare specs

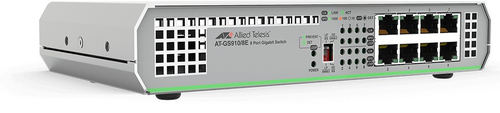

- Dell S-Series S4112F-ON Managed L2+/L3 1U vsAllied Telesis AT-GS910/8E 2330RCompare specs

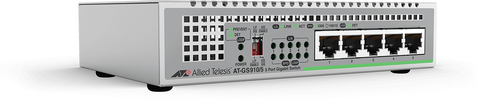

- Dell S-Series S4112F-ON Managed L2+/L3 1U vsAllied Telesis AT-GS910/5 2313RCompare specs

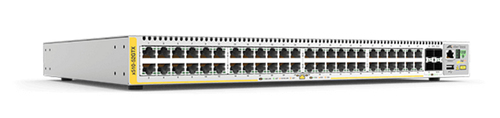

- Dell S-Series S4112F-ON Managed L2+/L3 1U vsAllied Telesis AT-x510-52GTX 1020RCompare specs

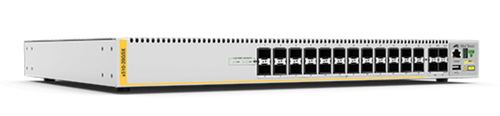

- Dell S-Series S4112F-ON Managed L2+/L3 1U vsAllied Telesis AT-x510-28GSX 1023RCompare specs
